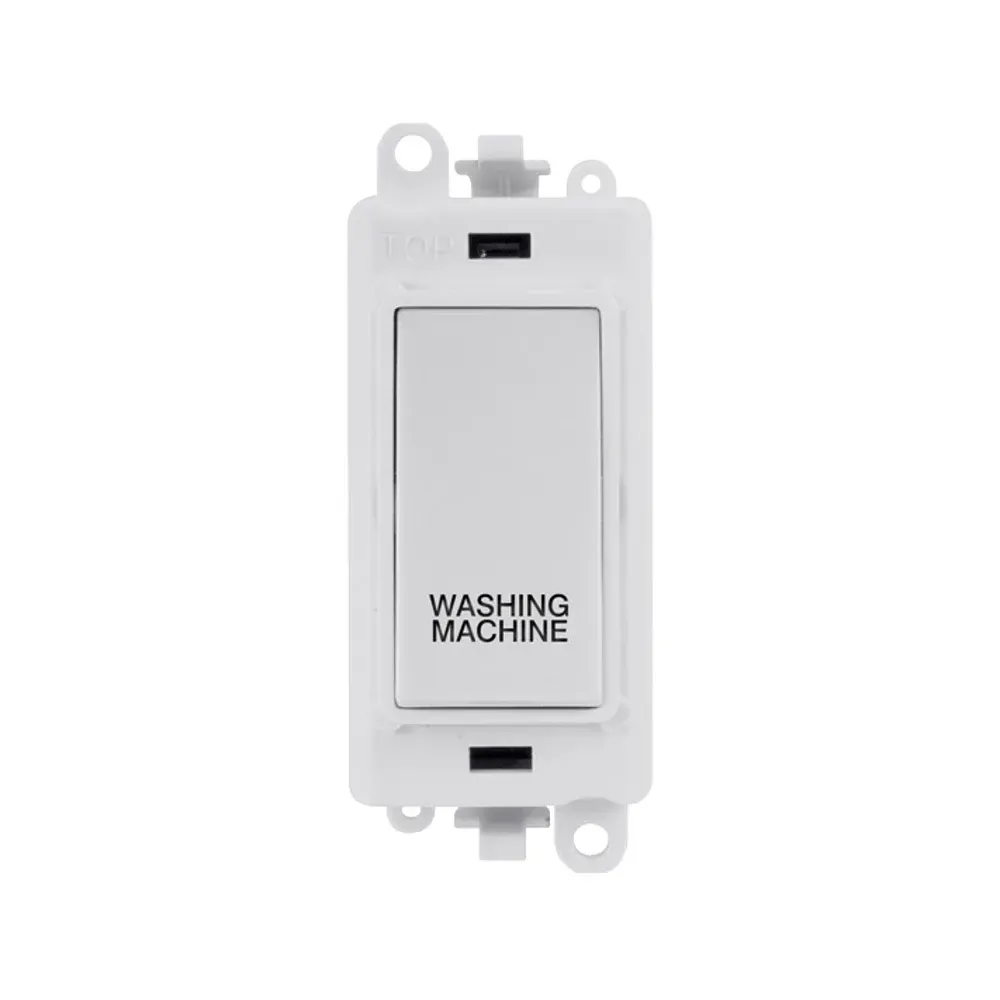

Click GridPro 20A Double Pole Switch Module, 2-Way, Washing Machine, Polar White
Designed for washing machines, this GridPro switch module by Click has a polar white finish. It includes a 2-way switch and is suitable for inductive loads. Backed by a 10-year warranty.
Stock Code
GM2018PWWM
In stock
This product is not available right now. Contact us for more info.
Product Features
-
SKU
GM2018PW-WM
-
Brand
Click
-
Model
GM2018PW-WM
-
Range
GridPro
-
Finish
Polar White
-
Switch
Urea
-
Contacts
Silver on-lay Copper / Brass
-
Warranty
10years
-
Dimensions
24.5mm x 50mm x 22.5mm
-
2 Way Switch
Yes
-
Body & Insert
Nylon
-
Insert Colour
Polar White
-
Switch Finish
Polar White
-
Terminal Size
Ø5mm
-
Neon Indicator
No
-
Product Marking
Washing Machine
-
Termination Type
Screw
-
Load Rating Comments
Suitable for Inductive Loads
-
Inductive Load Rating
20A
-
Minimum Back Box Depth
25mm (35mm Flat Plate)
-
Operational Temperature
-5℃ to +40℃
-
Anti Microbial Certified
No
-
Rated Voltage, Frequency
250V, 50Hz
-
Terminal Capacity - Solid
3 x 2.5mm² or 2 x 4mm²
-
Terminals, Terminal Screws
Brass, Steel & Yellow Passivated
