Photo is representative

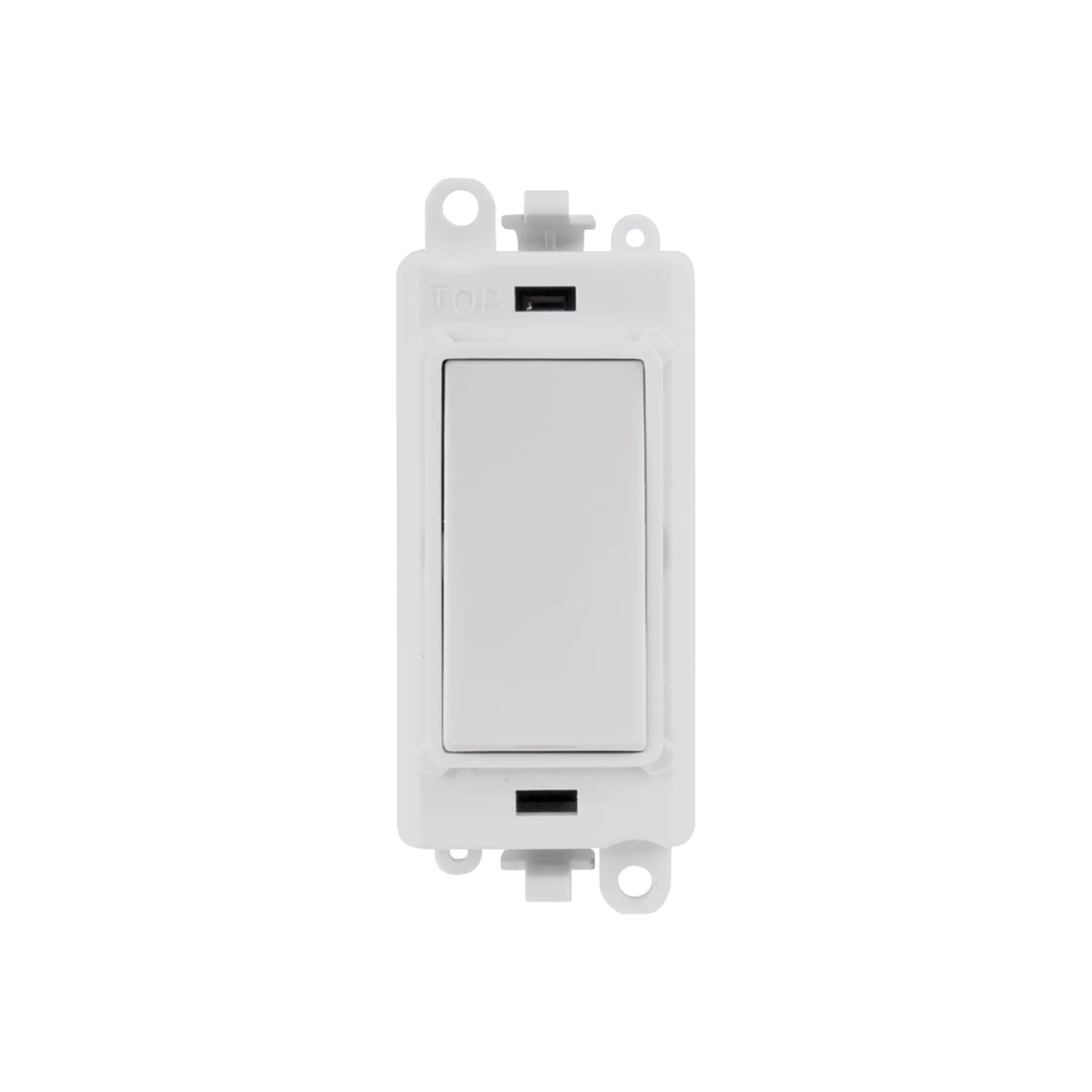

Click GridPro Double Pole Switch Module 20AX Polar White
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
priced individually
Net price: £4.29
Gross price
£5.15
The Click GridPro GM2018PW is a 20AX double pole switch module designed for euro grid systems, providing complete circuit isolation by switching both live and neutral conductors simultaneously. This module features a polar white finish, making it suitable for domestic and light commercial applications requiring positive disconnection of electrical loads. Double pole switching is required for certain appliances and installations where both poles must be isolated.
Rated at 20AX at 250V AC, this module is designed for switching inductive loads such as water heaters, immersion heaters, and appliances requiring double pole isolation. The module measures 24.5mm x 50mm x 22.5mm and features screw terminals with Ø5mm capacity accepting 3 x 2.5mm² or 2 x 4mm² conductors with 1.2Nm torque specification. Installation requires a minimum back box depth of 25mm, or 35mm when using flat grid plates. IP20 rating provides protection against finger contact for standard indoor installations.
This module is compatible with all euro grid system plates regardless of brand. The polar white finish coordinates with Click’s GridPro range, but the module can be installed in any standard euro grid plate featuring 25x50mm apertures. BS EN 60669-1 certified with a 20-year manufacturer warranty, ensuring long-term reliability in professional installations.
