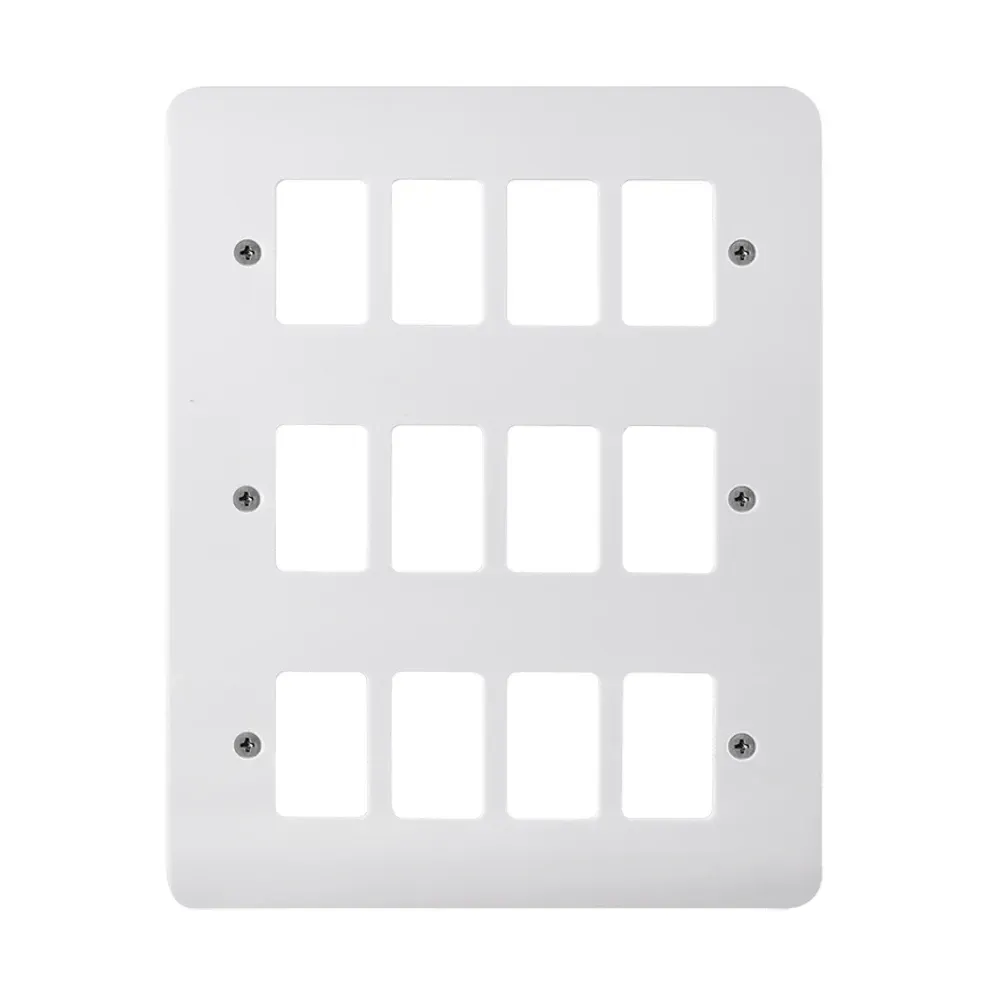

Click Mode 12-Gang GridPro Frontplate CMA20512 - Polar White
12-gang grid frontplate for Click GridPro system requiring 3 x GR20400 yokes for complete installation. Accommodates 12 standard 50x50mm Euro modules in 146mm x 206mm polar white urea formaldehyde construction. BS 5733 compliant with IP20 rating and antimicrobial certification killing 99.9% MRSA, E-Coli and Salmonella. Features brass fixing lugs and 47mm minimum backbox depth requirement. Operating temperature range -5°C to +40°C with 25-year warranty coverage for professional electrical installations.
Online:
Product Features
| Configuration | 12-Gang GridPro System |
|---|---|
| Plate Dimensions | 146mm (W) x 206mm (H) x 9mm (D) |
| Yoke Requirements | 3 x GR20400 Required |
| Minimum Backbox Depth | 47mm |
| Mounting System | Clip-on modules with tabs |
| Material Construction | Urea Formaldehyde with brass lugs |
| Antimicrobial Certification | 99.9% kill rate MRSA, E-Coli, Salmonella |
| Antiviral Properties | 99% enveloped, 92% non-enveloped viruses |
| Compliance Standard | BS 5733, UKCA Marked |
| IP Rating | IP20 |
| Operating Temperature | -5°C to +40°C |
| Warranty Period | 25 Years |
Installation Requirements
Yoke Configuration
Requires 3 x GR20400 yokes arranged horizontally to support 12-gang module configuration with proper structural integrity.
Backbox Specification

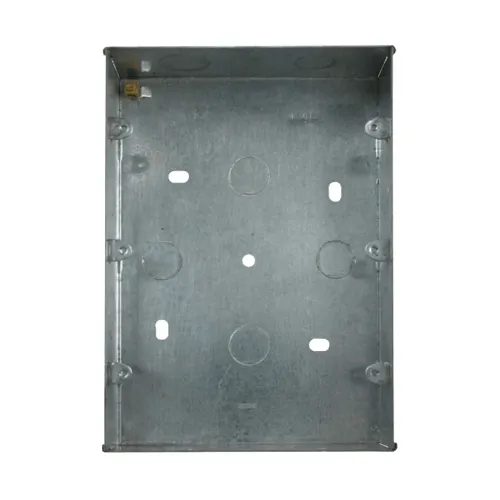

Minimum 47mm depth backbox required to accommodate yokes plus module depth for flush mounting installation.
Module Compatibility
Accepts all Click GridPro 50x50mm Euro modules with single-screw fixing system for quick installation.
Hygiene Protection
Antimicrobial Performance
Certified 99.9% kill rate against MRSA, E-Coli, Salmonella and Klebsiella Pneumoniae for healthcare environments.
Antiviral Properties
Kills 99% enveloped viruses and 92% non-enveloped viruses, ideal for high-traffic commercial installations.
Frequently Asked Questions
-
What yokes are required for CMA20512 installation?
Requires 3 x GR20400 yokes for complete 12-gang configuration with 47mm minimum backbox depth for proper fitting.
-
Which modules are compatible with GridPro system?
Accepts all Click GridPro 50x50mm Euro modules including switches, sockets, data outlets and control modules.
-
What are the exact plate dimensions?
Measures 146mm wide x 206mm high x 9mm deep, designed for 12-gang grid system installations.
-
Is the frontplate suitable for commercial installations?
Yes, BS 5733 compliant with antimicrobial properties and 25-year warranty makes it suitable for commercial applications.
-
What temperature range can this plate operate in?
Operating temperature range -5°C to +40°C covers standard indoor commercial and domestic applications.
