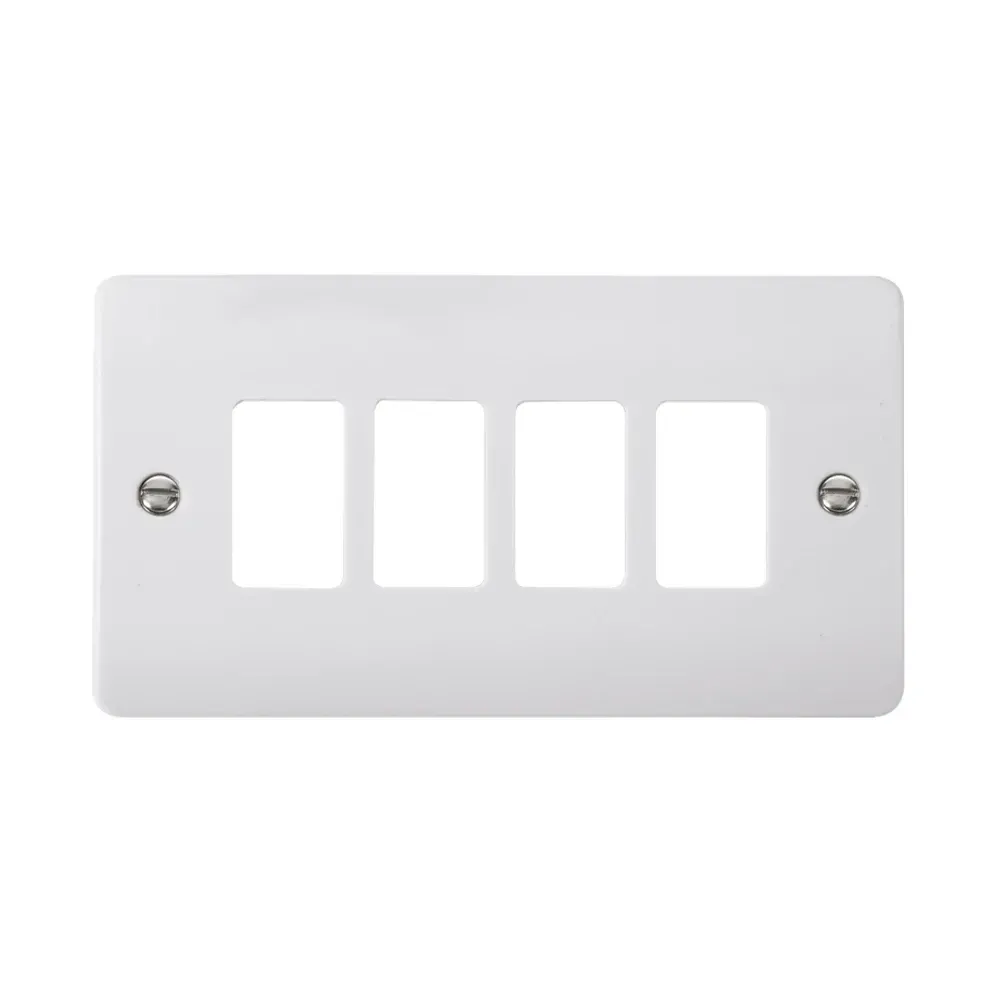

Click CMA20404 4-Gang GridPro Frontplate 146mm - Polar White
4-gang GridPro frontplate for modular socket and switch installations in standard 35mm backboxes. 146mm wide polar white urea construction with antimicrobial properties achieving 99.9% kill rate against MRSA, E-Coli and Salmonella. Compatible with Click GridPro modules using screw-in fixing system. BS 5733 compliant with 25-year warranty. IP20 rated for domestic applications with 120.6mm horizontal fixing centres. Operating temperature range -5°C to +40°C. No yoke required for standard backbox mounting. Earth cable sleeving required during installation.
Online:
Product Features
| Gang Configuration | 4-Gang modular system |
|---|---|
| Grid System | GridPro compatibility |
| Plate Dimensions | 146mm (W) x 86mm (H) x 9mm (D) |
| Fixing Centres | 120.6mm horizontal spacing |
| Backbox Requirement | Minimum 25mm depth |
| Module Fixing | Screw-in modules |
| Construction Material | Urea with brass fixing lugs |
| Antimicrobial Rating | 99.9% kill rate certified |
| Antiviral Properties | 99% enveloped, 92% non-enveloped viruses |
| Operating Temperature | -5°C to +40°C |
| Ingress Protection | IP20 domestic rating |
| Compliance Standard | BS 5733 with CE/UKCA marking |
| Colour Finish | Polar White |
| Warranty Period | 25 years |
Installation Requirements
Backbox Compatibility
Standard 35mm backbox recommended for module clearance. Minimum 25mm depth acceptable for flush mounting applications.
Fixing Specification
120.6mm horizontal centres match standard UK backbox spacing. Brass fixing lugs provide secure mounting without separate yoke.
Earth Connection
Bare earth cables must be sleeved. Standard domestic wiring practices apply for modular grid installations.
Health & Safety
Antimicrobial Certification
Proven 99.9% kill rate against MRSA, E-Coli, Salmonella and Klebsiella Pneumoniae. Continuous protection without chemical additives.
Antiviral Properties
99% effective against enveloped viruses, 92% against non-enveloped viruses. Inherent material properties provide ongoing protection.
Environmental Tolerance
Operating temperature -5°C to +40°C covers standard domestic and light commercial applications. IP20 rating for internal use.
Frequently Asked Questions
-
What backbox depth is required for the CMA20404 frontplate?
Minimum 25mm backbox depth required. Standard 35mm domestic backboxes provide adequate clearance for GridPro modules and cable management.
-
Are GridPro modules compatible with other grid systems?
GridPro modules are proprietary to Click system. Use only Click GridPro compatible modules for correct fit and electrical safety compliance.
-
Does the antimicrobial certification affect cleaning procedures?
Clean with soft, dry cloth only. Inherent antimicrobial properties in urea material provide continuous protection without chemical treatments or special maintenance.
-
Can this frontplate mount without a separate yoke frame?
No yoke required. Direct mounting to standard backbox using integral fixing lugs. Ensure earth cables are sleeved before connection.
