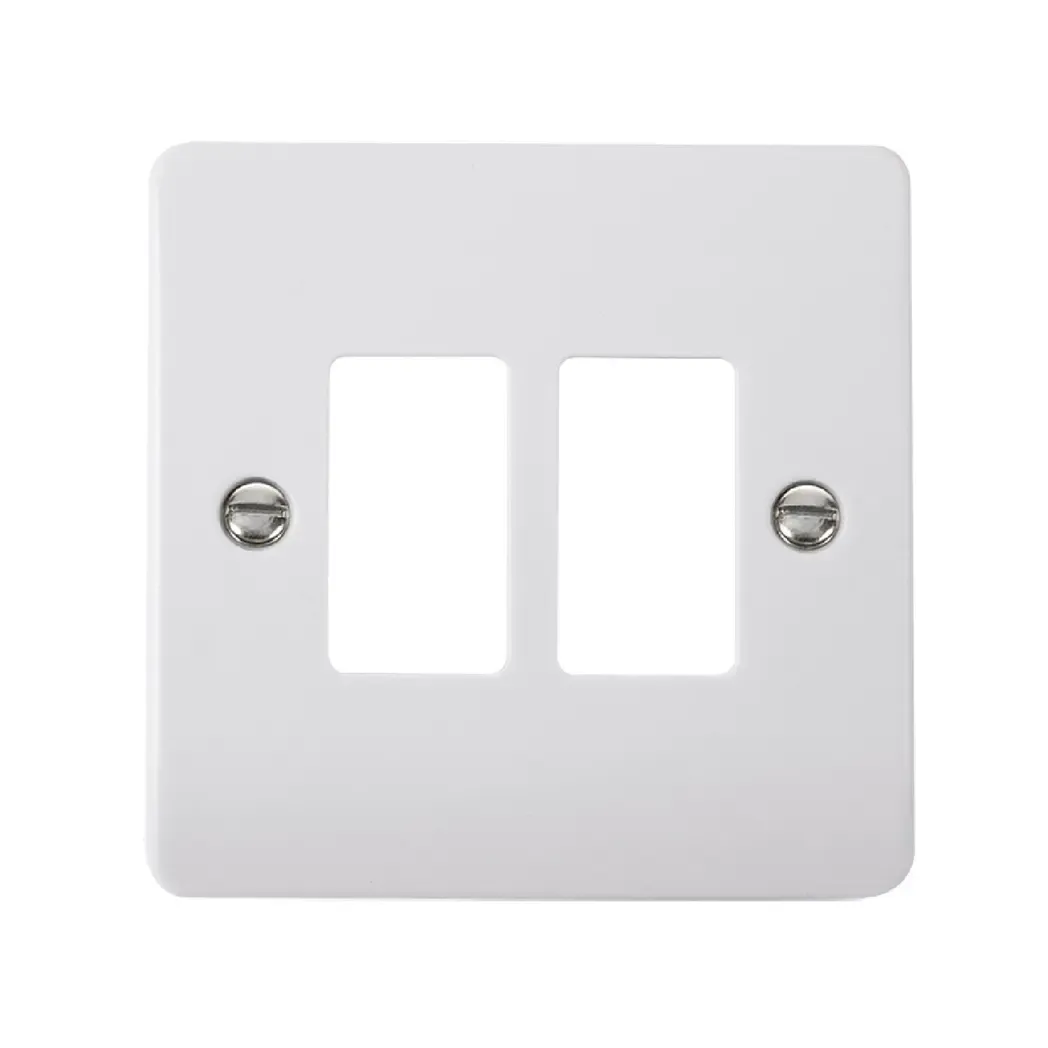

Photo is representative

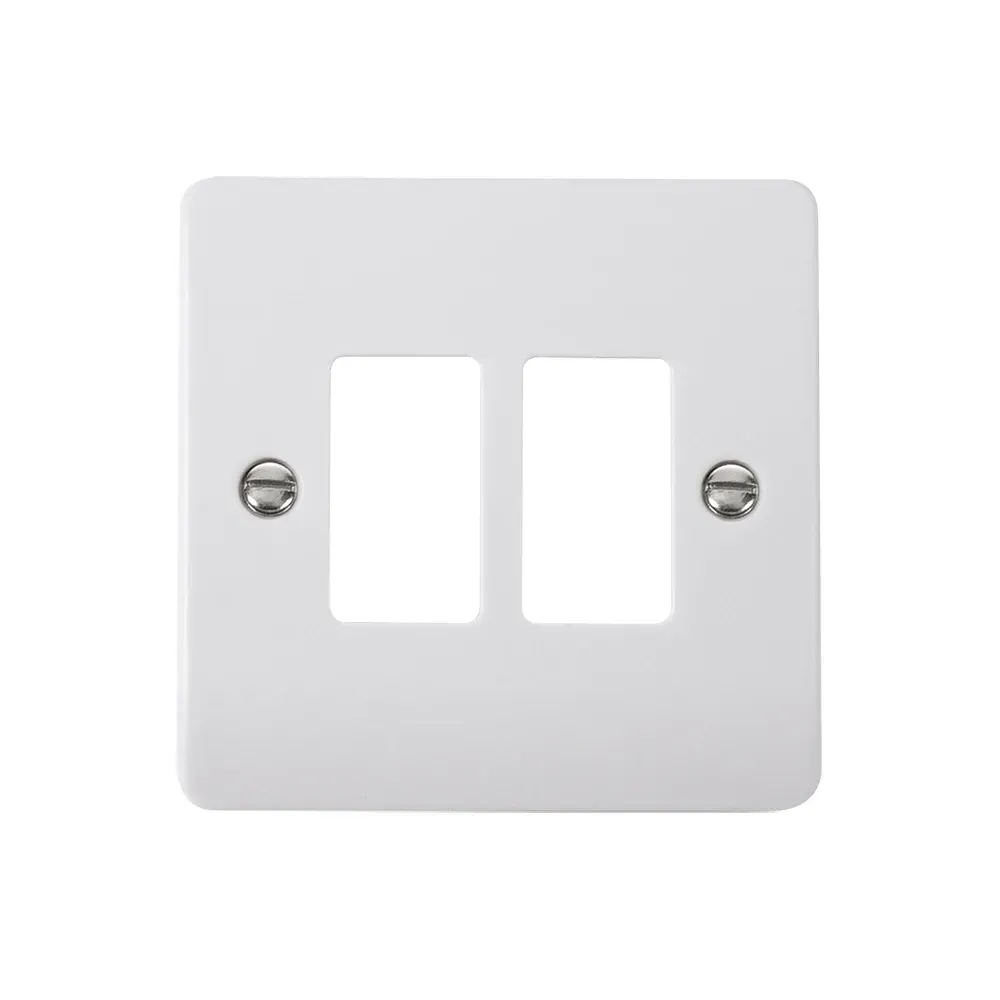

Click CMA20402 2-Gang GridPro Frontplate - Polar White
2-Gang GridPro frontplate for standard 86x86mm backbox installation with antimicrobial protection. Compatible with Click GridPro modular system components, featuring 60.3mm fixing centres and 25mm minimum backbox depth. Accommodates screw-in grid modules with BS 5733 compliance and IP20 rating. UKCA marked urea formaldehyde construction with 99.9% bacteria and virus kill rate. Includes brass fixing lugs and operates from -5°C to +40°C. 25-year warranty coverage with professional installation guidelines.
Online:
Product Features
| Configuration | 2-Gang GridPro frontplate |
|---|---|
| Plate Dimensions | 86mm (W) x 86mm (H) x 9mm (D) |
| Fixing Centres | 60.3mm horizontal spacing |
| Backbox Depth | 25mm minimum requirement |
| Module Compatibility | GridPro system screw-in modules |
| Material Construction | Urea formaldehyde frontplate |
| Antimicrobial Rating | 99.9% kill rate bacteria and viruses |
| Operating Temperature | -5°C to +40°C range |
| IP Rating | IP20 indoor protection |
| Compliance Standard | BS 5733 certified |
| Certification Marking | UKCA marked |
| Fixing Hardware | Brass fixing lugs included |
| Finish Colour | Polar White |
| Warranty Coverage | 25 years manufacturer warranty |
System Integration
GridPro Compatibility
Designed specifically for Click GridPro modular system with screw-in module installation. Proprietary fitting ensures secure electrical connections.
Backbox Requirements
Standard 86x86mm faceplate dimensions with 25mm minimum depth requirement. Compatible with flush mounting installations using brass fixing lugs.
Professional Applications
Commercial Installations
Antimicrobial coating makes suitable for healthcare facilities, food service areas, and high-touch commercial environments requiring hygiene protection.
Modular Flexibility
Accommodates various GridPro modules including data, voice, power, and media connections for customized installation requirements.
Maintenance Requirements
Clean with soft, dry cloth only to maintain antimicrobial properties. Avoid chemical cleaners that may compromise protective coating effectiveness.
Installation Standards
BS 5733 Compliance
Meets British Standard 5733 requirements for grid and modular systems. UKCA marking confirms regulatory compliance for UK installations.
Temperature Rating
Operates reliably from -5°C to +40°C ambient temperature. Urea formaldehyde construction provides dimensional stability across temperature range.
Frequently Asked Questions
-
What backbox depth is required for the GridPro frontplate?
Minimum 25mm backbox depth required. Standard 35mm backboxes provide optimal installation clearance for GridPro modules and connections.
-
Are GridPro modules compatible with other grid systems?
GridPro modules are proprietary to Click systems. Use only GridPro certified modules for guaranteed compatibility and BS 5733 compliance.
-
How effective is the antimicrobial coating protection?
Achieves 99.9% kill rate against MRSA, E-Coli, Salmonella, enveloped viruses and 92% effectiveness against non-enveloped viruses within testing parameters.
-
Can this frontplate be used in bathroom installations?
IP20 rating limits use to dry indoor locations only. Not suitable for bathroom zones requiring IP44 or higher moisture protection.
-
What fixing centres are used for module alignment?
60.3mm horizontal fixing centres ensure proper GridPro module alignment. Standard brass fixing lugs secure frontplate to backbox mounting points.
