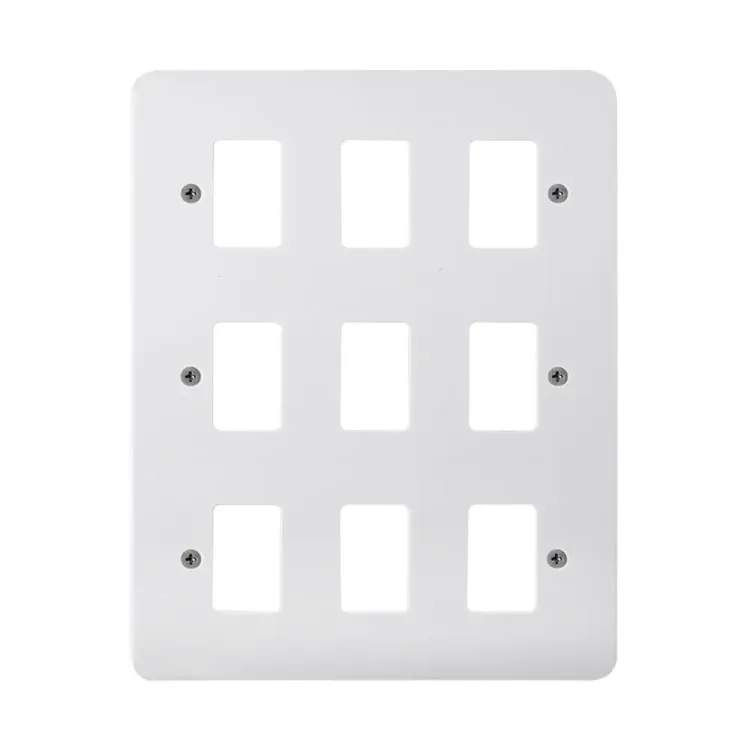

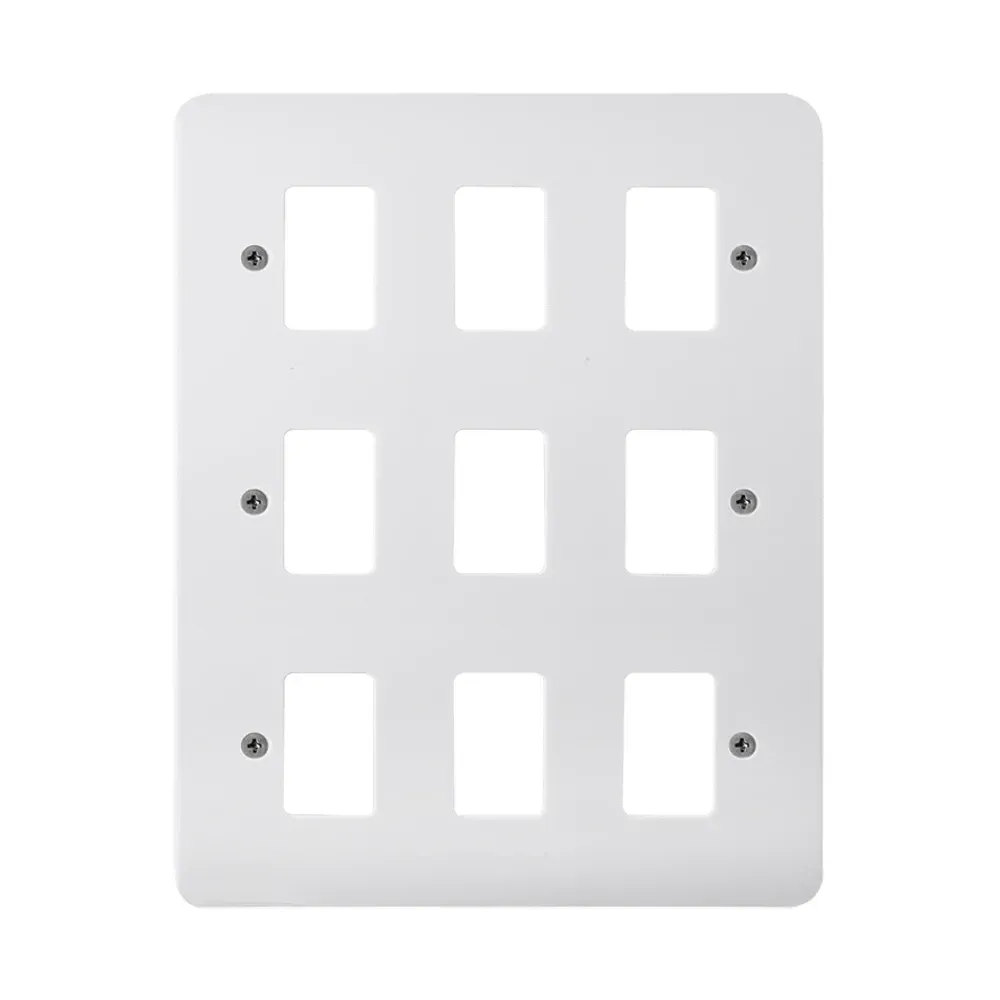

Click CMA20509 9-Gang GridPro Frontplate - Polar White
9-gang GridPro modular system frontplate for custom electrical configurations. 146x206mm frontplate requires 47mm backbox depth and 3x GR20400 yokes for installation. BS 5733 compliant with IP20 rating for domestic applications. Antimicrobial certified with 99.9% kill rate against MRSA, E-Coli and Salmonella. Urea formaldehyde construction with brass fixing lugs provides 25-year warranty performance. GridPro clip-on modules secure with tab system for rapid installation. Operating temperature range -5°C to +40°C covers standard domestic environments. UKCA/CE marked for compliance assurance.
Online:
Product Features
| Gang Configuration | 9-gang modular system |
|---|---|
| System Type | GridPro clip-on modules |
| Plate Dimensions | 146 (W) x 206 (H) x 9 (D) mm |
| Backbox Depth Required | 47mm minimum |
| Yoke Requirement | 3 x GR20400 yokes required |
| BS Standard | BS 5733 |
| IP Rating | IP20 |
| Operating Temperature | -5°C to +40°C |
| Material | Urea Formaldehyde with brass lugs |
| Antimicrobial Certification | 99.9% kill rate MRSA/E-Coli |
| Antiviral Properties | 99.9% enveloped viruses |
| Warranty Period | 25 years |
Installation Requirements
Backbox Configuration
Requires 47mm minimum depth backbox with 3 x GR20400 yokes. Deep backbox accommodates module depth and wiring requirements.
Module Mounting
GridPro modules clip onto tabs on backbox surface. Brass fixing lugs secure frontplate with standard terminal screwdriver.
System Compatibility
GridPro Modules
Accepts Click GridPro clip-on modules only. Tab system ensures secure module retention without additional fixing screws.
Yoke Requirements
Must use 3 x GR20400 yokes for structural support. Yokes distribute load across backbox and support module weight.
Performance Standards
Compliance Certification
BS 5733 compliant with UKCA/CE marking. IP20 rating suitable for domestic dry locations. 25-year warranty coverage.
Hygiene Properties
Antimicrobial certified against hospital-grade pathogens. Antiviral properties tested against enveloped and non-enveloped virus types.
Frequently Asked Questions
-
What backbox depth is required for the CMA20509 frontplate?
Requires minimum 47mm backbox depth. Must use 3 x GR20400 yokes for proper mounting and module support in deep backbox configuration.
-
Which modules are compatible with this GridPro frontplate?
Compatible with Click GridPro clip-on modules only. Modules secure with tab system fitting onto backbox surface. Not compatible with other grid systems.
-
What is the operating temperature range for domestic installation?
Operates from -5°C to +40°C covering standard domestic environments. Urea formaldehyde construction maintains dimensional stability across temperature range.
-
Does the frontplate include antimicrobial protection?
Yes, certified 99.9% kill rate against MRSA, E-Coli, Salmonella and Klebsiella Pneumoniae. Also effective against 99.9% enveloped viruses and 92% non-enveloped viruses.
