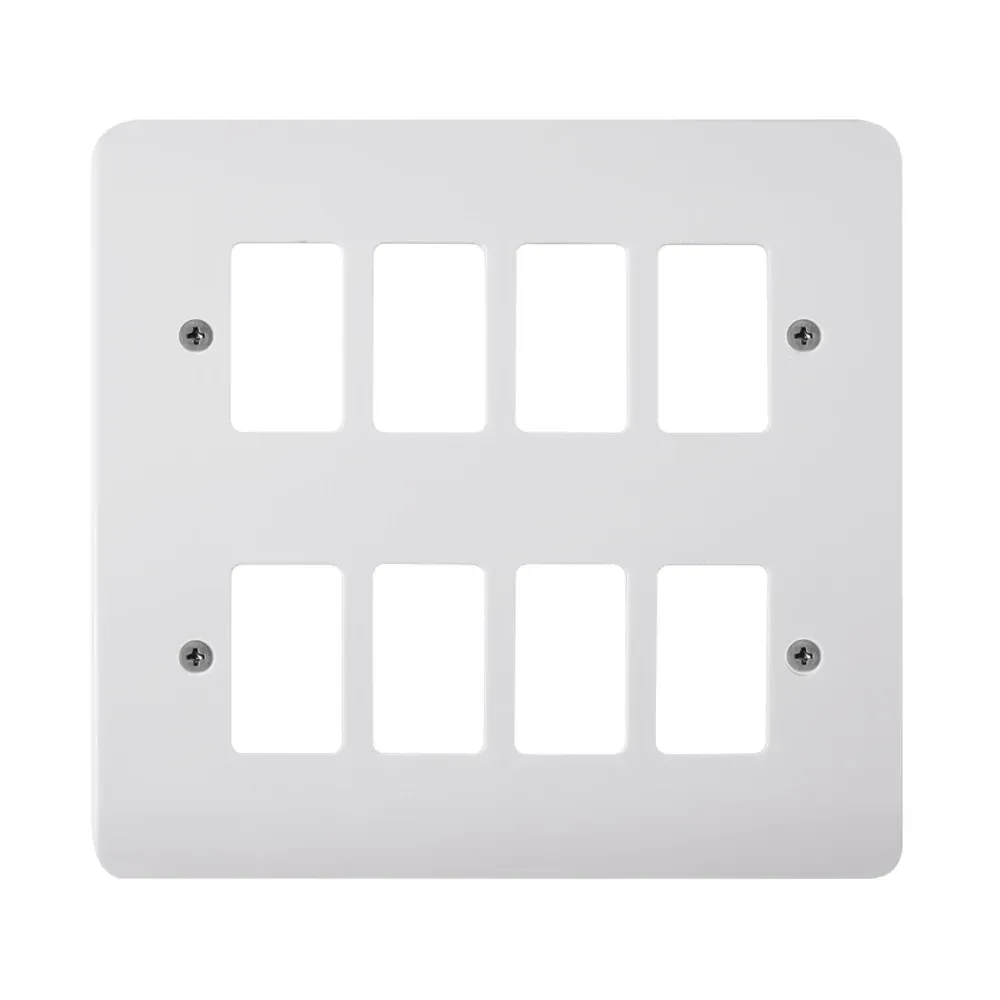

Click CMA20508 8-Gang GridPro Frontplate - Polar White
8-gang grid system frontplate compatible with GridPro clip-on modules for professional electrical installations. Requires 47mm minimum backbox depth with dual GR20400 yokes for secure mounting. Manufactured from antimicrobial urea material certified to kill 99.9% of bacteria and viruses on contact. BS 5733 compliant with IP20 rating for indoor use. Features brass fixing lugs and tabs fitting system for reliable module retention. Operating temperature range -5°C to +40°C suitable for domestic and commercial applications. UKCA marked with 25-year warranty backing Click quality standards.
Online:
Product Features
| Configuration | 8-Gang Grid System |
|---|---|
| System Compatibility | GridPro clip-on modules |
| Required Yokes | 2x GR20400 yokes |
| Minimum Backbox Depth | 47mm |
| Plate Dimensions | 146 x 146 x 9mm |
| Material | Antimicrobial Urea |
| Fixing Lugs | Brass construction |
| Operating Temperature | -5°C to +40°C |
| IP Rating | IP20 |
| Compliance Standard | BS 5733 |
| Certification | UKCA marked |
| Antimicrobial Efficacy | 99.9% bacteria/virus kill rate |
| Colour Finish | Polar White |
| Warranty Period | 25 years |
Installation Requirements
Backbox Specification
47mm minimum depth required for dual GR20400 yoke configuration. Standard 146x146mm dimensions for flush mounting applications.
Module Mounting
Clip-on system with tabs fitting for GridPro modules. Brass fixing lugs secure modules with reliable retention mechanism.
Technical Specifications
Material Properties
Urea formaldehyde construction with certified antimicrobial properties. Maintains appearance and performance throughout 25-year warranty period.
Environmental Rating
IP20 protection for indoor use. Operating range -5°C to +40°C covers domestic and commercial temperature conditions.
Frequently Asked Questions
-
What yokes are required for the CMA20508 8-gang frontplate?
Requires 2x GR20400 yokes for secure mounting. The 47mm minimum backbox depth accommodates the dual yoke configuration needed for 8-gang installations.
-
Are all GridPro modules compatible with this frontplate?
Compatible with GridPro clip-on modules featuring tabs fitting system. Modules clip securely into position with brass fixing lugs providing reliable retention.
-
What are the antimicrobial properties of this frontplate?
Urea material with inherent antimicrobial properties kills 99.9% bacteria and enveloped viruses, plus 92% non-enveloped viruses on contact for hygiene applications.
-
Does the CMA20508 meet current electrical regulations?
BS 5733 compliant with UKCA marking for UK installations. IP20 rating suitable for indoor domestic and commercial electrical applications.
