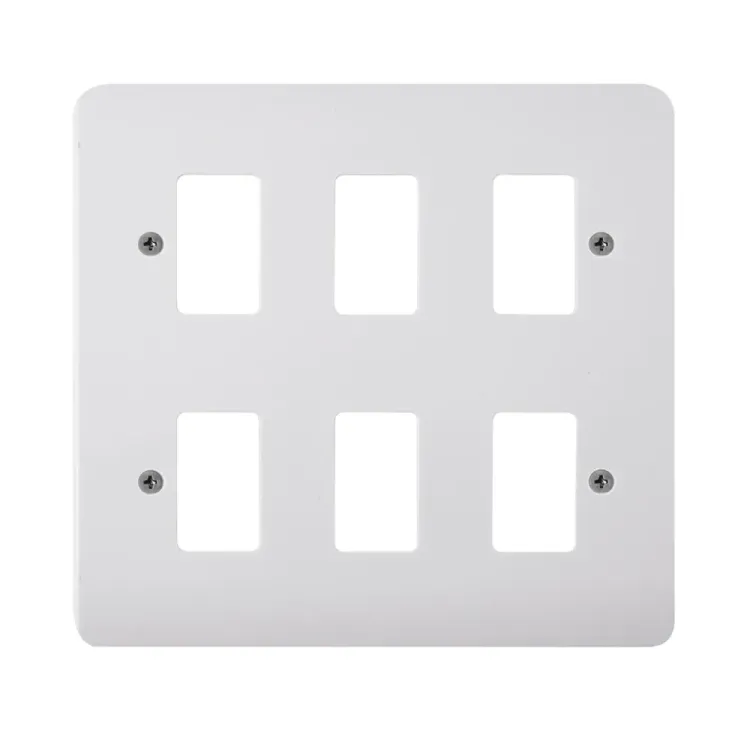

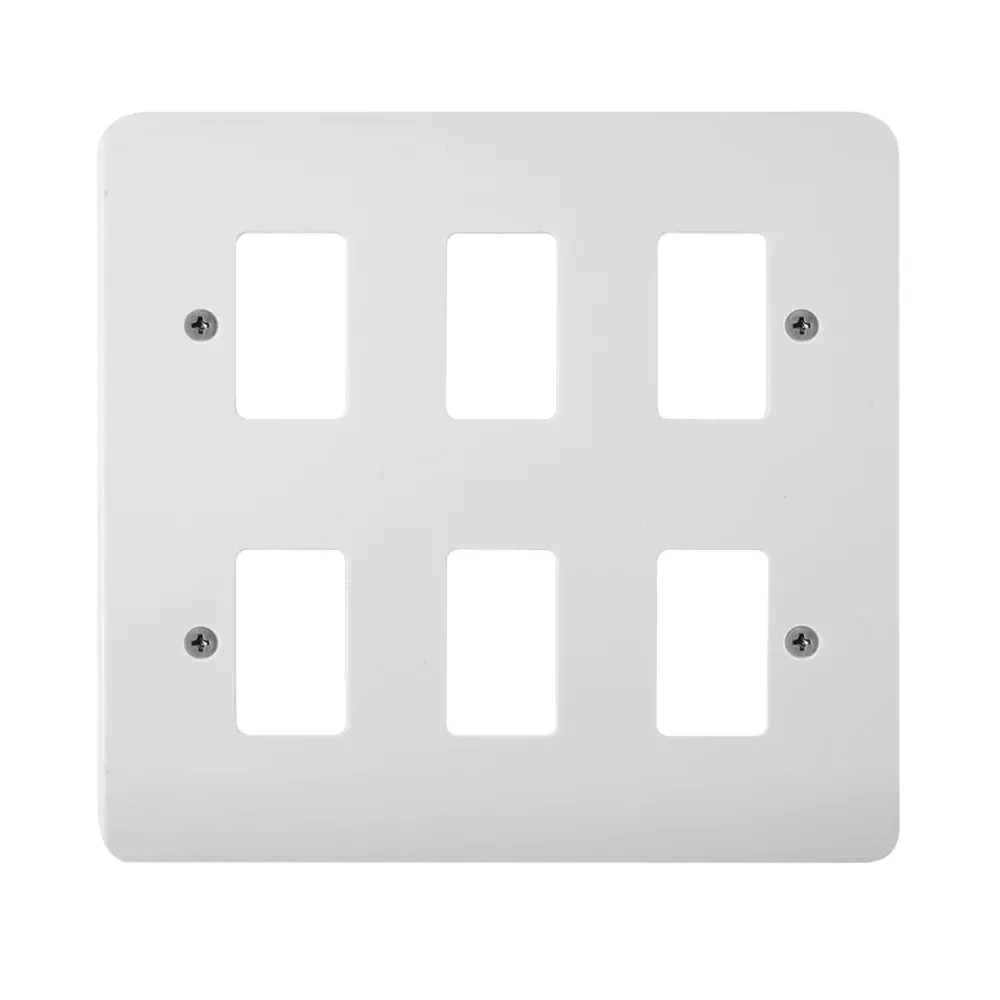

Click CMA20506 6-Gang GridPro Frontplate - Polar White
6-gang GridPro modular frontplate for clip-on modules with tabs on 47mm minimum backbox depth. Urea formaldehyde construction with antimicrobial certification achieving 99.9% kill rate against MRSA, E-Coli, and Salmonella. BS 5733 compliant plate switch system with IP20 rating for domestic installations. Brass fixing lugs and polar white finish provide reliable mounting in standard 146mm x 146mm configuration. Requires 2 x GR20400 yokes for proper installation. 25-year warranty backed by Click Mode range quality standards. Temperature rated -5°C to +40°C for consistent performance.
Online:
Product Features
| Configuration | 6-Gang Grid System |
|---|---|
| Grid Compatibility | GridPro clip-on modules with tabs |
| Mounting Type | Flush mount frontplate |
| Backbox Depth Required | 47mm minimum |
| Plate Dimensions | 146mm (W) x 146mm (H) x 9mm (D) |
| Yoke Requirements | 2 x GR20400 yokes required |
| Material Construction | Urea Formaldehyde front plate |
| Antimicrobial Certification | 99.9% kill rate against MRSA, E-Coli, Salmonella |
| Compliance Standard | BS 5733 |
| IP Rating | IP20 |
| Temperature Range | -5°C to +40°C operational |
| Fixing Hardware | Brass fixing lugs |
| Finish | Polar White |
| Warranty Period | 25 years |
Installation Requirements
Backbox Specifications
47mm minimum depth required with tabs fitting on back box surface. Standard 35mm depths insufficient for 6-gang configuration.
Yoke Configuration
2 x GR20400 yokes required for structural support. Position yokes correctly before fitting frontplate for proper module alignment.
Mounting Hardware
Brass fixing lugs provide secure mounting. Use 3.5mm flat blade screwdriver with 0.6-0.8Nm torque for optimal terminal connections.
Grid System Compatibility
Module Interface
GridPro clip-on modules with tabs system. Each module secures independently without additional fixing screws for rapid installation.
Configuration Options
6-gang layout accommodates various module combinations including sockets, switches, data outlets, and media connections per installation requirements.
Frequently Asked Questions
-
What backbox depth is required for this 6-gang GridPro frontplate?
Minimum 47mm backbox depth required for proper installation. Standard 35mm backboxes are not suitable for this 6-gang configuration.
-
Are the GridPro modules cross-compatible with other grid systems?
GridPro modules use proprietary clip-on tabs. Cross-compatibility with MK Grid Plus or other systems is limited - verify module compatibility before ordering.
-
What yokes are needed for mounting this 6-gang frontplate?
Requires 2 x GR20400 yokes for proper support and alignment. Yokes must be ordered separately and positioned correctly in backbox.
-
Does this frontplate meet bathroom installation requirements?
IP20 rating suitable for domestic dry locations only. Not suitable for bathroom zones requiring IP44 or higher protection levels.
-
What is the antimicrobial certification standard for this frontplate?
Certified 99.9% kill rate against MRSA, E-Coli, Salmonella, and Klebsiella Pneumoniae. Also effective against 99.9% enveloped viruses, 92% non-enveloped viruses.
