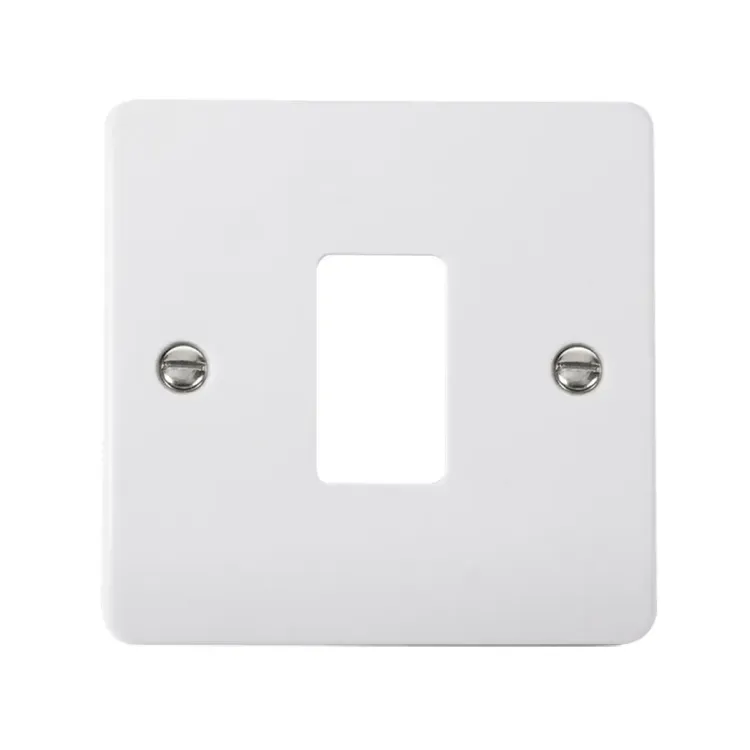

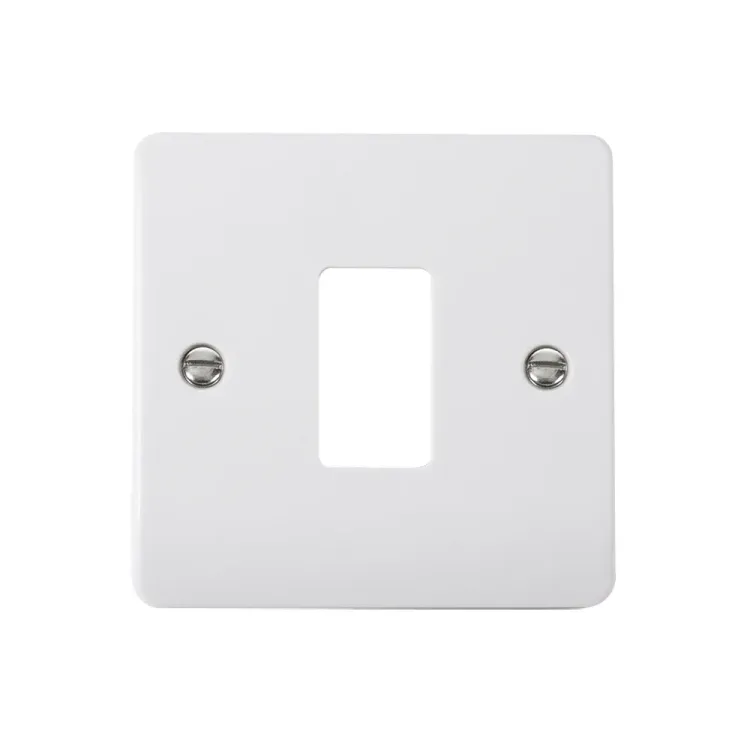

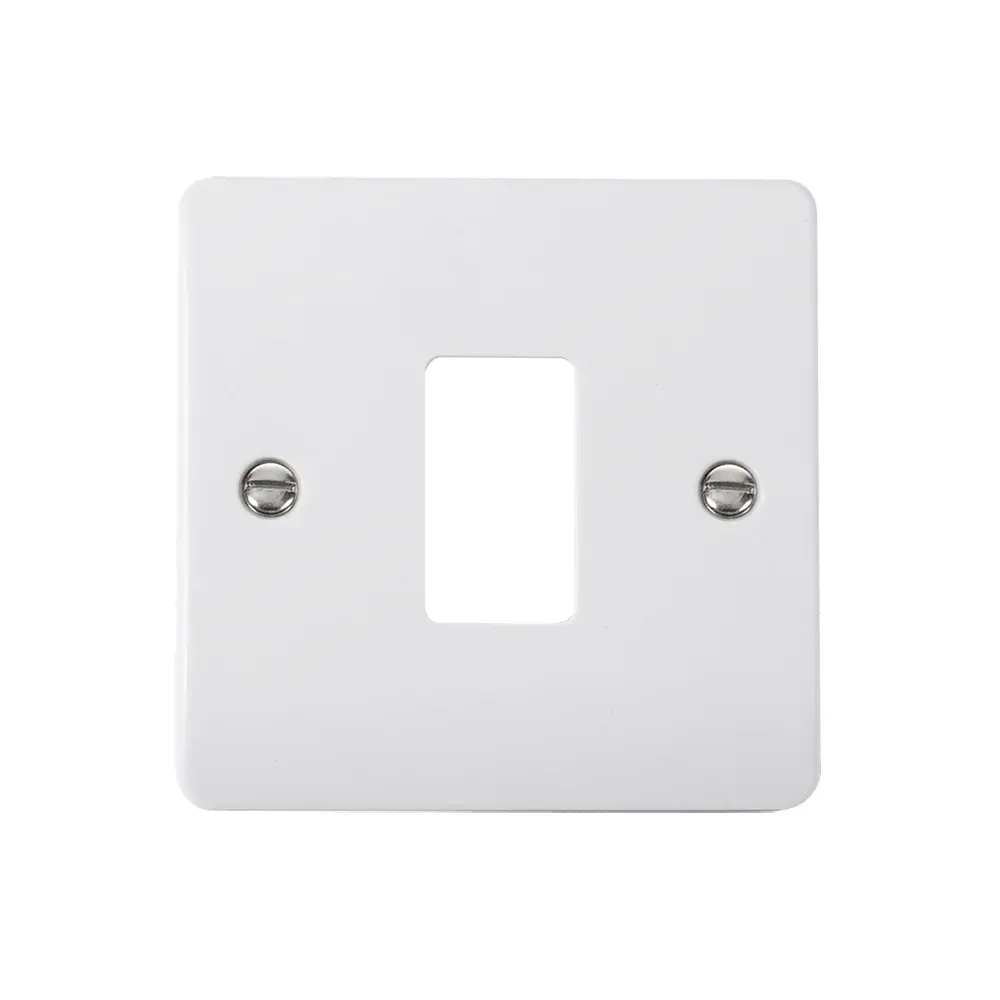

Click CMA20401 1 Gang GridPro frontplate polar white finish

Photo is representative

Click CMA20401 1 Gang GridPro Frontplate - Polar White

1 Gang GridPro frontplate for modular electrical installations accepting single screw-in modules. 86mm x 86mm urea formaldehyde construction with 25mm minimum backbox depth compatibility and 60.3mm fixing centres. Features antimicrobial properties with 99.9% bacteria kill rate and 25-year warranty. BS 5733 compliant with IP20 rating for domestic applications. Standard brass fixing lugs with UKCA marking for professional grid system installations.

Product Information

Stock Code CMA20401
MPN
GTIN
Stock status: In stock
Price: £2.06
incl. VAT, 20% priced individually

Product Features

Configuration 1 Gang GridPro Frontplate
System Compatibility GridPro modular system
Plate Dimensions 86mm (W) x 86mm (H) x 9mm (D)
Minimum Backbox Depth 25mm
Fixing Centres 60.3mm horizontal
Module Capacity Single module aperture
Material Urea Formaldehyde
Compliance Standard BS 5733
IP Rating IP20
Temperature Range -5°C to +40°C
Antimicrobial Certification 99.9% bacteria kill rate
Finish Polar White
Warranty Period 25 years
Certification UKCA marked

Installation Requirements

Backbox Compatibility

Standard 25mm minimum backbox depth with 60.3mm horizontal fixing centres. Brass fixing lugs for secure mounting.

Module Mounting

Single aperture accepts GridPro screw-in modules. No separate yoke required for installation.

Professional Applications

Modular Installations

GridPro system compatibility enables flexible module configurations for domestic and commercial applications.

Hygienic Environments

Antimicrobial coating suitable for healthcare, food service and educational facilities requiring enhanced cleanliness.

Compliance Standards

BS 5733 Standard

Meets British Standard for general purpose socket outlets and associated accessories for domestic use.

Temperature Rating

Operational temperature range -5°C to +40°C with IP20 ingress protection rating.

Frequently Asked Questions

  • What minimum backbox depth is required for this frontplate?

    The CMA20401 requires a minimum 25mm backbox depth with standard 60.3mm horizontal fixing centres for proper installation.

  • Which modules are compatible with this GridPro frontplate?

    This single gang frontplate accepts any GridPro system screw-in modules through its single module aperture design.

  • What are the antimicrobial properties of this frontplate?

    Certified antimicrobial coating provides 99.9% bacteria kill rate against MRSA, E-Coli, Salmonella and Klebsiella Pneumoniae pathogens.

  • Does this frontplate meet current electrical standards?

    Yes, BS 5733 compliant with IP20 rating and UKCA marking for domestic electrical installations.
