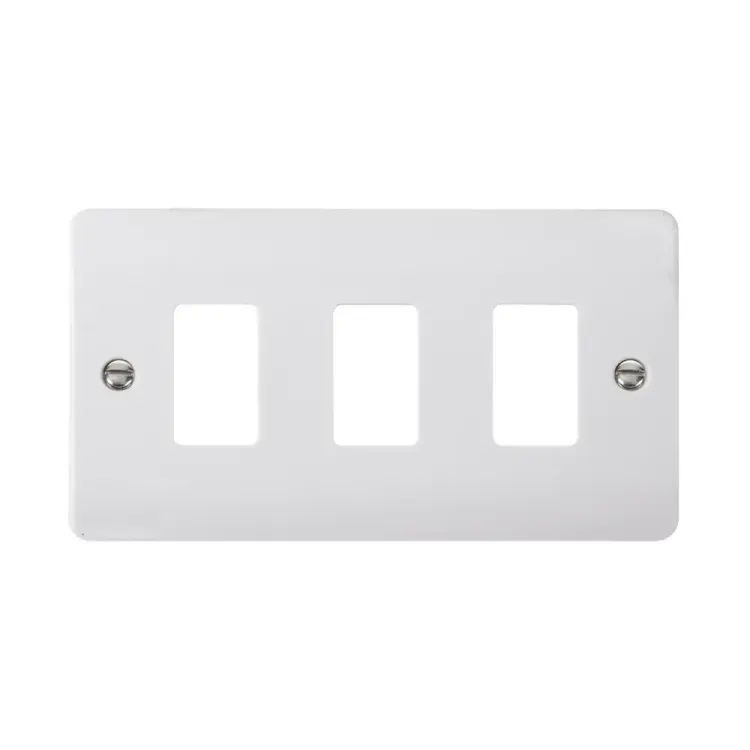

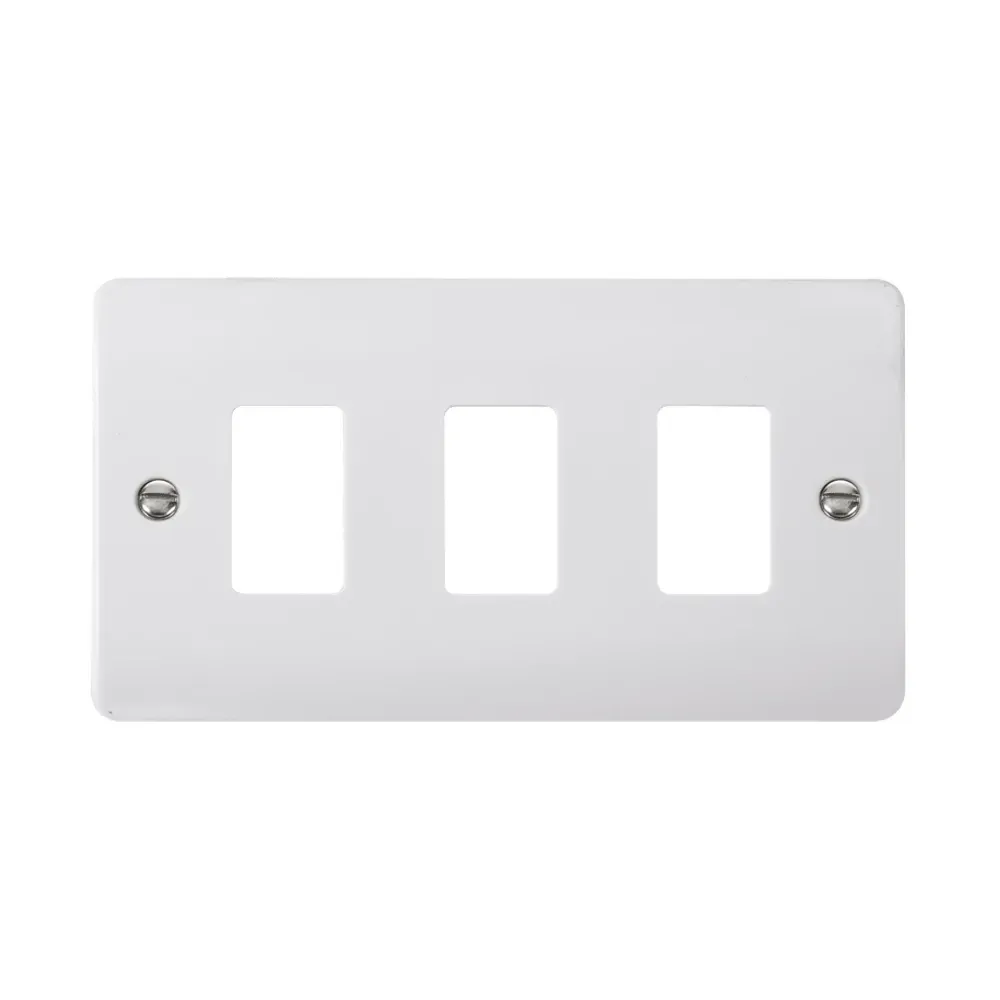

Click CMA20403 3-Gang GridPro Modular Frontplate - Polar White
3-gang modular grid frontplate for Click GridPro screw-in modules. 146mm x 86mm frontplate fits standard 120.6mm fixing centres with 25mm minimum backbox depth. Urea formaldehyde construction with inherent antimicrobial properties certified to kill 99.9% bacteria including MRSA and E.coli. No yoke required - modules screw directly into frontplate for faster installation. BS 5733 compliant with IP20 protection rating. Brass fixing lugs provide secure mounting to standard back boxes. Designed for domestic and commercial installations with -5°C to +40°C operational temperature range. UKCA marked with 25-year warranty.
Online:
Product Features
| Gang Configuration | 3-gang modular grid system |
|---|---|
| Grid System | Click GridPro screw-in modules |
| Plate Dimensions | 146mm (W) x 86mm (H) x 9mm (D) |
| Fixing Centres | 120.6mm horizontal spacing |
| Minimum Backbox Depth | 25mm standard mounting |
| Installation Method | Screw-in modules, no yoke required |
| Material Construction | Urea formaldehyde with brass lugs |
| Antimicrobial Properties | 99.9% bacteria kill rate (MRSA, E.coli) |
| IP Protection Rating | IP20 indoor applications |
| Compliance Standard | BS 5733 certified |
| Operational Temperature | -5°C to +40°C range |
| Certification Marking | UKCA marked |
| Finish Colour | Polar White Mode range |
| Warranty Period | 25-year manufacturer warranty |
Installation Requirements
Standard Backbox
25mm minimum depth with 120.6mm horizontal fixing centres. Standard 86mm height back boxes compatible.
Module Installation
Screw-in modules directly into frontplate. No separate yoke required reducing installation time and complexity.
Fixing Method
Brass lugs provide secure mounting. Standard screwdriver installation with captive fixing screws for reliability.
Grid System Applications
Office Installations
Modular configuration allows mixing data, USB charging and power modules in single frontplate for workstation applications.
Kitchen Applications
3-gang capacity ideal for appliance circuits, USB charging points and switched sockets in domestic kitchen installations.
Commercial Fitouts
Antimicrobial properties and 25-year warranty suitable for high-touch commercial environments requiring hygiene standards.
Standards Compliance
BS 5733 Standard
Complies with British Standard for general purpose electrical accessories. UKCA marked for Great Britain market.
IP20 Protection
Suitable for indoor dry locations. Provides protection against solid objects larger than 12.5mm diameter.
Frequently Asked Questions
-
What backbox depth is required for the CMA20403 frontplate?
Minimum 25mm backbox depth required. Standard 35mm boxes provide optimal installation space for cable management and module connections.
-
Can I mix different brands of modules with this GridPro frontplate?
Click GridPro system uses proprietary screw-in modules. Cross-compatibility with other grid systems is limited due to different fixing mechanisms.
-
Does this frontplate require a separate yoke for installation?
No yoke required. Modules screw directly into the frontplate, reducing installation time and backbox depth requirements compared to traditional grid systems.
-
What antimicrobial certification does this frontplate have?
Independently tested with 99.9% kill rate for MRSA, E.coli, Salmonella and Klebsiella Pneumoniae bacteria, plus 92% effectiveness against non-enveloped viruses.
-
Is this frontplate suitable for commercial installations?
Yes, BS 5733 compliant with -5°C to +40°C operational range. IP20 rating suitable for dry indoor commercial and domestic applications.
