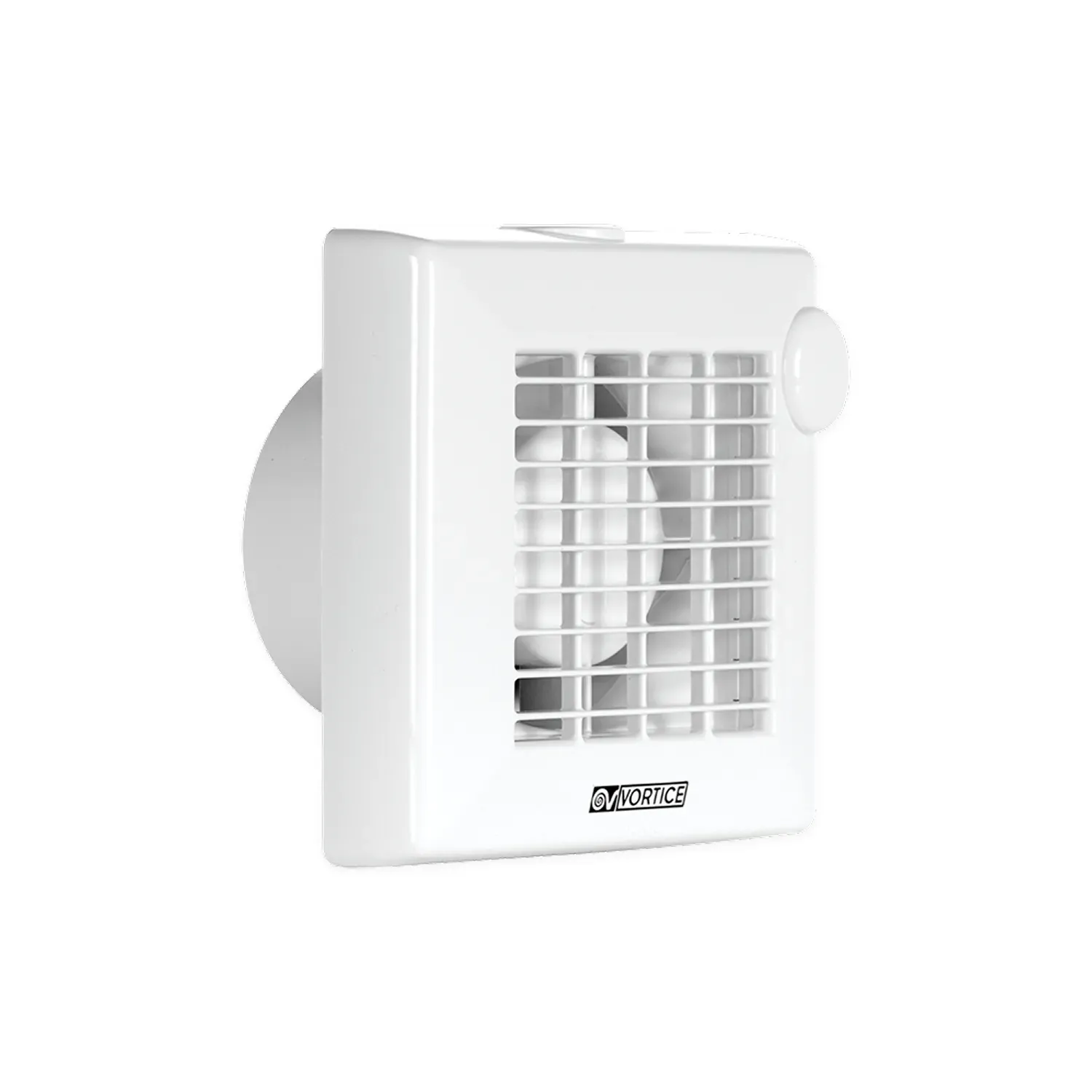

Vortice Punto M 150 6 Inch Timer Axial Wall Window Fan 220-240V

Photo is representative

Vortice Punto M 150mm 6Inch Timer Axial Wall Window Fan 220-240V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 11411
GTIN
Stock status: 5 in stock

priced individually

More arriving soon

Net price: £102.67

Gross price

£123.20

Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 30 day returns

Axial fan for wall or window installation. 150mm nominal diameter, suited to short duct runs in bathrooms or similar intermittent extraction applications.

Fitted with an electronic timer that shuts the motor off automatically after a set run-on period. Timer is adjustable during installation — selectable between 3 and 20 minutes, defaulting to 3 minutes out of the box.

  • Max airflow: 335 m³/h (93.1 l/s)
  • Noise: 46 dB(A) at 3m
  • Supply: 220–240V, 50Hz
  • Motor thermally protected, shaft in self-lubricating bushings
  • UV-resistant plastic housing
Specifications

Voltage

220-240V

Frequency

50 Hz

Max Absorbed Power

29 W

Max Absorbed Current

0.15 A

Max Airflow

335 m³/h (93.1 l/s)

Max Pressure

59 Pa (6 mmH2O)

Noise Level Lp

46 dB(A) at 3m

Speed

2100 RPM

Nominal Diameter

150 mm

Discharge Hole Diameter

156 mm

IP Rating

IPX4

Insulation Class

Class II

Max Ambient Temperature (Continuous)

50°C

Timer Range

3–20 minutes (default 3 minutes)

Weight

1.1 kg

Dimensions (A x B x C x D)

214 x 215 x 117 x 47 mm

Housing Material

UV-resistant plastic

Certifications

CE, UKCA, CCC, EAC, G-Mark, CB Test Certificate
