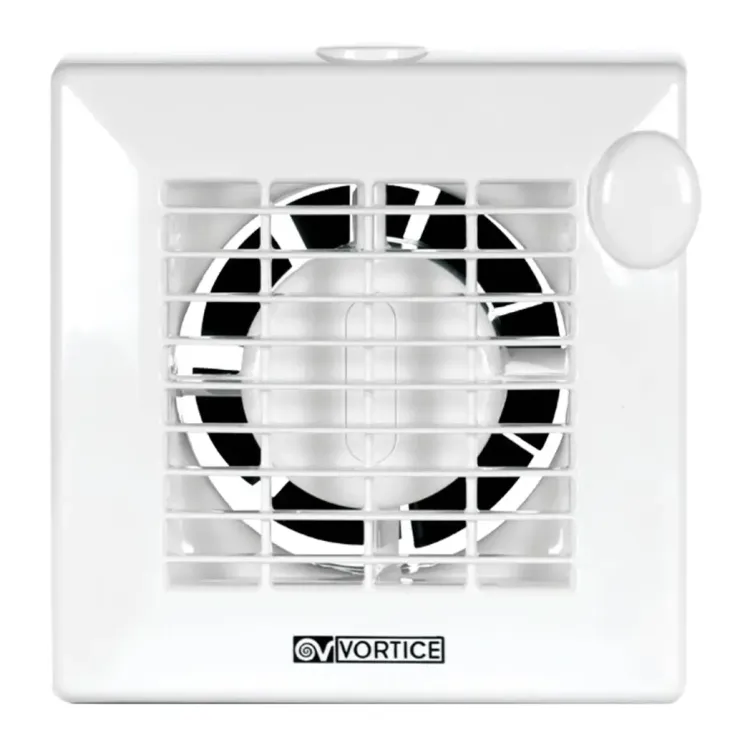

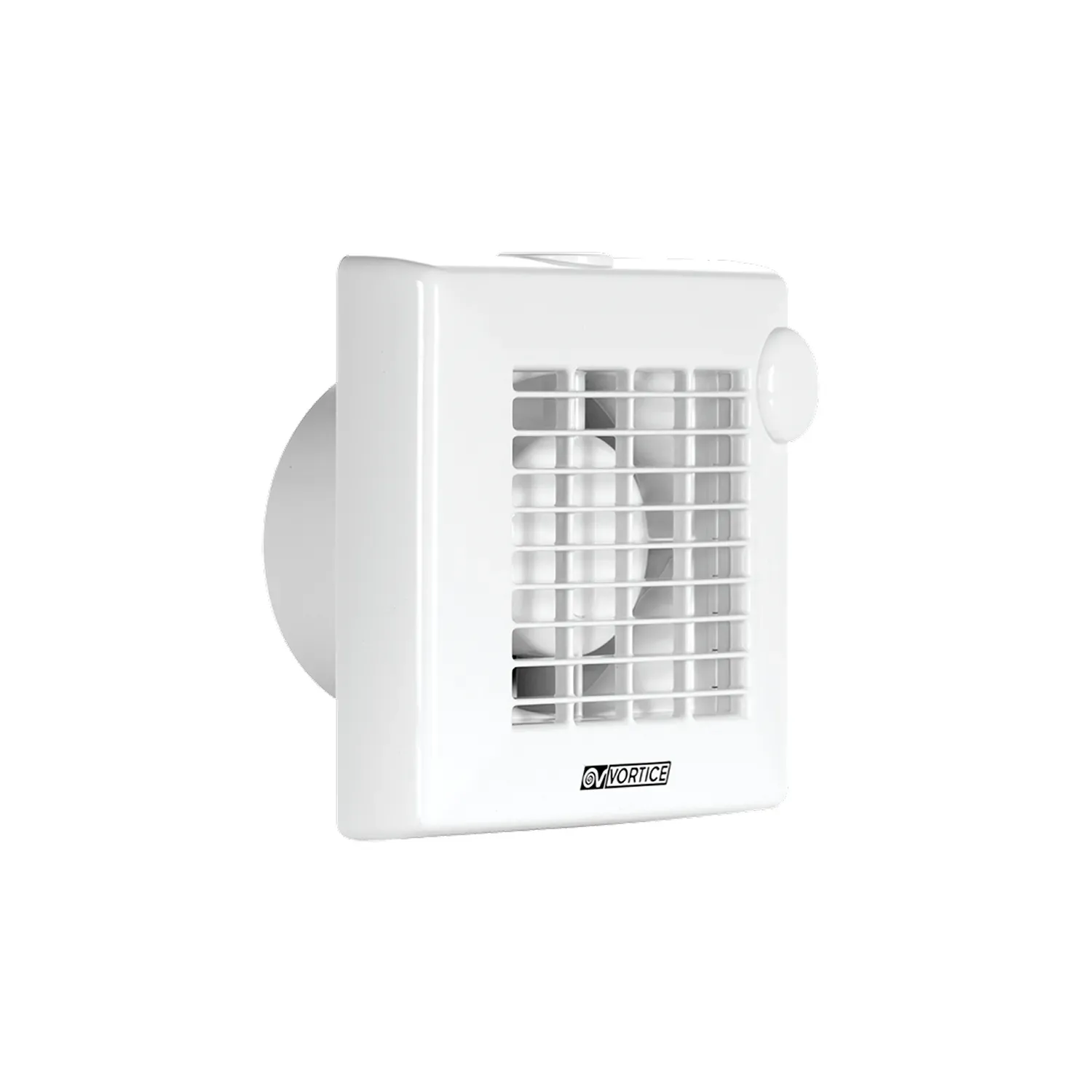

Vortice M 100/4 T 100mm Axial Extractor Fan Timer IPX4 220-240V

Photo is representative

Vortice M 100/4 T 100mm Axial Extractor Fan Timer IPX4 220-240V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 11211
GTIN
Stock status: In stock

priced individually

More arriving soon

Net price: £20.13

Gross price

£24.15

Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 30 day returns

Wall and window axial fan from Vortice. 100mm nominal diameter, suits standard 100mm duct installations in bathrooms and kitchens.

Comes with an electronic overrun timer — adjustable during installation from 3 to 20 minutes, default set to 3 minutes. IPX4 rated, Class II insulation. UV-resistant thermoplastic housing. Motor is thermally protected with self-lubricating bushings.

  • Max airflow: 90 m³/h (25 l/s)
  • Noise: 37.5 dB(A) at 3m
  • Max absorbed power: 18W
  • Discharge hole: Ø 99mm
Specifications

Voltage

220-240V

Frequency

50 Hz

Max Absorbed Power

18 W

Max Absorbed Current

0.1 A

IP Rating

IPX4

Insulation Class

Class II

Nominal Diameter

100 mm

Discharge Hole Diameter

99 mm

Max Airflow

90 m³/h (25 l/s)

Max Pressure

29 Pa (3 mmH2O)

Motor Speed

2300 RPM

Sound Pressure Lp at 3m

37.5 dB(A)

Max Ambient Temperature

50°C

Timer Range

3-20 minutes (adjustable), default 3 minutes

Weight

0.6 kg

Dimensions (A x B x C x D)

159 x 160 x 100 x 47 mm

Housing Material

UV resistant thermoplastic

Certifications

CE, UKCA, CCC, EAC, G-Mark, CB Test Certificate

Fan Type

Wall/window axial
