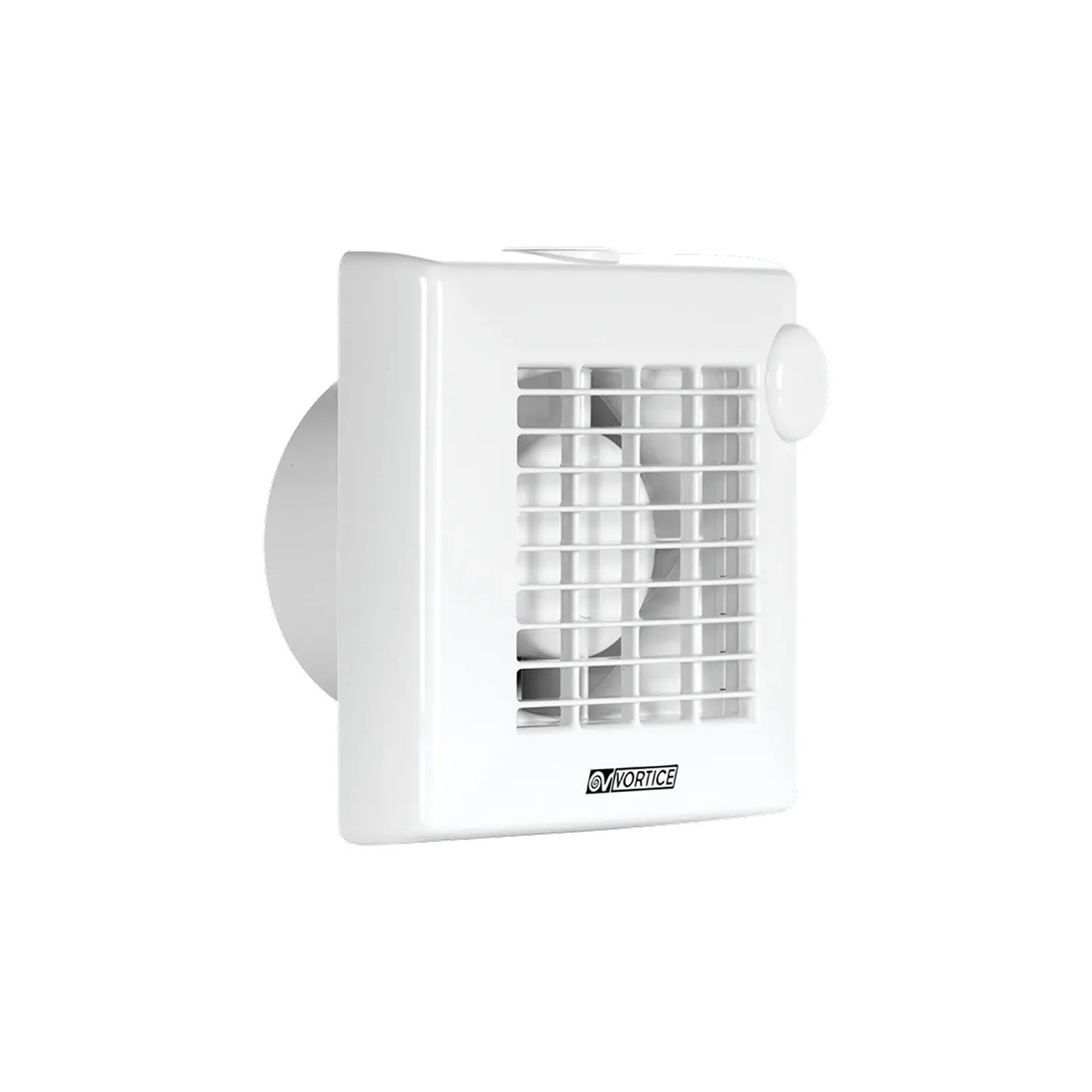

Vortice M 100 4 inch 100mm Axial Wall Window Fan 220-240V IPX4

Photo is representative

Vortice M 100 4 inch 100mm Axial Wall Window Fan 220-240V IPX4

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 11201
GTIN
Stock status: In stock

priced individually

More arriving soon

Net price: £17.86

Gross price

£21.43

Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 30 day returns

100mm axial fan for wall or window installation. Intermittent operation, screw-type thermoplastic impeller with wing profile blades. Motor has thermal overload protection and runs on self-lubricating bushings.

UV-resistant plastic housing. Compatible with Vortice speed controller accessories.

  • Max airflow: 90 m³/h (25 l/s)
  • Sound pressure: 37.5 dB(A) at 3m
  • Supply: 220–240V, 50Hz
  • Power: 18W, 0.1A max
  • IPX4, Class II insulation
Specifications

Voltage

220-240V

Frequency

50 Hz

Max Power Consumption

18 W

Max Current

0.1 A

Max Airflow

90 m³/h (25 l/s)

Max Static Pressure

29 Pa (3 mmH2O)

Fan Speed

2300 RPM

Sound Pressure

37.5 dB(A) at 3m

IP Rating

IPX4

Insulation Class

Class II

Nominal Duct Diameter

100 mm

Discharge Hole Diameter

99 mm

Max Ambient Temperature

50°C (continuous operation)

Weight

0.6 kg

Dimensions (A x B x C x D)

159 x 160 x 100 x 47 mm

Housing Material

UV resistant plastic

Certifications

CE, UKCA, CCC, EAC, G-Mark, CB Test Certificate
