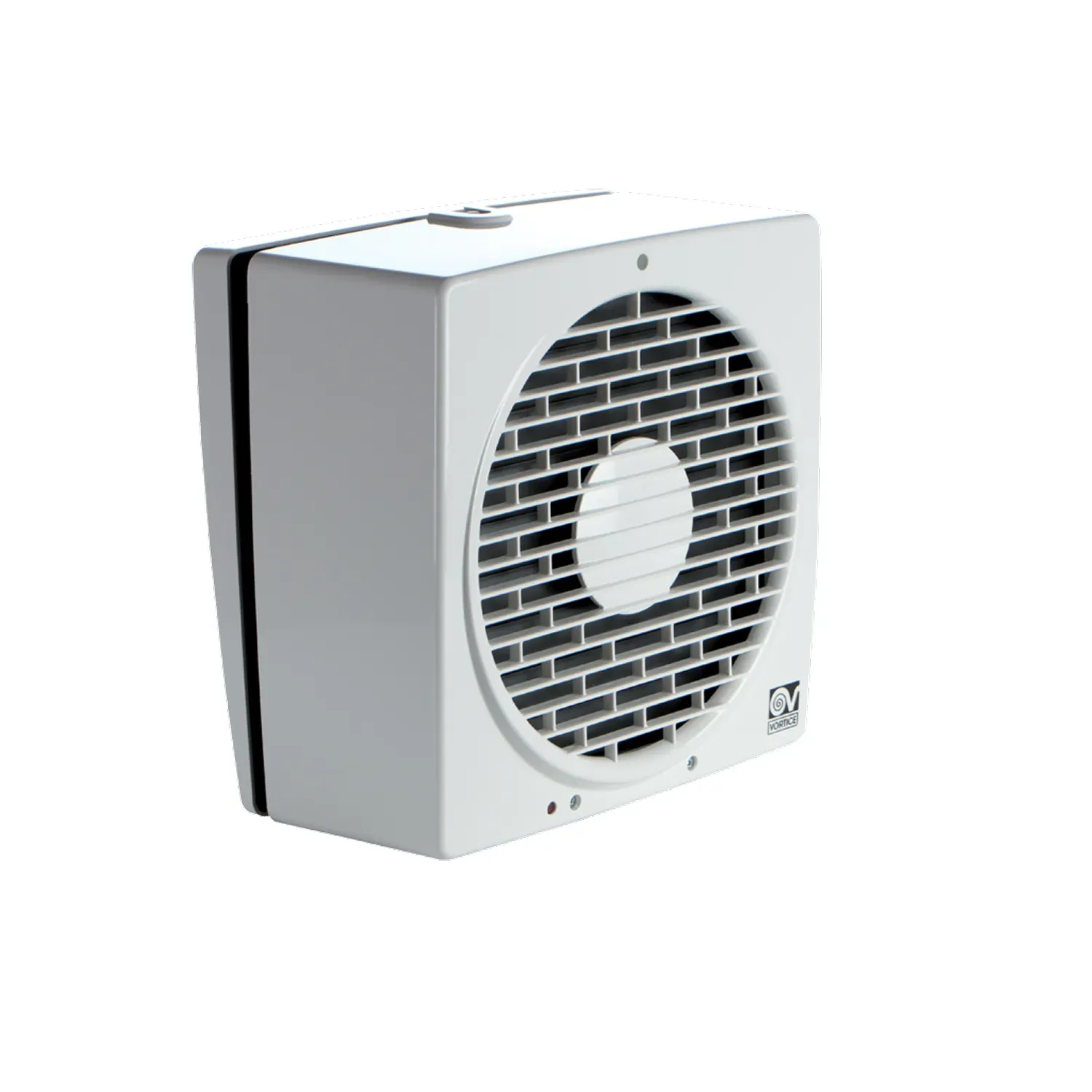

Vortice 150 6 inch AR Wall Window Axial Fan with Automatic Shutter 240V

Photo is representative

Vortice 150 6 inch AR Wall Window Axial Fan with Automatic Shutter 240V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 12612
GTIN
Stock status: 3 in stock

priced individually

Net price: £103.97

Gross price

£124.77

Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 30 day returns

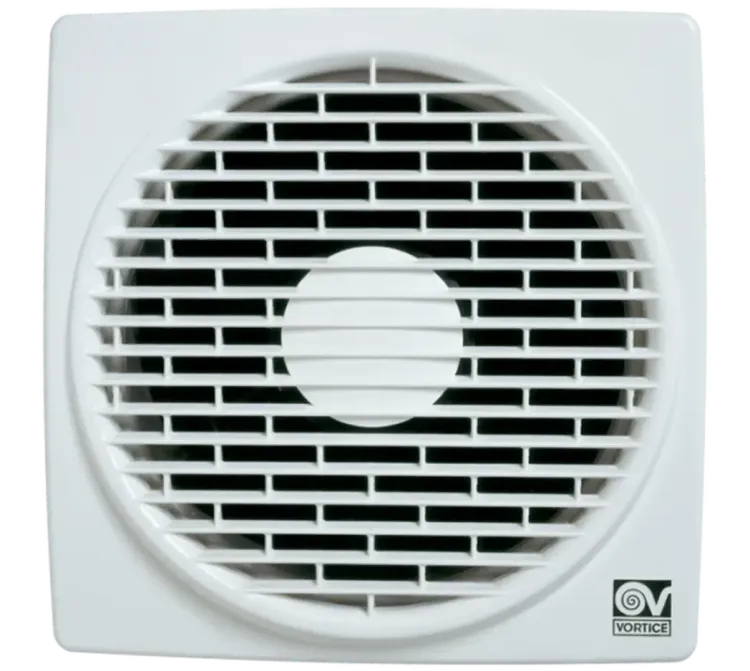

6” axial fan from Vortice for wall or window mounting. Suits intermittent extraction or intake — reversibility is built in, so you can run it either way. Auto shutter closes when the fan’s off, stopping cold air and odour blowback.

ABS plastic housing is UV resistant. Motor is thermally protected with self-lubricating bushings. Impeller is screw-type thermoplastic with wing profile blades.

  • Max extract airflow: 235 m³/h
  • Noise: 37.5 dB(A) at 3m
  • IP X4
  • Voltage: 220–240V, 50–60Hz
  • Insulation Class II
Specifications

Voltage

220–240V

Frequency

50–60 Hz

Max Absorbed Power

25W

Max Absorbed Power at 60Hz

25W

Max Absorbed Current

0.11A

Max Airflow Extract

235 m³/h (65.3 l/s)

Max Airflow Intake

150 m³/h (41.7 l/s)

Fan Speed Extract

1340 RPM

Fan Speed Supply

2040 RPM

Sound Pressure Lp

37.5 dB(A) at 3m

IP Rating

IP X4

Insulation Class

Class II

Nominal Duct Diameter

150mm

Discharge Hole Diameter

150mm

Installation Hole Diameter

185–190mm

Max Ambient Temp Continuous

50°C

Housing Material

UV resistant ABS plastic

Weight

2.07 kg

Certifications

CE, UKCA, CB Test Certificate, EAC, G-Mark, C-Tick
