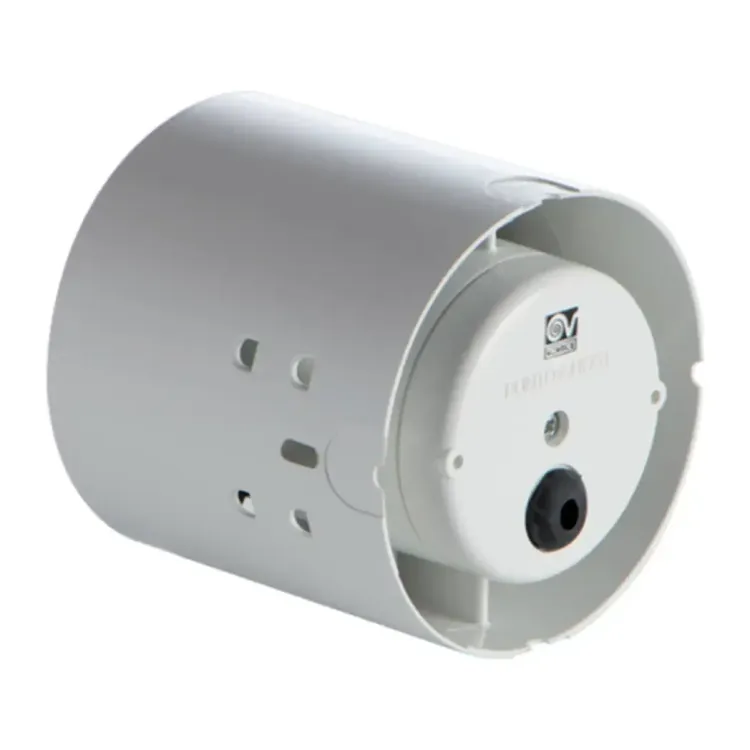

Vortice MG 100 4 Inch Inline Axial Fan 240V IPX4 11100

Photo is representative

Vortice MG 100 4 Inch Inline Axial Fan 240V IPX4 11100

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 11100
GTIN —
Stock status: In stock

priced individually

Net price: £62.95

Gross price

£75.54

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

100mm inline axial fan from Vortice, designed for in-duct installation on standard 100mm/4” systems. UV-resistant thermoplastic housing with screw-type impeller and wing profile blades.

Motor is Class II, ball bearing (LL), with built-in thermal overload protection. Compatible with Vortice speed controllers.

  • Max airflow: 80 m³/h (22.2 l/s)
  • Noise: 39 dB(A) at 3m
  • Max pressure: 25 Pa
  • Supply: 220–240V, 50Hz
  • IPX4, max ambient temp 40°C
Specifications

Voltage

220–240 V

Frequency

50 Hz

Max Absorbed Power

18 W

Max Absorbed Current

0.10 A

Max Airflow

80 m³/h (22.2 l/s)

Max Pressure

25 Pa (2.6 mmH2O)

Noise Level Lp

39 dB(A) at 3 m

Motor Speed

2415 RPM

IP Rating

IPX4

Insulation Class

Class II

Max Ambient Temperature

40 °C

Duct Diameter

100 mm (4")

Housing Material

UV resistant plastic

Weight

0.43 kg

Dimensions

Ø99 mm (A), 92 mm (B), 89 mm (C)

Certifications

CE, CCC, EAC, G-Mark, UKCA

Documents

datasheet 11100 Datasheet
