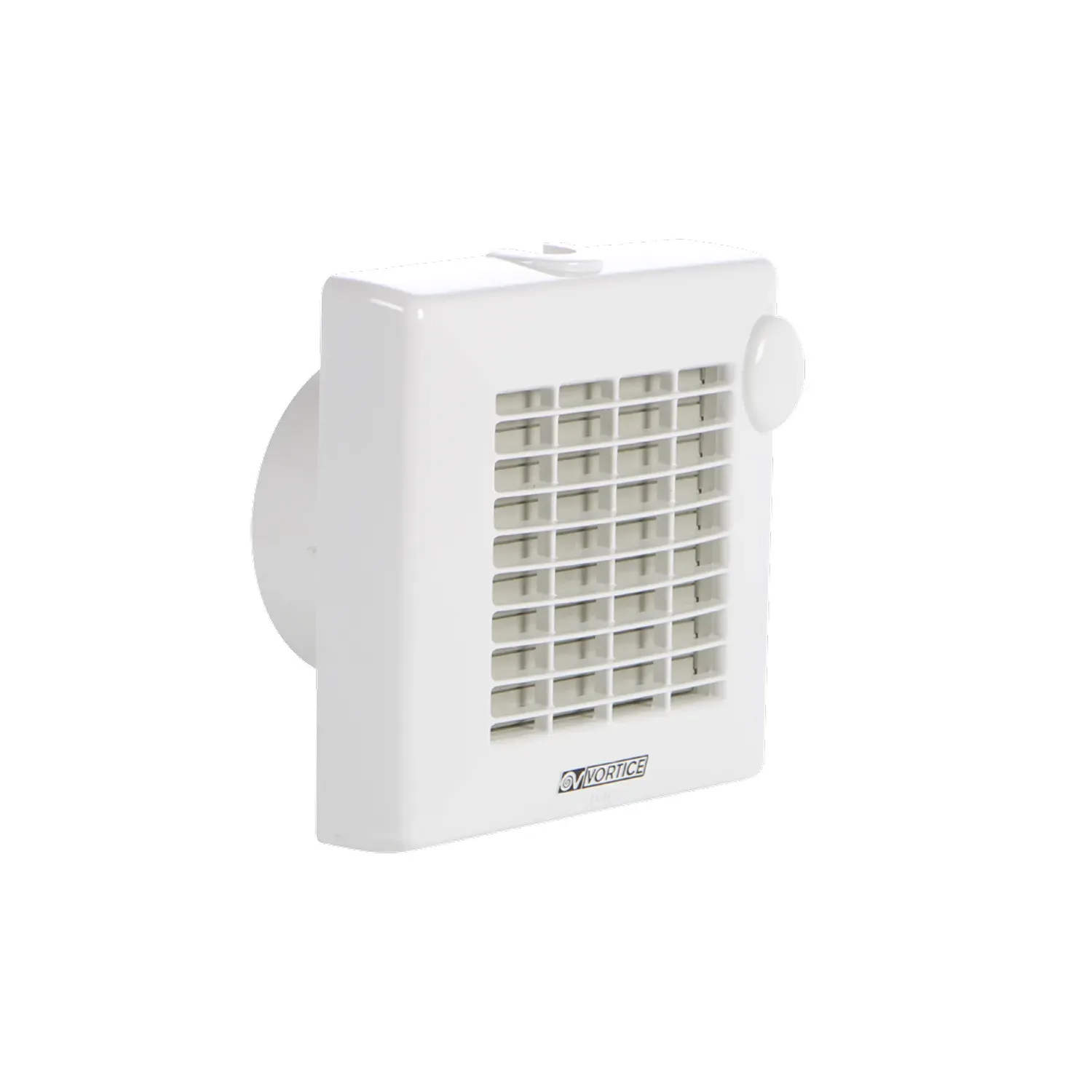

Vortice M 100 4A 100mm Automatic Shutter Axial Wall Fan 220-240V White

Photo is representative

Vortice M 100 4A 100mm Automatic Shutter Axial Wall Fan 220-240V White

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 11221
GTIN
Stock status: In stock

priced individually

Net price: £63.66

Gross price

£76.40

Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 30 day returns

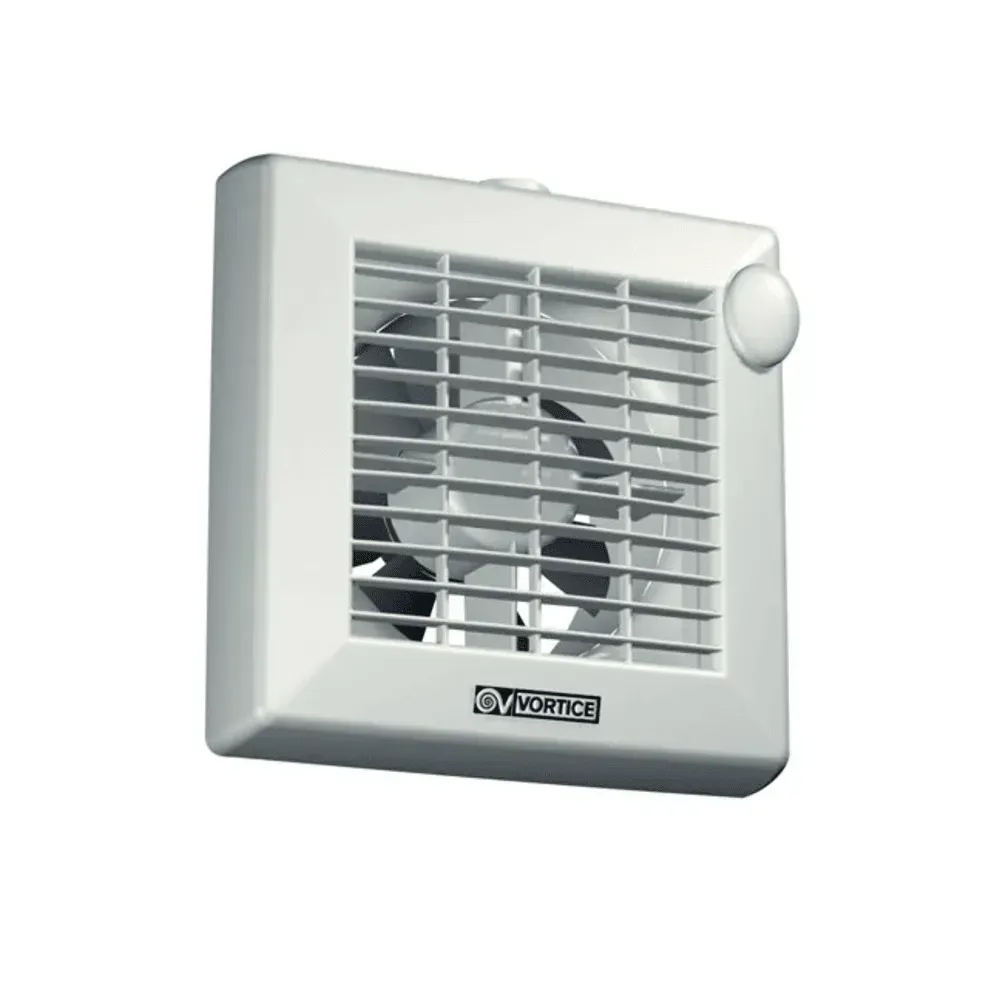

100mm axial fan for wall or window installations. The M 1004” A runs an automatic shutter — louvres open and close on their own, no manual damper needed.

UV-resistant thermoplastic housing. Motor is thermally protected with self-lubricating bushings and a screw-type impeller with wing profile blades.

  • Airflow: 90 m³/h max
  • Noise: 37.5 dB(A) at 3m
  • IP X4 — suitable for bathroom/wet area installation
  • 18W, 0.1A draw
  • Class II insulation
Specifications

Nominal Diameter

100 mm

Discharge Hole Diameter

99 mm

Voltage

220-240 V

Frequency

50 Hz

Max Absorbed Power

18 W

Max Absorbed Current

0.1 A

Max Airflow

90 m³/h (25 l/s)

Max Pressure

29 Pa (3 mmH2O)

Speed

2300 RPM

Sound Pressure Lp

37.5 dB(A) at 3 m

IP Rating

IP X4

Insulation Class

Class II

Max Ambient Temperature (Continuous)

50°C

Weight

0.6 kg

Dimensions (A x B x C x D)

159 x 160 x 100 x 47 mm

Inlet Type

Automatic shutter

Material

UV resistant plastic

Certifications

CE, UKCA, CB Test Certificate, EAC, CCC, C-Tick, G-Mark
