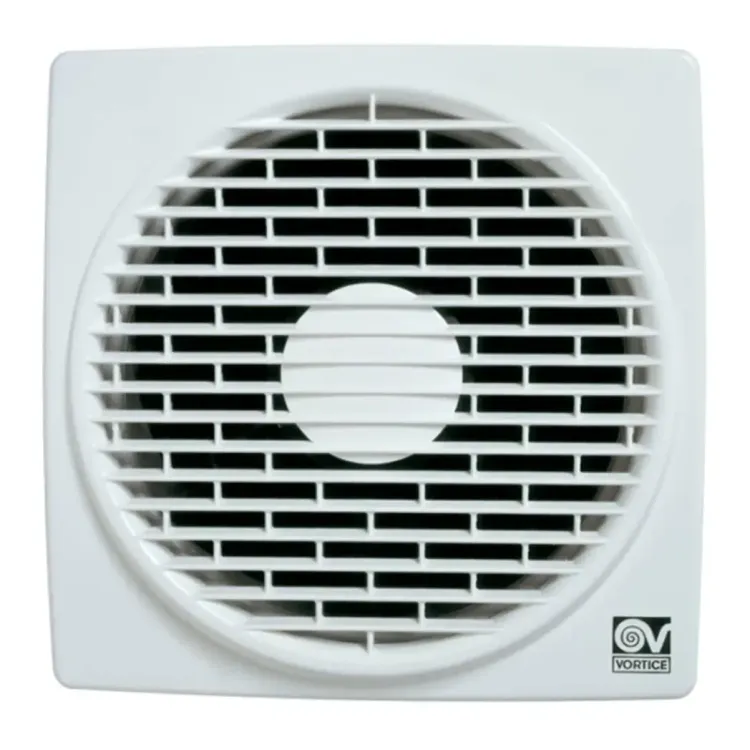

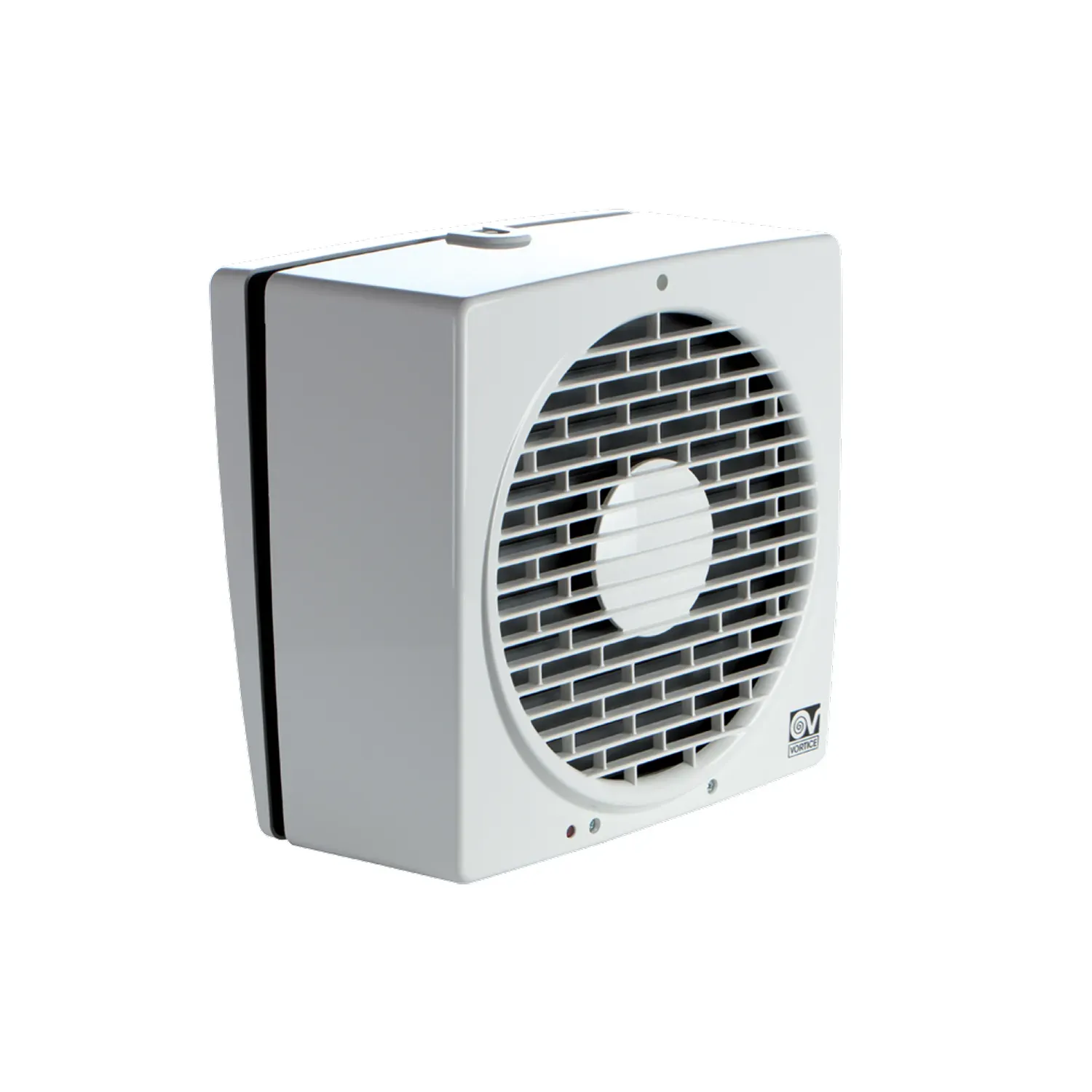

Vortice 300 12 AR 12 Inch Wall Window Axial Fan 220-240V White

Photo is representative

Vortice 300 12 AR 12 Inch Wall Window Axial Fan 220-240V White

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 12412
GTIN
Stock status: 3 in stock

priced individually

Net price: £490.08

Gross price

£588.09

Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 30 day returns

12 inch axial fan for wall or window mounting. Runs in both directions — intake or extraction — with an automatic shutter that closes when the unit is off to block cold air and odours.

UV resistant ABS plastic housing. Motor is thermally protected with self-lubricating bushings and a screw-type thermoplastic impeller with wing profile blades.

  • Max airflow (extract): 1050 m³/h / 292 l/s
  • Sound pressure: 40.2 dB(A) at 3 m
  • Discharge hole diameter: 300 mm
  • Wall/glass hole required: 324–329 mm
  • IP rating: X4
Specifications

Voltage

220-240V

Frequency

50-60 Hz

Max Absorbed Power

45 W

Max Absorbed Power at 60 Hz

45 W

Max Absorbed Current

0.21 A

IP Rating

X4

Insulation Class

Class II

Max Airflow Extract

1050 m³/h / 292 l/s

Max Airflow Intake

700 m³/h / 194.4 l/s

Sound Pressure Lp at 3 m

40.2 dB(A)

RPM Exhaust

840

RPM Supply

1085

Discharge Hole Diameter

300 mm

Required Hole Diameter (wall/glass)

324-329 mm

Max Ambient Temp Continuous Operation

50°C

Max Ambient Temp at 60 Hz

40°C

Weight

6.13 kg

Overall Size A

390 mm

Overall Size B

393 mm

Overall Size C

31 mm

Overall Size D

147 mm

Housing Material

UV resistant ABS plastic

Certifications

CE, UKCA, CB Test Certificate, EAC, C-Tick, G-Mark
