Vortice 150 6 Inch Axial Wall Window Fan Pull Cord 220-240V 12611

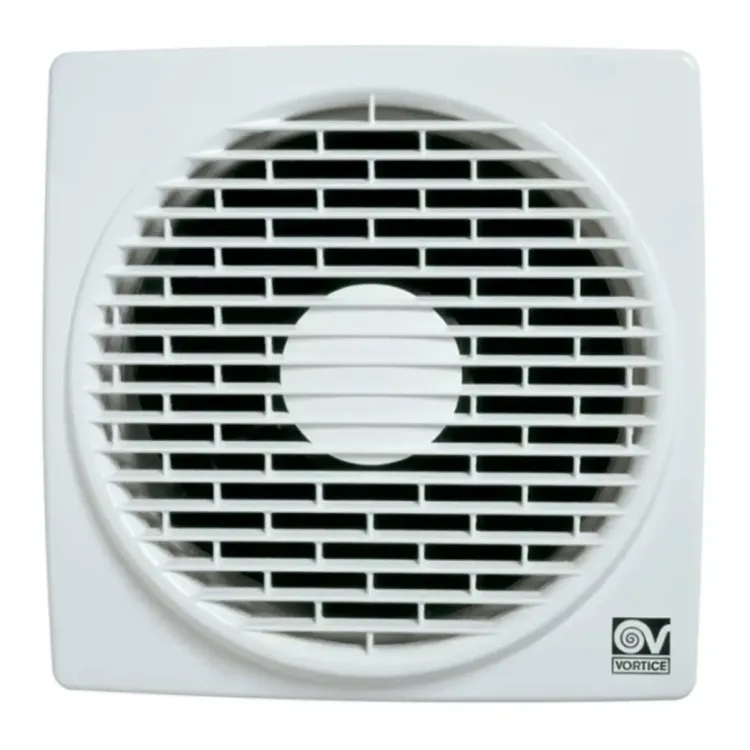

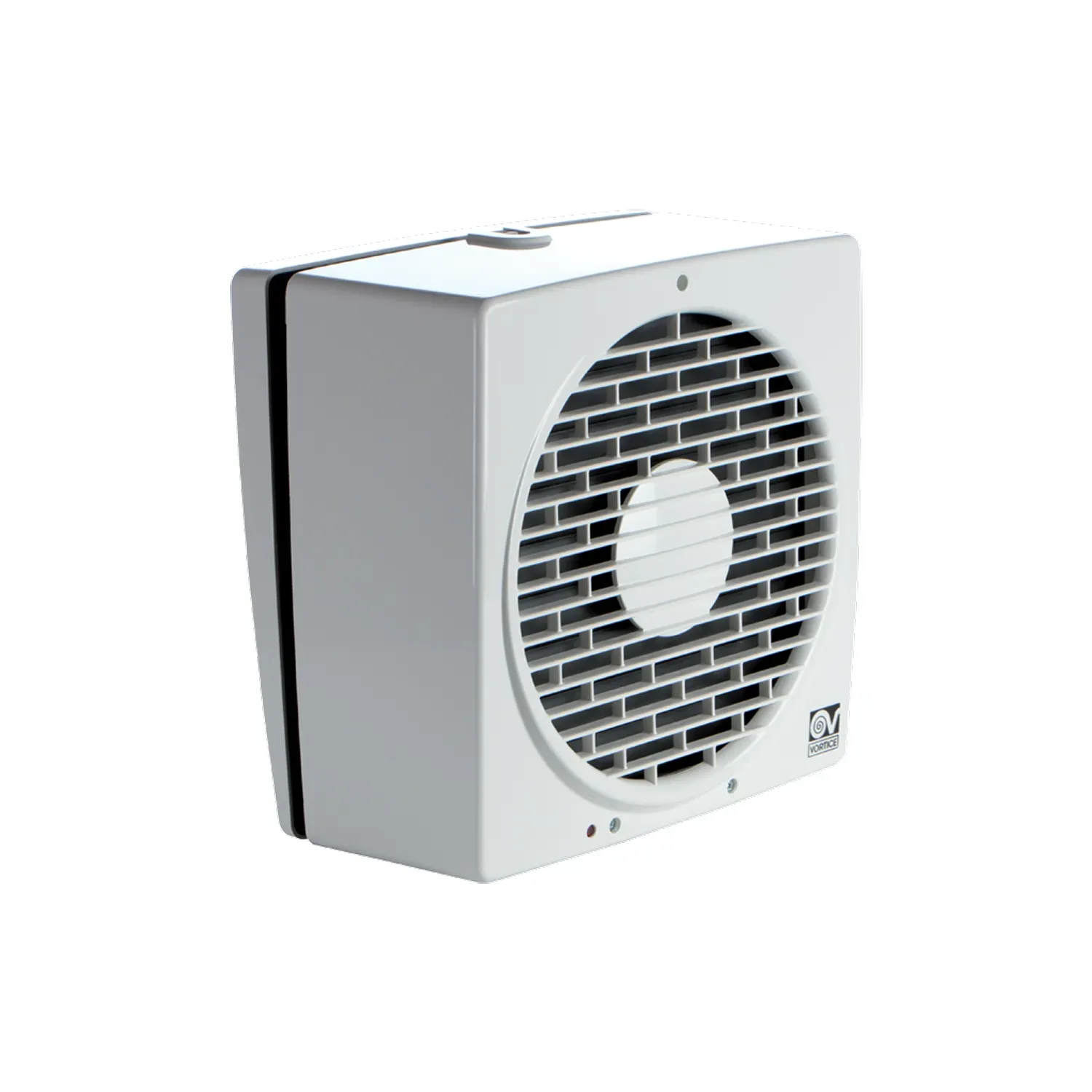

Photo is representative

Vortice 150 6 Inch Axial Wall Window Fan Pull Cord 220-240V 12611

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 12611
GTIN
Stock status: Out of stock

priced individually

Net price: £78.83

Gross price

£94.59

Intermittent axial fan for wall or window installation. The pull cord switch is built into the edge of the grille — no separate switch required. UV-resistant ABS housing, suitable for bathrooms and similar applications.

Screw-type thermoplastic impeller with wing profile blades. Motor is thermally protected with self-lubricating shaft bushings.

  • Airflow: 235 m³/h (65.3 l/s) max extraction
  • Noise: 37.5 dB(A) at 3m
  • Duct/hole diameter: 150mm nominal, 185–190mm wall/glass hole required
  • Supply: 220–240V, 50–60Hz, 18W max, 0.10A max
  • IP X4, Class II insulation
Specifications

Voltage

220-240 V

Frequency

50-60 Hz

Max Absorbed Power

18 W

Max Absorbed Power at 60 Hz

18 W

Max Absorbed Current

0.10 A

Nominal Diameter

150 mm

Hole Diameter (Wall/Glass)

185-190 mm

Max Airflow Extract

235 m³/h (65.3 l/s)

Noise Level Lp

37.5 dB(A) at 3 m

Speed

1340 RPM

IP Rating

X4

Insulation Class

Class II

Max Ambient Temp Continuous Operation

50°C

Weight

2.07 kg

Housing Material

UV resistant ABS plastic

Certifications

CE, UKCA, EAC, G-Mark, CB Test Certificate
