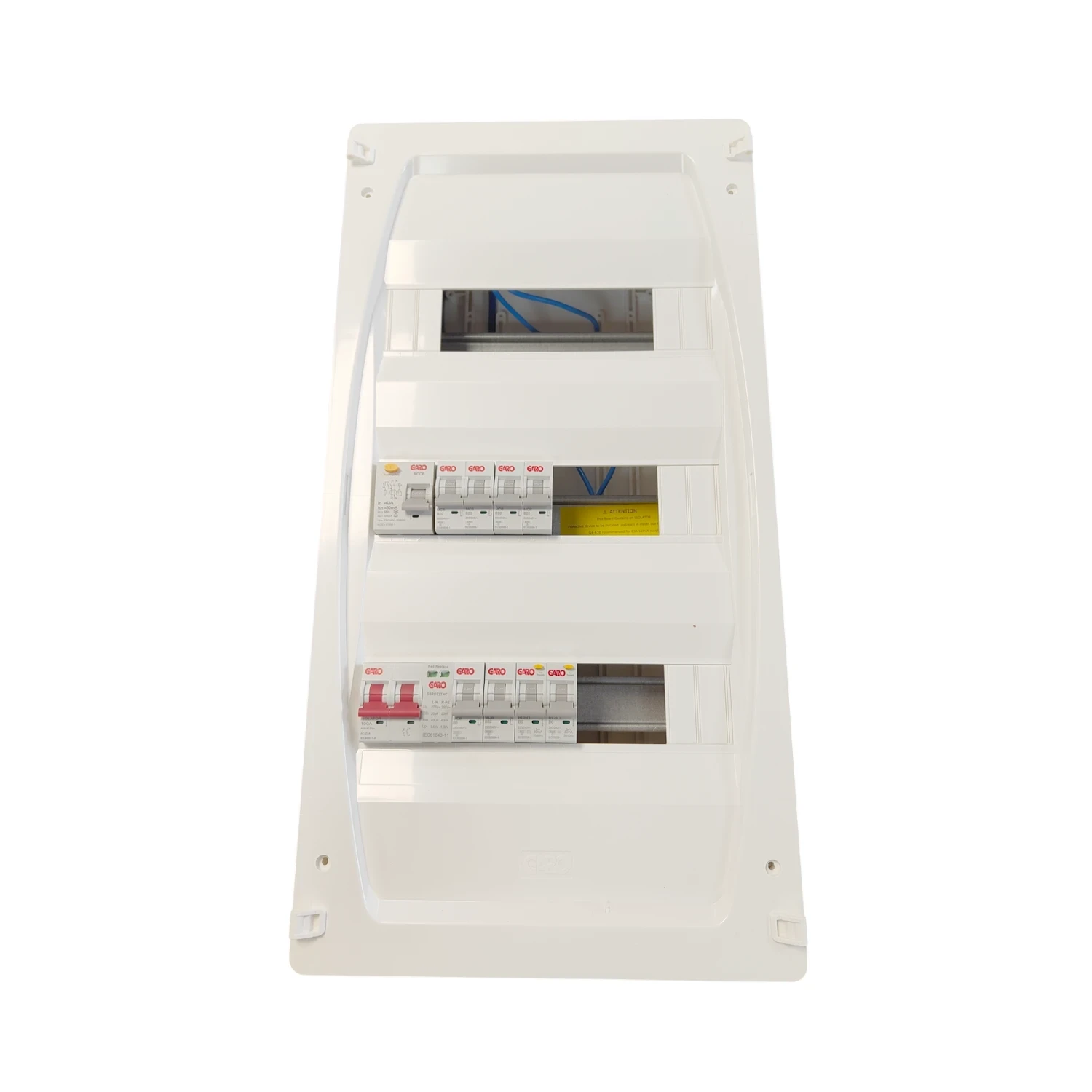

Garo Consumer Unit 3 Row 36 Module 8 Way Pre-Wired Main Isolator SPD IP40

Photo is representative

Garo Consumer Unit 3 Row 36 Module 8 Way Pre-Wired Main Isolator SPD IP40

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code G336I-8S
GTIN —
Stock status: 4 in stock

priced individually

More arriving soon

Net price: £169.11

Gross price

£202.94

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

3-row, 36-module domestic consumer unit from Garo. Comes pre-wired with a 100A DP main isolator, 1 RCCB, 2 RCBOs, 6 MCBs, and a 1-module DP surge arrestor — 23 free ways remaining. Halogen-free plastic enclosure tested to EN 62208 / IEC 60695-2-11. Complies with EN 61439-3 and IS 10101.

  • 80A rated current, 6 kA short-circuit capacity (IEC 60898-1)
  • 100A DP isolator, 80A maximum backup protection
  • Main terminals: 25mm² L, N and E
  • IP40, surface mount, white RAL 9003
  • Operating temp: -25 to +40 °C
Specifications

Rated Current

80A

Rated Voltage

230 V AC

Frequency

50/60 Hz

Short-Circuit Capacity

6 kA (IEC 60898-1)

Main Device

100A Double Pole Isolator

Outgoing Devices

1 x RCCB, 2 x RCBO, 6 x MCB

Surge Protection

Double Pole Surge Arrestor 1 module

Maximum Backup Protection

80A

Total Ways

36

Free Ways

23

IP Rating

IP40

Main Terminals

25mm² L, N and E

Dimensions (H x W x D)

544 x 285 x 118 mm

Ambient Temperature

-25 to +40 °C

Enclosure

Halogen-free plastic, EN 62208, tested to IEC 60695-2-11

Enclosure Colour

White RAL 9003

Standard

EN 61439-3 (IS 10101)

What's included

1x 100A Isolator

1x 63A RCCB

1x Surge Protection

1x B6 MCB

4x B20 MCBs

1x B32 MCB

2x B6 RCBOs
