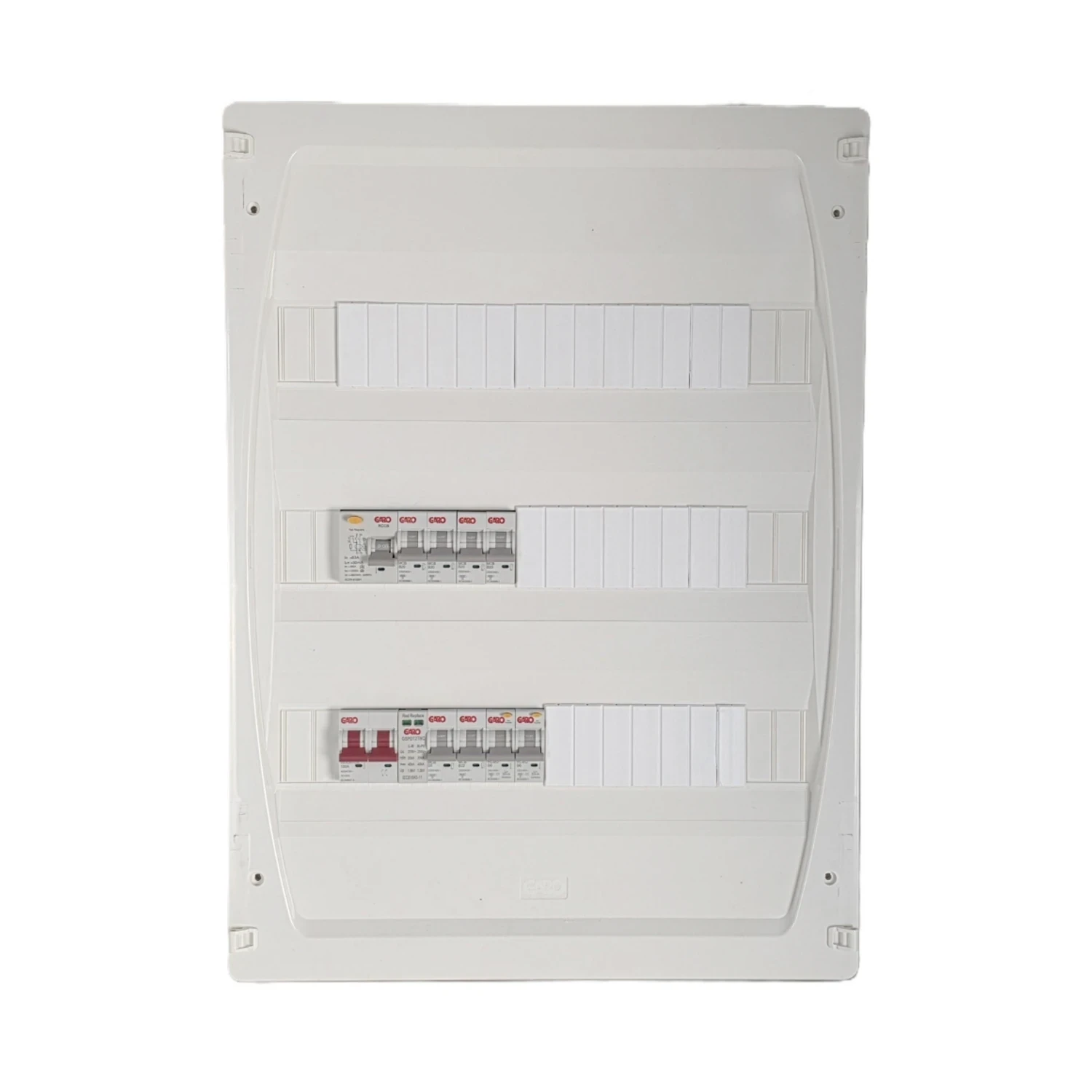

Garo Surface Consumer Unit 3 Row 54 Way Pre-Wired Main Isolator SPD IP40
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
G354I-8S
GTIN
—
Stock status:
2 in stock
priced individually
More arriving soon
Net price: £195.33
Gross price
£234.39
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Garo G354I-8S is a 3-row, 54-module surface-mount consumer unit supplied pre-wired for domestic distribution. Comes fitted with a 100A DP main isolator, a DP surge arrestor, one RCCB, two RCBOs, and six MCBs — leaving 41 free ways for outgoing circuits.
Halogen-free plastic enclosure, rated IP40. Compliant with EN 61439-3 (IS 10101).
- Rated current: 80A, 230 V AC, 50⁄60 Hz
- Short-circuit capacity: 6 kA (IEC 60898-1)
- Main terminals: 25mm² L, N and E
- Dimensions: 544 mm H × 393 mm W × 118 mm D
- Operating temperature: -25 to +40 °C
