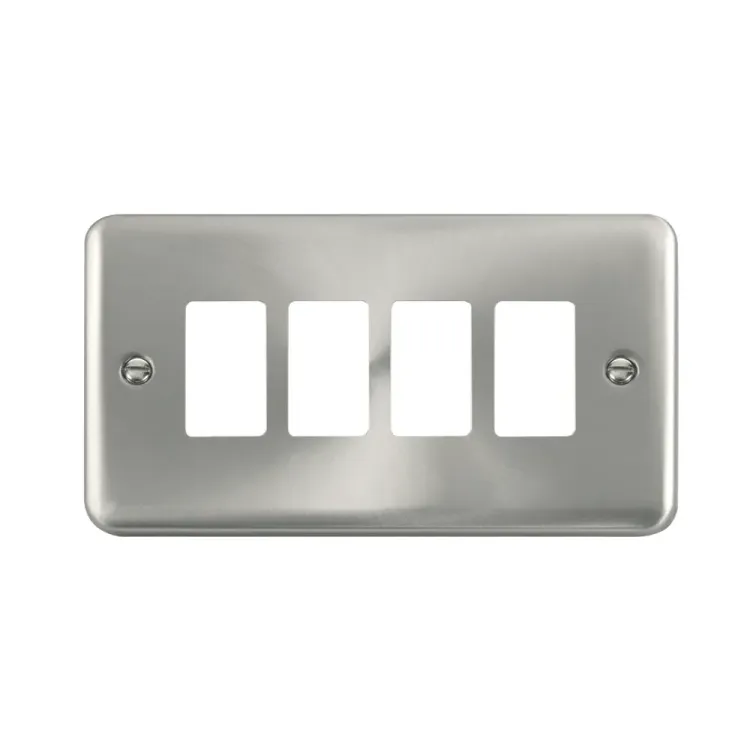

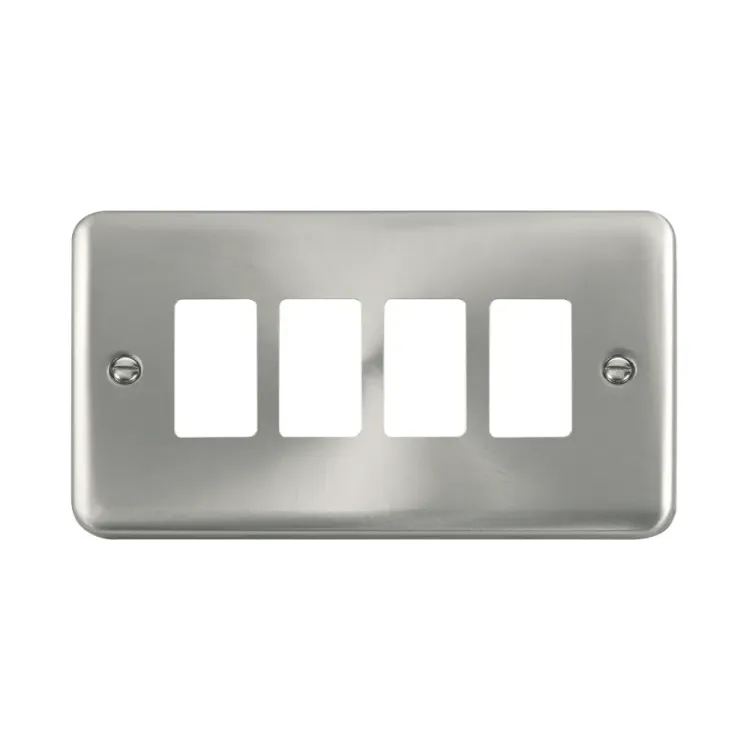

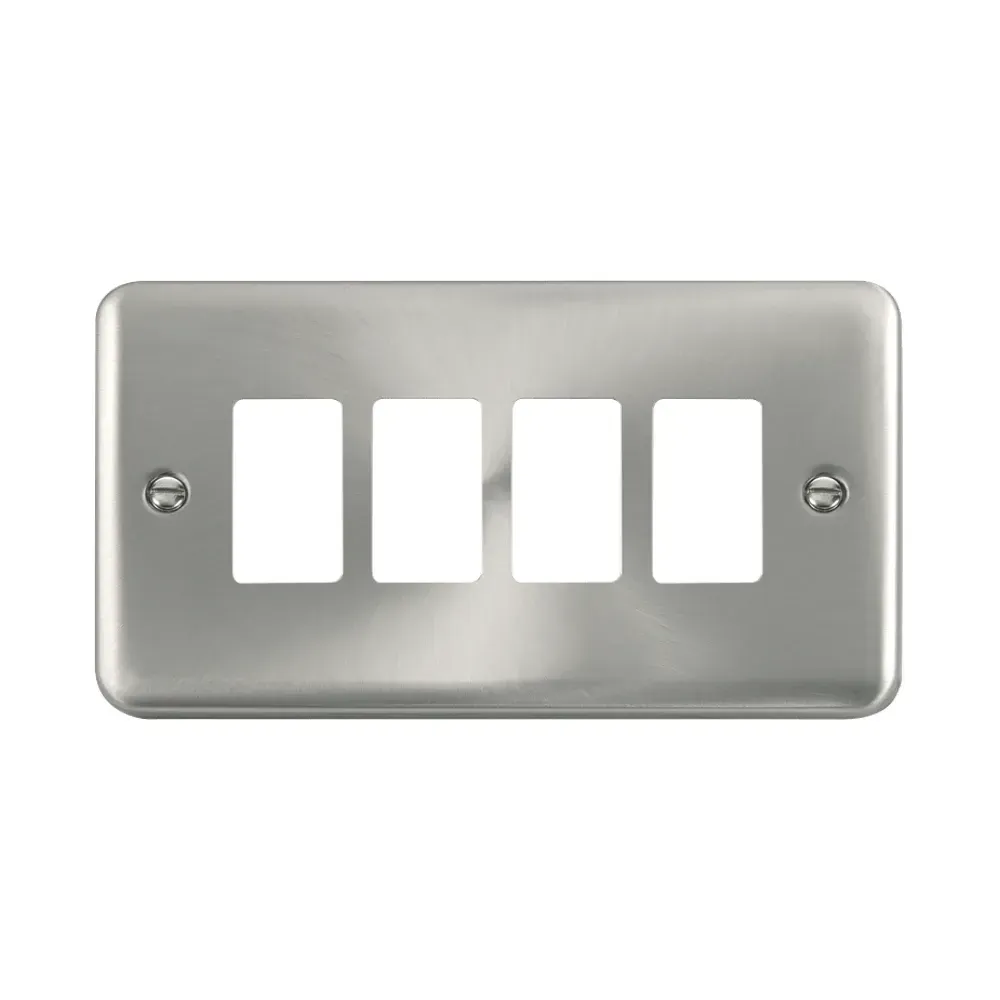

Click Deco Plus Satin Chrome 4 Gang GridPro Frontplate DPSC20404
Professional 4 gang GridPro frontplate in premium satin chrome finish for modular electrical installations. Features robust stainless steel construction with 25mm minimum back box depth compatibility. Includes both black and white gaskets for versatile installation options. Designed for screw-in module systems with standard 120.6mm fixing centres. Complies with BS 5733 standards with IP20 indoor rating. Professional-grade brass fixing lugs ensure secure mounting. Dimensions: 146mm x 88mm x 8mm, extending to 149mm x 91mm x 9mm with gasket fitted. Backed by Click’s 20-year warranty for long-term reliability in commercial and domestic applications.
Product Information
Product Features
Installation Guidelines
Back Box Requirements
Requires standard 25mm minimum depth back box with 120.6mm horizontal fixing centres for secure mounting and module accommodation.
Module Installation
Screw-in modules install directly into frontplate without separate yokes. Earth cables must be sleeved before connection to terminals.
Gasket Selection
Choose black gasket for dark wall finishes or white gasket for light surfaces. Gasket increases overall dimensions to 149mm x 91mm.
Applications & Uses
Modular Systems
Ideal for custom electrical configurations requiring mix of sockets, switches, data points and media connections in single frontplate.
Commercial Installations
Suitable for office environments, retail spaces and public buildings where modular flexibility and professional appearance are required.
Standards & Safety
- British Standards Complies with BS 5733 for domestic and commercial electrical installations. CE marking confirms European conformity requirements.
- Indoor Rating IP20 ingress protection suitable for standard indoor environments. Operating temperature range -5°C to +40°C covers typical building conditions.
Frequently Asked Questions
-
What back box depth is required for DPSC20404 installation?
Minimum 25mm back box depth required. Standard metal back boxes are compatible with the 120.6mm horizontal fixing centres.
-
Are gaskets included with the frontplate?
Yes, both black and white gaskets are supplied, allowing installation flexibility for different wall finishes and aesthetic requirements.
-
What modules are compatible with this GridPro frontplate?
Compatible with screw-in modules from the Click GridPro range. Modules install directly into the frontplate without requiring separate yokes.
-
What earth requirements apply for this frontplate?
Bare earth cables must be sleeved and wired to the earth terminal. Brass fixing lugs provide reliable earth continuity for metal back boxes.
-
Is this frontplate suitable for outdoor installation?
No, IP20 rating is for indoor use only. Operating temperature range is -5°C to +40°C for standard indoor environments.
