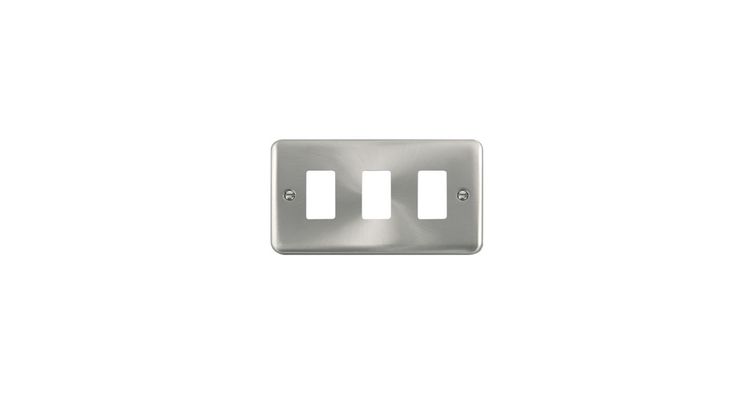

Photo is representative

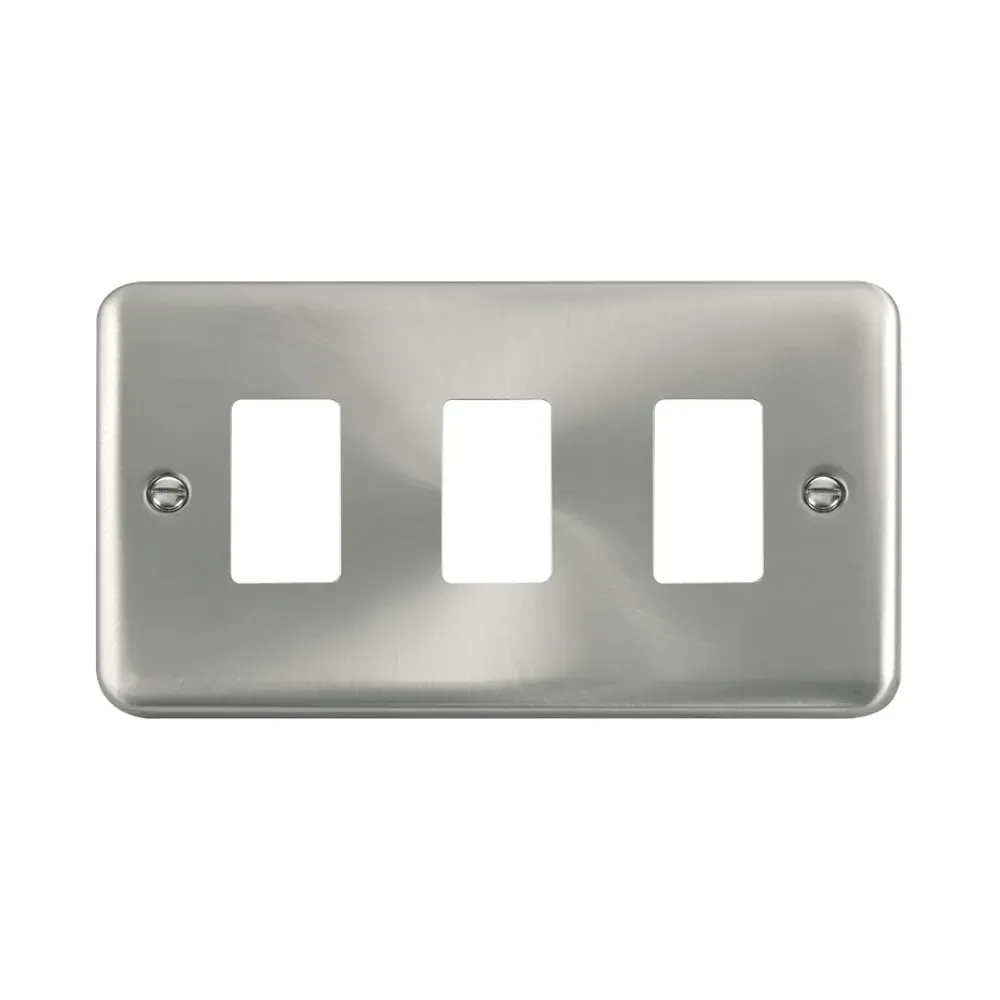

Click Deco Plus Satin Chrome 20A 3 Gang GridPro Frontplate DPSC20403
The Click Deco Plus 3 Gang GridPro Frontplate DPSC20403 features satin chrome finish with 20A rating per module position. This modular system accepts any GridPro modules without requiring a yoke for installation. Captive terminal screws enable quick wiring with 2.5mm² or 4mm² conductors. Compatible with standard 25mm depth BS4662 back boxes for flexible installation. Supplied with dual black and white gaskets for versatile mounting options. Large filleted cable entry holes improve cable management during installation. Professional grade construction with backed-off captive screws prevents terminal loss. Ideal for custom switching configurations combining data, power and control modules in domestic and commercial applications.
Product Information
Product Features
Applications & Uses
Domestic Installations
Custom switching and socket configurations for kitchens, living areas and bedrooms using modular GridPro system components.
Commercial Applications
Office and retail installations requiring flexible power, data and control combinations with professional grade 20A rating.
Data Power Combinations
Integrate network sockets, USB charging and power outlets in single frontplate for modern connectivity requirements.
Installation Guidelines
Back Box Requirements
Standard BS4662 flush back box with 25mm minimum depth. Compatible with existing installations and metal back boxes.
Module Installation
Screw GridPro modules directly into frontplate positions. Captive terminals prevent screw loss during wiring operations.
Cable Management
Large filleted cable entry holes accommodate multiple conductors. Backed-off terminal screws allow easy cable insertion and dressing.
Terminal Connections
Accept 3 x 2.5mm² or 2 x 4mm² conductors per module with 1.2Nm torque specification for reliable connections.
Standards & Safety
- BS 5733 Compliance Frontplate manufactured to BS 5733 standard with IP20 rating for indoor installation in dry locations.
- GridPro Module Standards Compatible modules comply with relevant standards including BS1363 for sockets and BS3676 for switches as applicable.
- Professional Warranty 20 year manufacturer warranty with UK Design Registration 3015621 providing professional installation confidence and support.
Frequently Asked Questions
-
What back box depth is required for the DPSC20403?
Minimum 25mm depth BS4662 compliant back box required. Standard metal back boxes are compatible with this GridPro frontplate.
-
Do I need a yoke for GridPro module installation?
No yoke required. GridPro modules screw directly into the frontplate with captive terminals for quick installation without additional mounting hardware.
-
What cable capacity do the terminals accept?
Each module position accepts 3 x 2.5mm² or 2 x 4mm² conductors with 1.2Nm terminal torque specification for secure connections.
-
Are GridPro modules interchangeable between frontplates?
Yes, all Click GridPro 20A rated modules are compatible with this frontplate, allowing flexible switching and socket configurations.
-
What gasket colours are supplied with the frontplate?
Both black and white nylon gaskets supplied to match different back box finishes and wall colours in professional installations.
