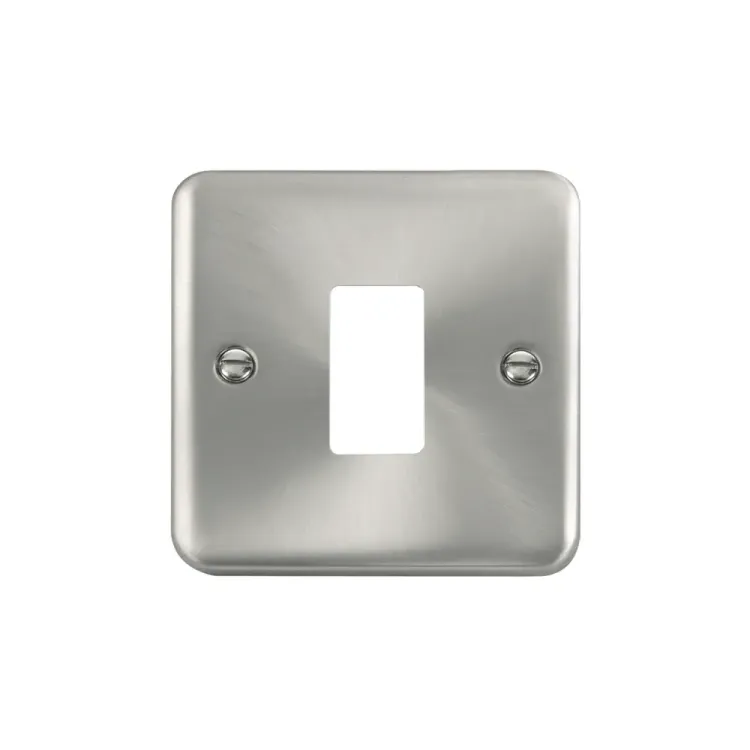

Photo is representative

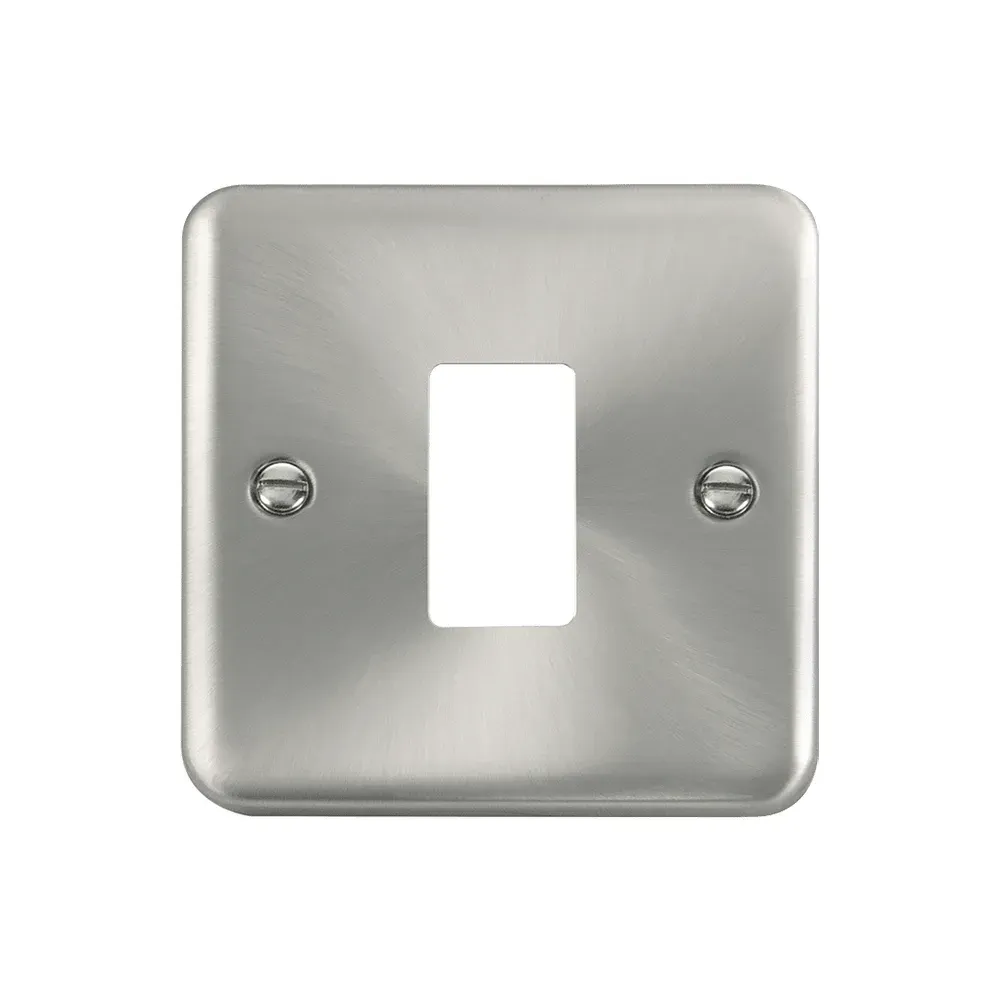

Click Deco Plus Satin Chrome 1 Gang GridPro Frontplate DPSC20401
Professional 1 gang GridPro frontplate from Click’s Deco Plus range in premium satin chrome finish. Requires 25mm minimum back box depth with screw-in module compatibility for flexible socket and switch configurations. Features robust stainless steel construction with brass fixing lugs and dual gasket options (black/white supplied). Complies with BS 5733 standard with IP20 rating for indoor installations. Precise 88mm x 88mm dimensions with 60.3mm fixing centres ensure standard back box compatibility. No yoke required - modules connect directly via screw terminals. Backed by Click’s 20-year warranty for professional confidence. Operational temperature range -5°C to +40°C suitable for most UK installations.
Product Information
Product Features
Applications & Uses
Modular Systems
GridPro frontplate enables flexible socket and switch configurations using screw-in modules without separate yokes or mounting frames.
Commercial Installations
Satin chrome finish suits office environments, retail spaces, and hospitality applications requiring premium aesthetic presentation with modular flexibility.
Installation Guidelines
Back Box Requirements
25mm minimum depth metal back box with standard 60.3mm fixing centres. Deep back boxes accommodate multiple module wiring configurations.
Module Connection
GridPro modules screw directly into frontplate terminals eliminating separate yoke requirements and simplifying installation for electricians.
Standards & Safety
- BS 5733 Compliance Manufactured to British Standard BS 5733 ensuring quality construction and dimensional accuracy for professional electrical installations.
- IP20 Indoor Rating IP20 protection suitable for standard indoor installations with protection against solid objects 12.5mm and larger but not moisture ingress.
Frequently Asked Questions
-
What modules are compatible with DPSC20401 frontplate?
All Click GridPro modules are compatible - no yoke required as modules screw directly into the frontplate terminals.
-
What back box depth is required for installation?
Minimum 25mm back box depth required. Standard 25mm metal back boxes are suitable for most GridPro module combinations.
-
Are both black and white gaskets included?
Yes, both black and white gaskets are supplied allowing coordination with different wall finishes and decorative schemes.
-
What are the exact fixing centre dimensions?
Horizontal fixing centres are 60.3mm, ensuring compatibility with standard UK back box fixing arrangements and easy replacement installations.
