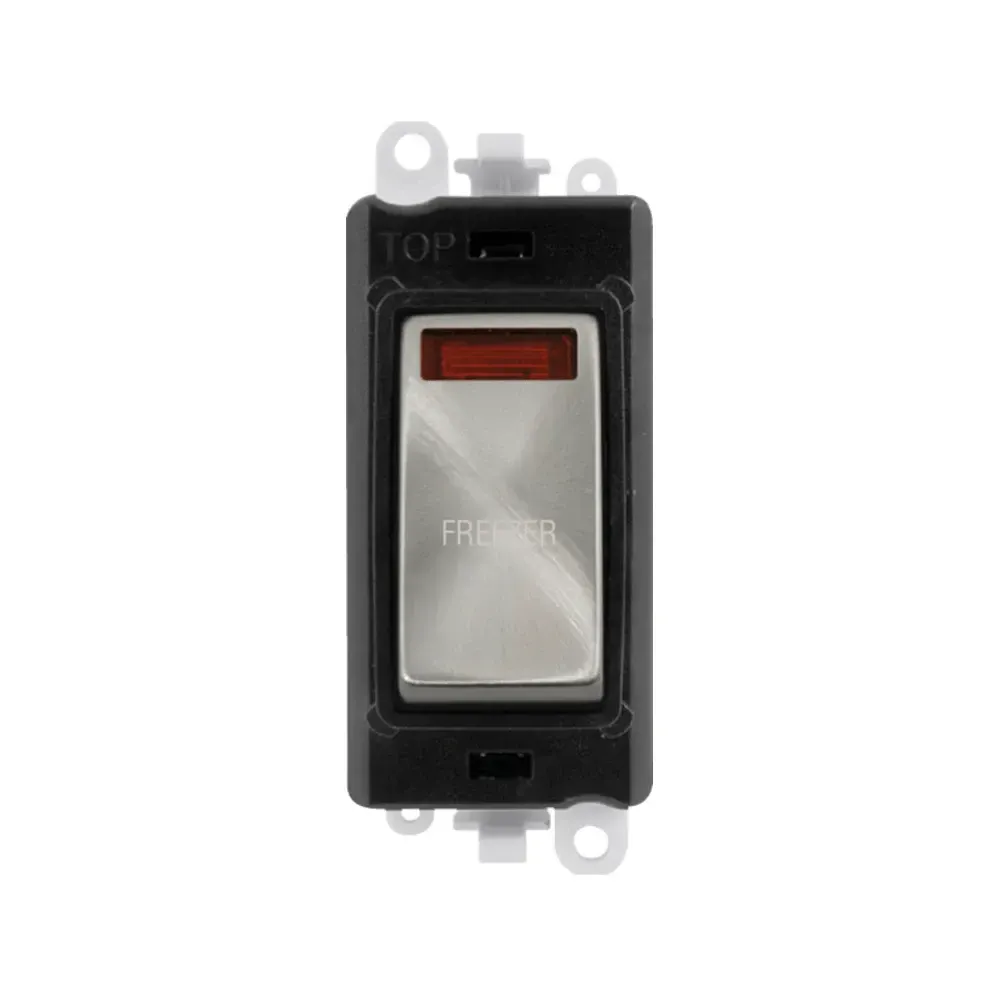

Click GridPro 20A Double Pole Switch Module, 2-Way, Neon, Freezer, Satin Chrome
Click GridPro 20A Double Pole Switch Module in Satin Chrome finish controls freezer power. 2-way switch, screw terminals, nylon body, urea switch. 250V, 50Hz, suitable for inductive loads. Black insert. Neon indicator.
Stock Code
GM2018NBKSCFZ
Available
On Application
This product is not available online. Contact us for more info.
Product Features
-
Anti Microbial Certified
No
-
Body And Insert
Nylon
-
Brand
Click
-
Contacts
Silver on-lay Copper / Brass
-
Dimensions WxHxD
24.5mm x 50mm x 22.5mm
-
Finish
Satin Chrome
-
Inductive Load Rating
20A
-
Insert Colour
Black
-
Load Rating Comments
Suitable for Inductive Loads
-
Minimum Back Box Depth
25mm (35mm Flat Plate)
-
Model
GM2018NBKSC-FZ
-
Neon Indicator
Yes
-
Operational Temperature
-5℃ to +40℃
-
Product Marking
Freezer
-
Range
GridPro
-
Rated Voltage Frequency
250V, 50Hz
-
SKU
GM2018NBKSCFZ
-
Switch
Urea
-
Switch Finish
Satin Chrome
-
Terminal Capacity Solid
3 x 2.5mm² or 2 x 4mm²
-
Terminal Size
Ø5mm
-
Terminals Terminal Screws
Brass, Steel & Yellow Passivated
-
Termination Type
Screw
-
Warranty
10years
-
Way Switch
Yes
