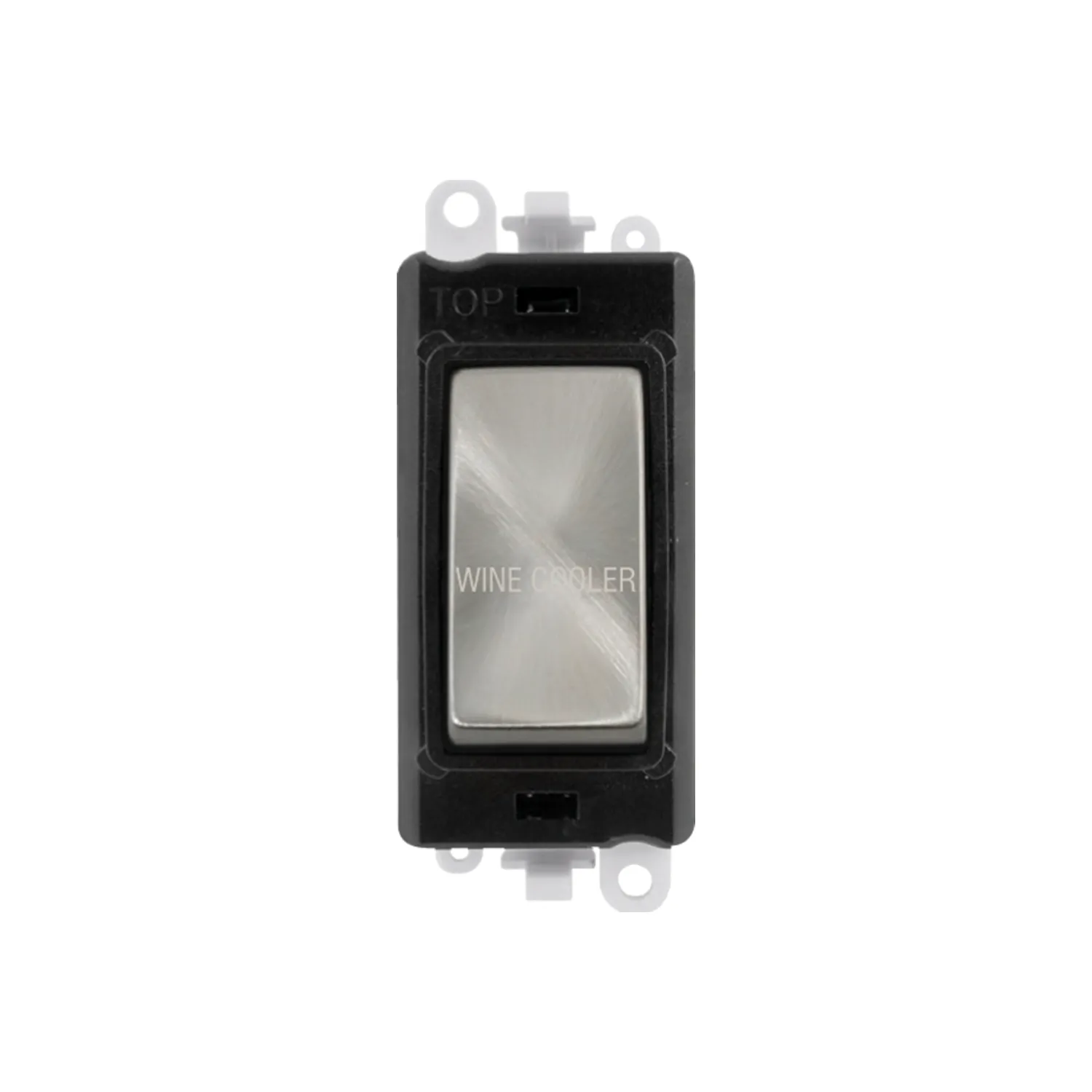

Photo is representative
Click GridPro Double Pole Switch Module 20AX Wine Cooler Satin Chrome
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
priced individually
Net price: £9.10
Gross price
£10.91
The Click GridPro GM2018BKSCWC is a 20AX double pole switch module designed for euro grid systems, providing complete circuit isolation with Wine Cooler identification marking. This module features a satin chrome finish with black insert and clear engraved marking, making it suitable for domestic and light commercial installations where dedicated wine cooler circuits require identification. Double pole switching provides complete isolation of both live and neutral conductors simultaneously.
Rated at 20AX at 250V AC, this module is designed for switching inductive loads such as wine coolers and refrigeration appliances. The module measures 24.5mm x 50mm x 22.5mm and features screw terminals with Ø5mm capacity accepting 3 x 2.5mm² or 2 x 4mm² conductors with 1.2Nm torque specification. Installation requires a minimum back box depth of 25mm, or 35mm when using flat grid plates. IP20 rating provides protection against finger contact for standard indoor installations.
This module is compatible with all euro grid system plates regardless of brand. The satin chrome finish with black insert coordinates with Click’s GridPro range, but the module can be installed in any standard euro grid plate featuring 25x50mm apertures. The Wine Cooler marking provides clear circuit identification for maintenance and safety purposes. BS EN 60669-1 certified with a 20-year manufacturer warranty, ensuring long-term reliability in professional installations.
