Click GridPro Intermediate Switch Module 20AX Satin Chrome Black
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
priced individually
Net price: £13.00
Gross price
£15.60

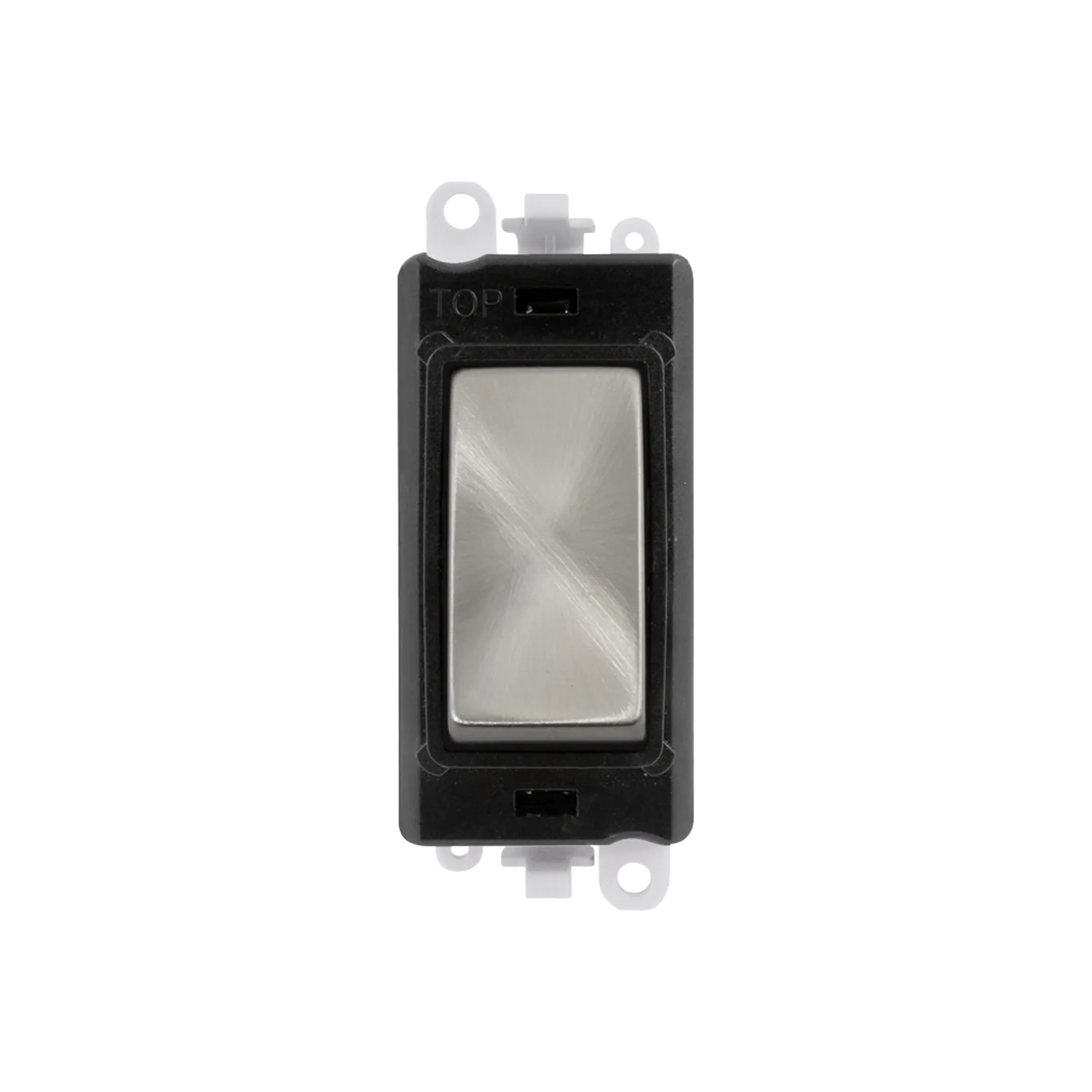

The Click GridPro GM2028BKSC is a 20AX intermediate switch module designed for euro grid systems, providing three-point lighting control in modular installations. This module features a satin chrome finish with black insert, making it suitable for domestic and light commercial applications requiring multiple switching locations. The intermediate function allows control of lighting circuits from three or more positions when used with two 2-way switches.
Rated at 20AX at 250V AC, this module is designed for switching inductive loads such as fluorescent lighting and LED drivers. The module measures 24.5mm x 50mm x 22.5mm and features screw terminals with Ø5mm capacity accepting 3 x 2.5mm² or 2 x 4mm² conductors with 1.2Nm torque specification. Installation requires a minimum back box depth of 25mm, or 35mm when using flat grid plates. IP20 rating provides protection against finger contact for standard indoor installations.
This module is compatible with all euro grid system plates regardless of brand. The satin chrome finish with black insert coordinates with Click’s GridPro range, but the module can be installed in any standard euro grid plate featuring 25x50mm apertures. BS EN 60669-1 certified with a 20-year manufacturer warranty, ensuring long-term reliability in professional installations.
