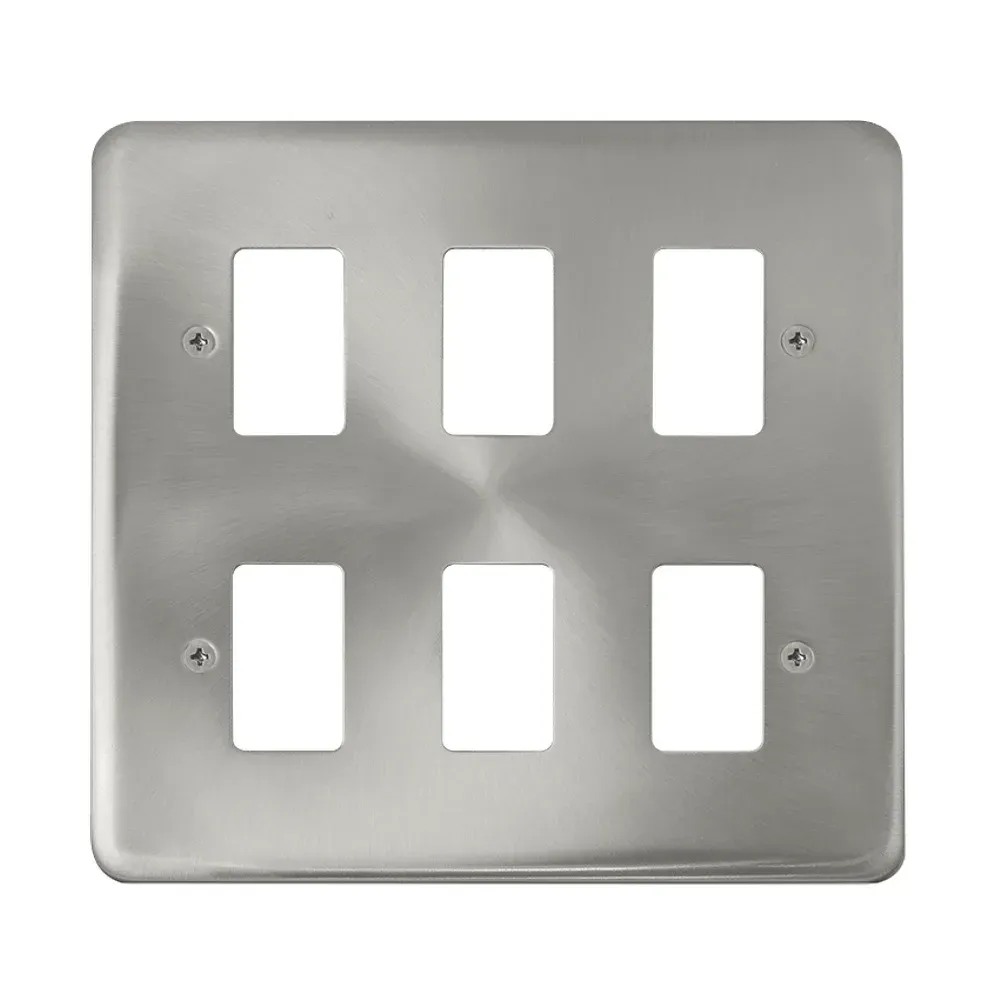

Click Deco Plus Satin Chrome 6 Gang GridPro Frontplate DPSC20506
6 gang GridPro frontplate from Click’s Deco Plus range featuring premium satin chrome finish on stainless steel construction. Designed for modular installations requiring 47mm minimum back box depth with WA512 compatibility. Features clip-on module mounting system with anti-tamper tabs for secure professional installations. Supplied with dual gasket options (black and white) for versatile aesthetic matching. Operates from -5°C to +40°C with IP20 rating suitable for internal applications. BS 5733 compliant construction ensures reliable performance in commercial and domestic installations. Requires 2 x GR20400 yokes for complete installation. Backed by Click’s comprehensive 20-year warranty for long-term reliability and professional confidence.
Online:
Product Features
| Gang Configuration | 6 Gang |
|---|---|
| Finish | Satin Chrome |
| Material | Stainless Steel |
| Mounting Depth | 47mm Minimum Back Box |
| Plate Dimensions | 148mm x 148mm x 8mm |
| Range | Deco Plus GridPro |
| IP Rating | IP20 |
| Operating Temperature | -5°C to +40°C |
| Standards Compliance | BS 5733 |
| Back Box Compatibility | WA512 Back Box |
| Yoke Requirements | 2 x GR20400 |
| Gasket Options | Black and White Supplied |
| Warranty | 20 Years |
| Installation Method | Clip-On Module System |
Applications & Uses
Commercial Installations
Ideal for office environments requiring multiple data and power connections with professional satin chrome finish matching modern interiors.
Domestic Media Centers
Perfect for home entertainment systems requiring organized cable management and multiple connection points in living areas.
Installation Guidelines
Back Box Requirements
Install WA512 back box ensuring 47mm minimum depth. Position yokes GR20400 securely before mounting frontplate assembly.
Module Mounting
Clip modules onto yoke tabs ensuring secure engagement. Test each module connection before final frontplate installation and commissioning.
Safety Procedures
Isolate mains supply completely before installation. Use appropriate cable sleeving on bare earth conductors as per BS 5733 requirements.
Standards & Safety
- BS 5733 Compliance Manufactured to British Standard 5733 ensuring consistent quality and safety performance in professional electrical installations.
- Operating Conditions Designed for -5°C to +40°C operation with IP20 rating suitable for internal applications in dry locations only.
Frequently Asked Questions
-
What back box depth is required for DPSC20506 installation?
Minimum 47mm back box depth required. Use Click WA512 back box for optimal compatibility and secure mounting of modular components.
-
Which yokes are needed for 6 gang GridPro installation?
Two GR20400 yokes required for complete installation. These provide secure mounting points for clip-on modules within the frontplate frame.
-
Can this frontplate be used outdoors or in wet areas?
No, IP20 rating limits use to internal dry locations only. For outdoor applications, specify IP66-rated products suitable for weatherproof installations.
-
What modules are compatible with this GridPro frontplate?
Compatible with Click GridPro modular range including data, media, and electrical modules. All modules clip securely onto GR20400 yoke system.
-
Are both gasket colours included with the frontplate?
Yes, both black and white nylon gaskets supplied for aesthetic flexibility in different installation environments and design requirements.
