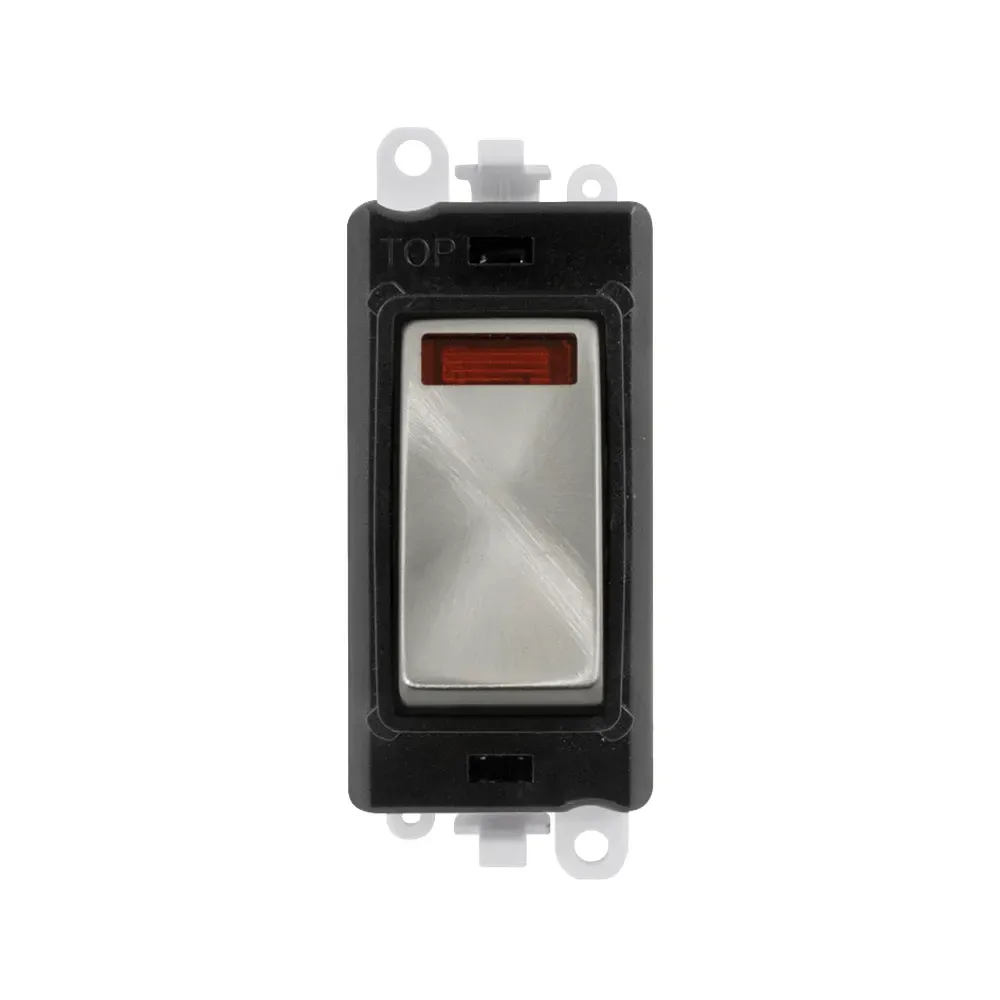

Click GridPro 20A Double Pole Switch Module, 2-Way, Neon, Satin Chrome
This GridPro switch module by Click features a satin chrome finish with a black insert, ideal for a stylish touch. It includes a 2-way switch and neon indicator for convenient use. Rated for 20A, it’s suitable for inductive loads and backed by a 10-year warranty.
Stock Code:
GM2018NBKSC
Online:
In stock
Price 12.03 £
incl. VAT, 20%
priced individually
Product Features
| SKU | GM2018NBKSC |
|---|---|
| Brand | Click |
| Model | GM2018NBKSC |
| Range | GridPro |
| Finish | Satin Chrome |
| Switch | Urea |
| Contacts | Silver on-lay Copper / Brass |
| Warranty | 10years |
| Dimensions | 24.5mm x 50mm x 22.5mm |
| 2 Way Switch | Yes |
| Body & Insert | Nylon |
| Insert Colour | Black |
| Switch Finish | Satin Chrome |
| Terminal Size | Ø5mm |
| Neon Indicator | Yes |
| Termination Type | Screw |
| Load Rating Comments | Suitable for Inductive Loads |
| Inductive Load Rating | 20A |
| Minimum Back Box Depth | 25mm (35mm Flat Plate) |
| Operational Temperature | -5℃ to +40℃ |
| Anti Microbial Certified | No |
| Rated Voltage, Frequency | 250V, 50Hz |
| Terminal Capacity - Solid | 3 x 2.5mm² or 2 x 4mm² |
| Terminals, Terminal Screws | Brass, Steel & Yellow Passivated |
