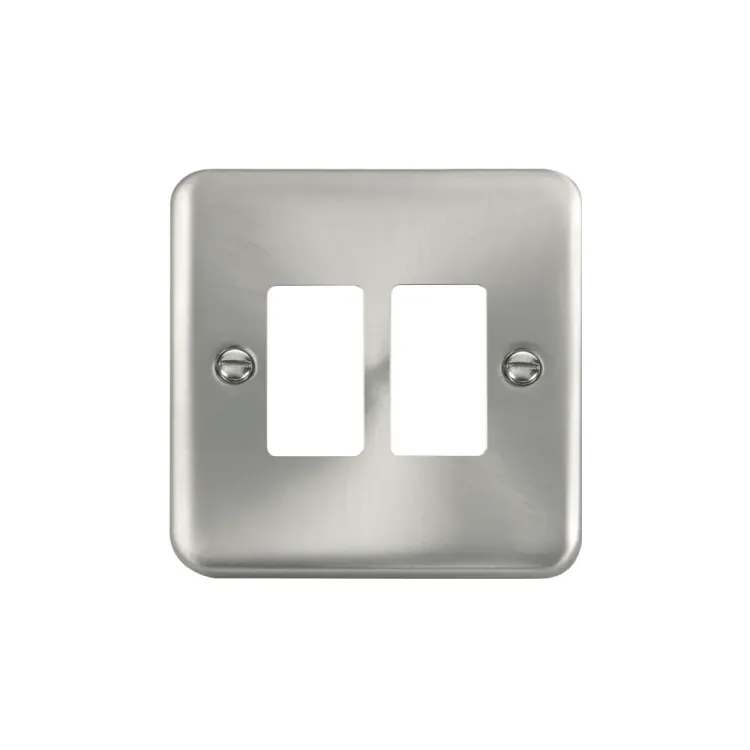

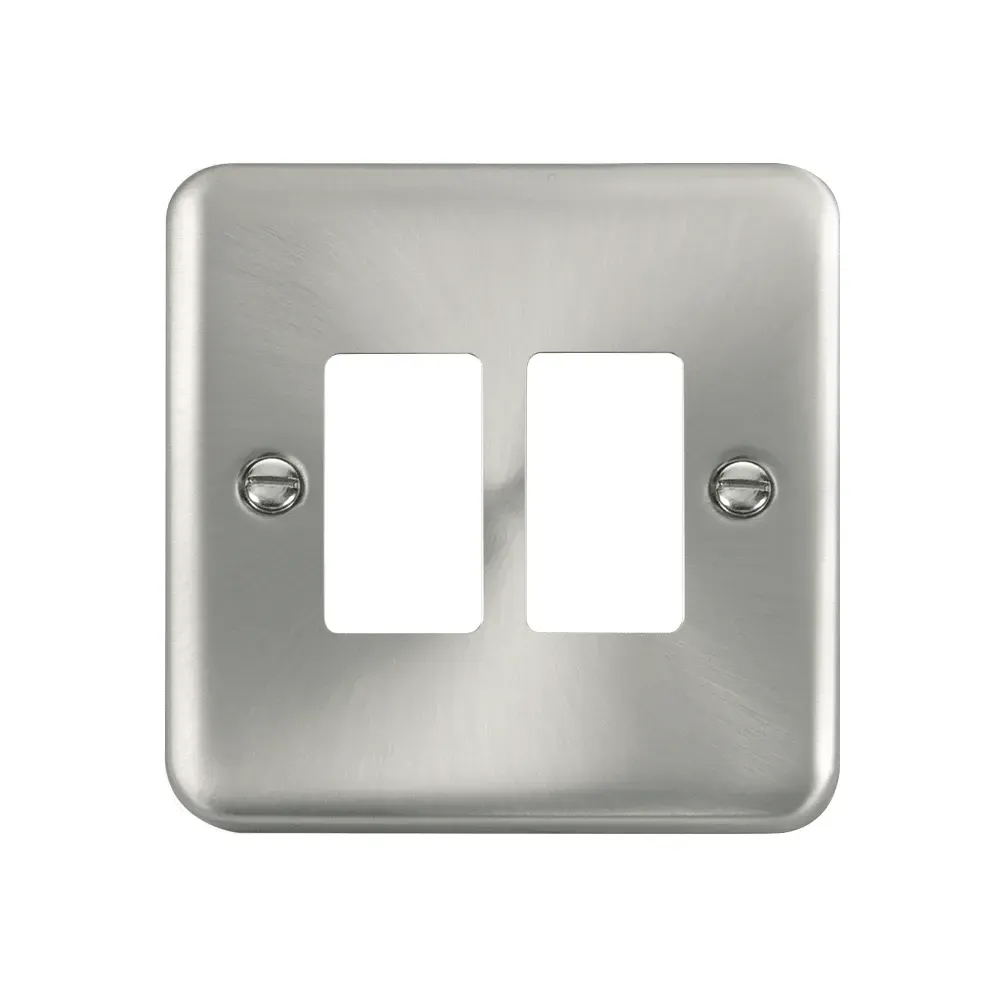

Click GridPro 2 gang satin chrome modular frontplate DPSC20402

Photo is representative

Click GridPro Satin Chrome 2 Gang Modular Frontplate 20A DPSC20402

Professional Click GridPro 2 Gang Frontplate in satin chrome finish with modular screw-in system. Compatible with all GridPro modules including 20A switches and 13A socket modules. Features stainless steel construction with brass terminals and standard back box compatibility. No yoke required for installation - modules screw directly into frontplate. Dual gasket supply (black/white) for professional finish. 25mm minimum back box depth required. BS 5733 compliant frontplate accepts BS 1363-4 socket modules and BS 5733 switch modules. Captive screw terminals with 1.2Nm torque specification for reliable connections. IP20 rated for indoor domestic and commercial applications.

Product Information

Stock Code DPSC20402
MPN —
GTIN —
Stock status: In stock
Price: £10.86
incl. VAT, 20% priced individually

Product Features
Gang Configuration 2 Gang
Current Rating 20A (modules) / 13A (socket modules)
Module System Screw-in modules - no yoke required
Finish Satin Chrome
Construction Stainless Steel frontplate with brass terminals
Back Box Compatibility Standard BS4662 flush mounted - 25mm minimum depth
Terminal Type Screw terminals (on modules) - 1.2Nm torque
Terminal Capacity Solid: 3 x 2.5mm² or 2 x 4mm²
IP Rating IP20
Standards Compliance BS 5733 frontplate / BS 1363-4 socket modules
Module Compatibility All Click GridPro 1-4 gang modules
Gasket Supply Dual gasket (black and white) included

Applications & Uses

Domestic Installations

Perfect for custom switching and socket configurations in homes. Modular system allows mixing of switches, sockets and media outlets.

Commercial Applications

Professional grade construction suitable for offices and commercial premises. 20A switch capability handles higher current loads.

Custom Configurations

Flexible module selection enables bespoke electrical solutions. Mix socket, switch, USB and media modules as required.

Installation Guidelines

Back Box Requirements

Standard BS4662 flush mounted back boxes required with 25mm minimum depth. No special mounting hardware needed.

Module Installation

Screw-in modules eliminate yoke requirements. Direct fixing to frontplate with standard terminal connections at 1.2Nm torque.

Cable Termination

Brass screw terminals accept 3 x 2.5mm² or 2 x 4mm² solid conductors. Earth terminals provided on modules.

Standards & Safety
  • BS Standards Compliance Frontplate complies with BS 5733. Socket modules meet BS 1363-4 requirements. Switch modules conform to BS 5733.
  • Safety Ratings IP20 rated for indoor use. Operational temperature -5°C to +40°C. Earth provision mandatory on all modules.
  • Professional Certification CE marked with UK Design Registration 3015621. ASTA approval for socket modules. Fuse specification BS 1362.

Frequently Asked Questions

  • What modules are compatible with the GridPro 2 gang frontplate?

    All Click GridPro screw-in modules are compatible including 20A switches, 13A socket modules, and media outlets. No yoke required for installation.

  • What back box depth is required for installation?

    Minimum 25mm back box depth required. Compatible with standard BS4662 flush mounted back boxes. Deeper boxes may be needed for specific modules.

  • What current ratings are available with GridPro modules?

    Switch modules rated at 20A resistive load, socket modules rated at 13A BS 1363. Frontplate accepts both rating types simultaneously.

  • Are the terminal connections suitable for professional installation?

    Yes, brass screw terminals with 1.2Nm torque specification. Capacity for 3 x 2.5mm² or 2 x 4mm² solid conductors per terminal.
