Photo is representative

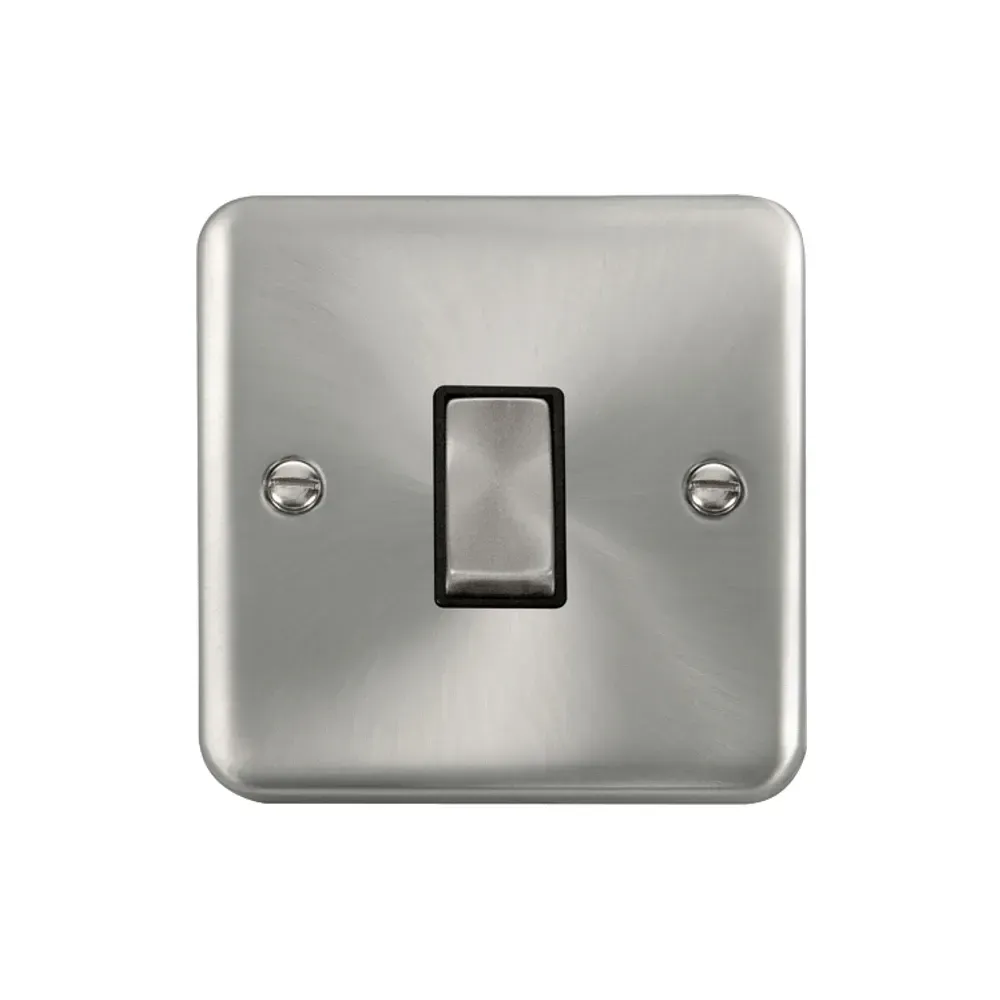

Click Deco Plus Satin Chrome 10AX 1 Gang Intermediate Switch Black Insert
Professional Click Deco Plus 10AX intermediate switch with satin chrome finish and black insert for 3+ way switching applications. Features contemporary ingot profile with captive screw terminals for secure connections. Designed for standard 16mm back box mounting with twin earth facility. Terminal capacity accommodates 4 x 1.5mm² or 2 x 2.5mm² conductors with angled terminal access for easy cable dressing. BS EN 60669-1 compliant with IP20 rating for indoor installations. Compatible with Click Deco modular system for consistent finish across installations. Ideal for professional lighting control circuits requiring intermediate switching functionality.
Online:
Product Features
| Current Rating | 10AX switching capacity |
|---|---|
| Gang Configuration | 1 Gang intermediate switch |
| Switch Type | Intermediate (3+ way switching) |
| Terminal Type | Captive screw terminals |
| Terminal Capacity | 4 x 1.5mm² or 2 x 2.5mm² |
| Mounting Depth | 16mm minimum back box |
| Finish | Satin chrome with black insert |
| Profile Design | Contemporary ingot profile |
| Standards Compliance | BS EN 60669-1:1999 + A1:2002 + A2:2008 |
| IP Rating | IP20 indoor protection |
| Operating Temperature | -5°C to +40°C |
| System Compatibility | Click Deco modular system |
| Fixing Centres | 60.3mm standard spacing |
| Dimensions | 88mm x 88mm x 8mm |
Installation Guidelines
Back Box Requirements
Standard 25mm metal back box recommended for secure fixing. Minimum 16mm depth ensures adequate terminal access and cable management space.
Terminal Connections
Captive screw terminals with angled access accommodate multiple conductor sizes. Twin earth facility ensures proper earthing for metal installations.
Cable Preparation
Strip conductors to 10mm length for optimal terminal contact. Angled terminal design allows neat cable dressing in confined spaces.
Applications & Uses
Multi-Point Lighting Control
Ideal for hallways, staircases, and large rooms requiring light control from three or more switch positions. Essential component in 3-way switching circuits.
Commercial Installations
Professional quality suitable for offices, retail, and hospitality applications. Durable satin chrome finish withstands high-use environments.
Residential Applications
Perfect for modern homes with open-plan layouts requiring multiple switching points. Contemporary ingot profile complements premium interior designs.
Standards & Safety
BS Compliance
Fully compliant with BS EN 60669-1:1999 + amendments ensuring safety and reliability. Professional quality meets stringent UK electrical standards.
IP20 Protection
IP20 rating provides protection against solid objects greater than 12.5mm. Suitable for dry internal locations with normal household conditions.
Frequently Asked Questions
-
What back box depth is required for DPSC425BK installation?
Minimum 16mm back box depth required. Standard 25mm metal back box provides adequate space for cable connections and secure mounting.
-
Can this intermediate switch handle lighting circuits?
Yes, 10AX rating suitable for lighting circuits up to 2300W. Compatible with LED, halogen, and conventional lighting loads within rating.
-
What cable sizes fit the captive terminals?
Terminals accommodate 4 x 1.5mm² conductors or 2 x 2.5mm² cables. Angled terminal access simplifies cable dressing and connection.
-
Is DPSC425BK compatible with existing Click Deco installations?
Fully compatible with Click Deco system. Consistent 88mm dimensions and fixing centres ensure seamless integration with existing installations.
-
What switching applications require intermediate switches?
Essential for 3+ way lighting control where lights are controlled from three or more switch positions. Commonly used in hallways, staircases.
