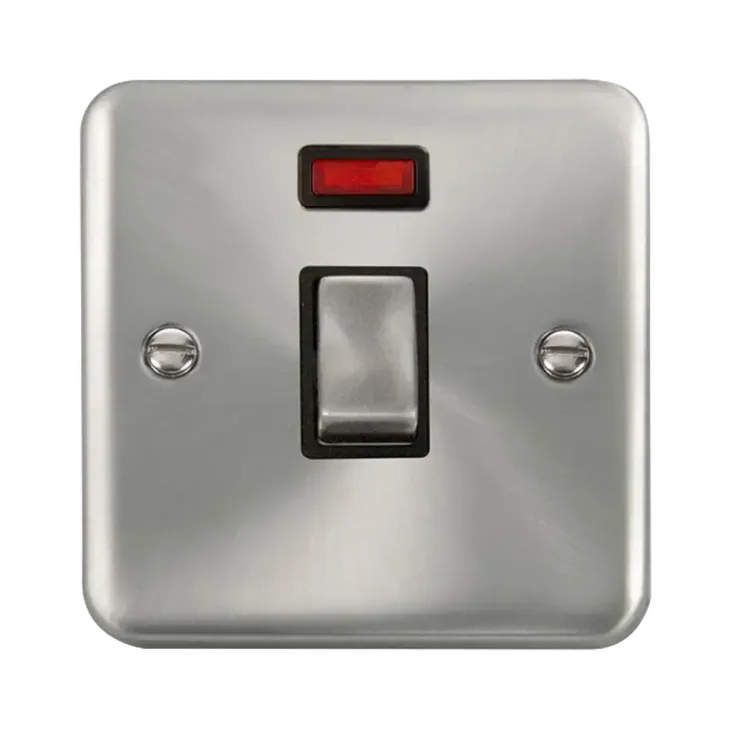

Photo is representative

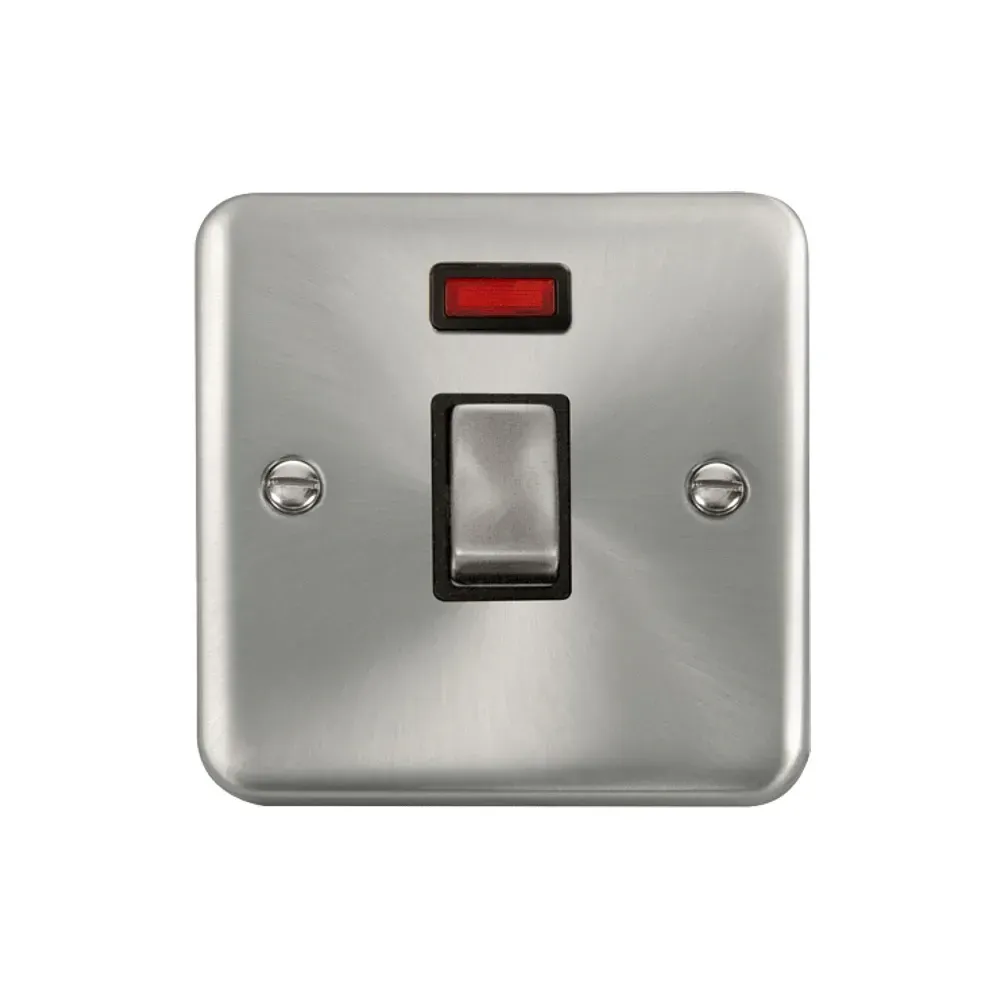

Click Deco+ Satin Chrome 20A Double Pole Switch Neon Indicator BS EN 60669
Professional 20A double pole plate switch with red neon indicator for high-current applications. Screw terminals with twin earth facility ensure secure connections for cooker circuits and immersion heaters. Satin chrome finish with black insert provides durable protection rated to IP20. Minimum 25mm back box depth required for straightforward installation. BS EN 60669-1 compliant design with 1.8Nm terminal torque specification. Accommodates 3 x 2.5mm² solid conductors per terminal. Operational temperature range -5°C to +40°C covers typical installation environments. 20-year warranty demonstrates Click quality construction.
Product Information
Product Features
Installation Guidelines
Terminal Connections
Brass screw terminals with 1.8Nm torque setting accommodate 3 x 2.5mm² conductors. Twin earth terminals provide secure earthing for metal installations.
Mounting Requirements
Single gang 25mm minimum back box depth with 60.3mm fixing centres. Standard metal boxes provide adequate space for high-current cable management.
Circuit Protection
Install with appropriate MCB or fuse protection for 20A circuits. Double pole switching isolates both live conductors for complete appliance disconnection.
Applications & Uses
Cooker Circuits
Mandatory isolation switching for electric cookers and hobs. Double pole configuration ensures complete appliance disconnection for maintenance and safety compliance.
Immersion Heaters
High-current water heating control with visual indication. Neon indicator confirms heating element status for efficient energy management and troubleshooting.
Commercial Applications
Industrial equipment isolation where 20A rating required. Professional construction withstands frequent switching in demanding electrical installations.
Standards & Safety
- Compliance Standards BS EN 60669-1 certified construction ensures regulatory compliance. UK Design Registration 3015621 confirms genuine Click quality and specification authenticity.
- Operating Parameters 250V AC operation with -5°C to +40°C temperature range covers typical installation environments. IP20 protection suitable for dry indoor locations only.
Frequently Asked Questions
-
What circuits require 20A double pole switching?
Cooker circuits, immersion heaters, electric showers, and other high-current appliances above 13A rating require 20A double pole isolation switching for safety compliance.
-
Can this switch fit standard 25mm back boxes?
Yes, minimum 25mm back box depth required. Standard single gang metal boxes accommodate the switch with adequate space for cable terminations and connections.
-
What cable size connects to the screw terminals?
Terminals accommodate up to 3 x 2.5mm² solid conductors per terminal with 1.8Nm torque specification. Use 2.5mm² T&E cable for 20A circuit installations.
-
Does the neon indicator show switch position?
Red neon indicator illuminates when switch is in ON position, providing clear visual confirmation for high-current appliance isolation during maintenance or emergency situations.
-
Is this switch suitable for outdoor installations?
IP20 rating limits use to dry indoor locations. For outdoor or wet areas, specify weatherproof enclosures or higher IP-rated switches with appropriate protection.
