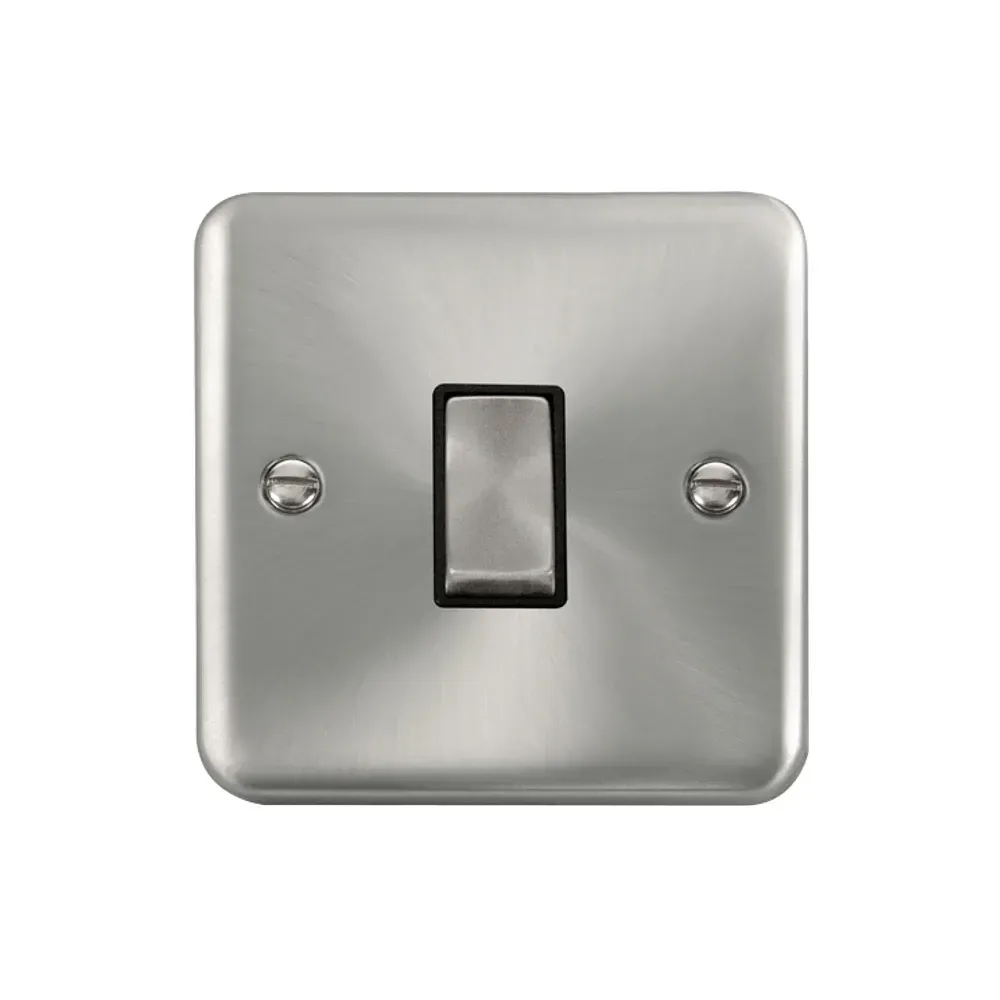

Click DPSC411BK satin chrome 1 gang 2 way plate switch

Photo is representative

Click DPSC411BK Satin Chrome 10AX 1 Gang 2 Way Plate Switch BS EN 60669-1

Professional 10AX 1 gang 2 way plate switch from Click’s Ingot range featuring premium satin chrome finish with black insert. Built for inductive loads including fluorescent lighting circuits with screw terminals rated at 0.5Nm torque. Requires 16mm minimum back box depth with 60.3mm fixing centres. Terminal capacity accommodates 4 x 1.5mm² or 2 x 2.5mm² cables through Ø3.5mm brass terminals with yellow passivated steel screws. Stainless steel front plate with urea insert provides durability. Complies with BS EN 60669-1 standard with IP20 rating for domestic installations. UKCA marked with 20-year warranty. Compatible with Click MiniGrid modular system for custom configurations. Operating temperature range -5°C to +40°C suitable for UK installations.

Stock Code: DPSC411BK

Online:

In stock
Price 9.95 £
incl. VAT, 20% priced individually

Product Features

Current Rating 10AX inductive loads
Gang Configuration 1 Gang 2 Way switching
Terminal Type Screw terminals Ø3.5mm
Terminal Capacity 4 x 1.5mm² or 2 x 2.5mm²
Terminal Torque 0.5 Nm specification
Mounting Depth 16mm minimum back box
Plate Dimensions 88 x 88 x 8mm (91 x 91 x 9mm with gasket)
Fixing Centres 60.3mm horizontal spacing
Finish Style Satin Chrome with Black Insert
Front Plate Material Stainless Steel construction
Standards Compliance BS EN 60669-1, IP20 rated
Operating Voltage 250V AC, 50Hz
Load Suitability Fluorescent and inductive loads
Brand Quality Click Scolmore Group, 20-year warranty

Installation Guidelines

Terminal Connection

Ø3.5mm brass terminals with steel screws. Torque to 0.5Nm for secure connection. Accommodates 4 x 1.5mm² or 2 x 2.5mm² conductors safely.

Mounting Requirements

16mm minimum back box depth with 60.3mm horizontal fixing centres. Plate dimensions 88 x 88 x 8mm, 91 x 91 x 9mm with gasket.

Earth Connection

Mild steel earth strap provided. Bare earth cables must be sleeved green/yellow and terminated at designated earth terminal for safety compliance.

Applications & Uses

Lighting Control

10AX rating suitable for fluorescent and inductive lighting loads. Two-way switching for stairway, hallway, and room lighting control applications.

Commercial Installations

Premium satin chrome finish suitable for offices, retail, and commercial environments requiring durable, professional appearance switching solutions.

Modular Systems

Compatible with Click MiniGrid range for custom switching configurations. Single width module allows flexible installation arrangements in multi-gang plates.

Standards & Safety

  • British Standards Complies with BS EN 60669-1 for household switches. UKCA marked with UK design registration 3015621 for regulatory compliance assurance.
  • Operating Conditions IP20 rated for dry internal locations. Operating temperature range -5°C to +40°C suitable for standard UK domestic and commercial installations.

Frequently Asked Questions

  • What back box depth is required for the DPSC411BK switch?

    Minimum 16mm back box depth required. Standard 25mm boxes provide adequate space for cable termination and the 8mm plate depth.

  • Can this switch handle fluorescent and LED lighting circuits?

    Yes, rated 10AX for inductive loads including LED and fluorescent circuits. Suitable for lighting circuits using 1.5mm² cable with appropriate circuit protection.

  • What cable sizes fit the screw terminals?

    Terminals accommodate 4 x 1.5mm² or 2 x 2.5mm² cables. Ø3.5mm terminal size with 0.5Nm torque specification for secure connections.

  • Is the DPSC411BK compatible with metal back boxes?

    Yes, includes mild steel earth strap for metal box installations. Bare earth cables must be sleeved and terminated at earth terminal.

  • What's the difference between this and a 13A socket switch?

    This is a 10AX plate switch for lighting circuits, not a 13A socket. Designed for switching loads rather than providing outlet power.
