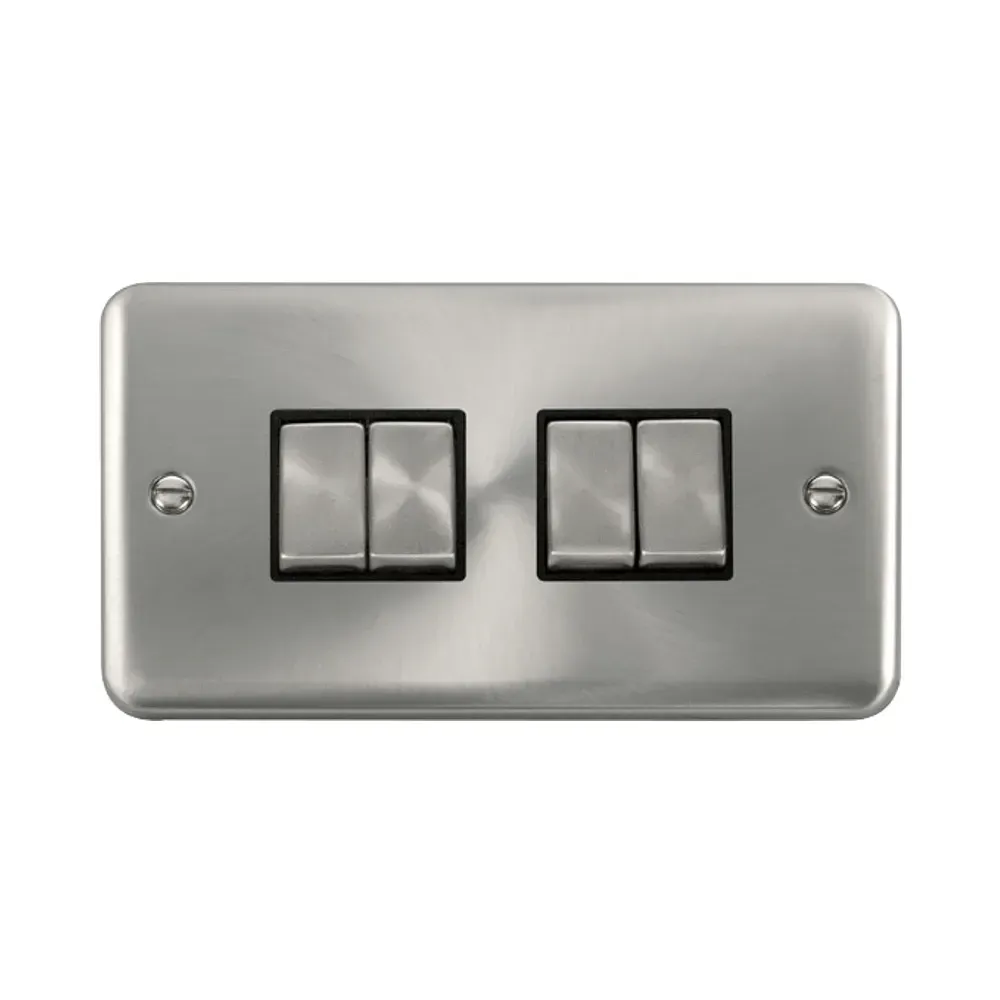

Photo is representative
Click DPSC414BK Satin Chrome 10AX 4 Gang 2 Way Plate Switch
The Click DPSC414BK delivers professional-grade switching with 10AX inductive load capability for LED, fluorescent and motor circuits. This 4 gang 2 way plate switch features screw terminals with 0.5Nm torque specification and 4x1.5mm² or 2x2.5mm² capacity for flexible circuit design. Constructed with stainless steel front plate and satin chrome finish for durability in commercial installations. BS EN 60669-1 compliant with IP20 protection rating. Compatible with standard 25mm back box depth and MiniGrid modular system. 20-year manufacturer warranty provides long-term reliability for professional electrical contractors. Silver overlay contacts ensure consistent performance across the -5 to +40°C operational range.
Online:
Product Features
| Current Rating | 10AX Inductive Load |
|---|---|
| Gang Configuration | 4 Gang 2 Way |
| Terminal Type | Screw Terminals Ø3.5mm |
| Terminal Capacity | 4 x 1.5mm² or 2 x 2.5mm² |
| Terminal Torque | 0.5Nm |
| Back Box Depth | 25mm Minimum |
| Standards Compliance | BS EN 60669-1 |
| IP Rating | IP20 |
| Operating Voltage | 250V AC 50Hz |
| Finish | Satin Chrome with Black Insert |
| Material | Stainless Steel Front Plate |
| Operating Temperature | -5 to +40°C |
| MiniGrid Compatible | 2 x 2 Single Width Modules |
| Warranty | 20 Years |
Installation Guidelines
Terminal Configuration
Screw terminals with Ø3.5mm capacity accommodate 4 x 1.5mm² or 2 x 2.5mm² conductors. Torque to 0.5Nm using appropriate screwdriver.
Back Box Requirements
Minimum 25mm depth required for proper installation. Plate fixing centres at 120.6mm horizontal spacing for standard mounting.
MiniGrid Compatibility
Interchangeable with MiniGrid range modules. 2 gang plate accommodates 2 x 2 single width or 2 double width modules.
Applications & Uses
Inductive Load Circuits
10AX rating handles fluorescent lighting, LED drivers and small motor loads safely within 250V AC 50Hz parameters.
Commercial Installations
Stainless steel construction and satin chrome finish suitable for office, retail and light industrial environments requiring durability.
Multi-Gang Control
4 gang 2 way configuration provides comprehensive switching control for complex lighting schemes and circuit arrangements.
Standards & Safety
- BS EN 60669-1 Compliance Meets British and European standards for switches with IP20 ingress protection suitable for indoor dry locations.
- Temperature Range Operational temperature range -5 to +40°C covers standard UK installation environments with reliable performance throughout seasons.
Frequently Asked Questions
-
What is the minimum back box depth for the DPSC414BK?
Requires 25mm minimum back box depth. Standard metal back boxes are suitable for installation with adequate terminal access space.
-
Can this switch handle LED or fluorescent lighting circuits?
Yes, 10AX rating specifically designed for inductive loads including fluorescent tubes, LED drivers and small motor applications up to 250V AC.
-
What terminal capacity does the DPSC414BK support?
Screw terminals accept 4 x 1.5mm² conductors or 2 x 2.5mm² conductors with 0.5Nm torque specification for secure connections.
-
Is the DPSC414BK compatible with MiniGrid modules?
Yes, interchangeable with Click MiniGrid range modules. Accepts 2 x 2 single width modules or 2 double width modules.
-
What standards does this switch comply with?
Meets BS EN 60669-1 standards with IP20 ingress protection. UK Design Registration 3015621 confirms compliance with British electrical regulations.
