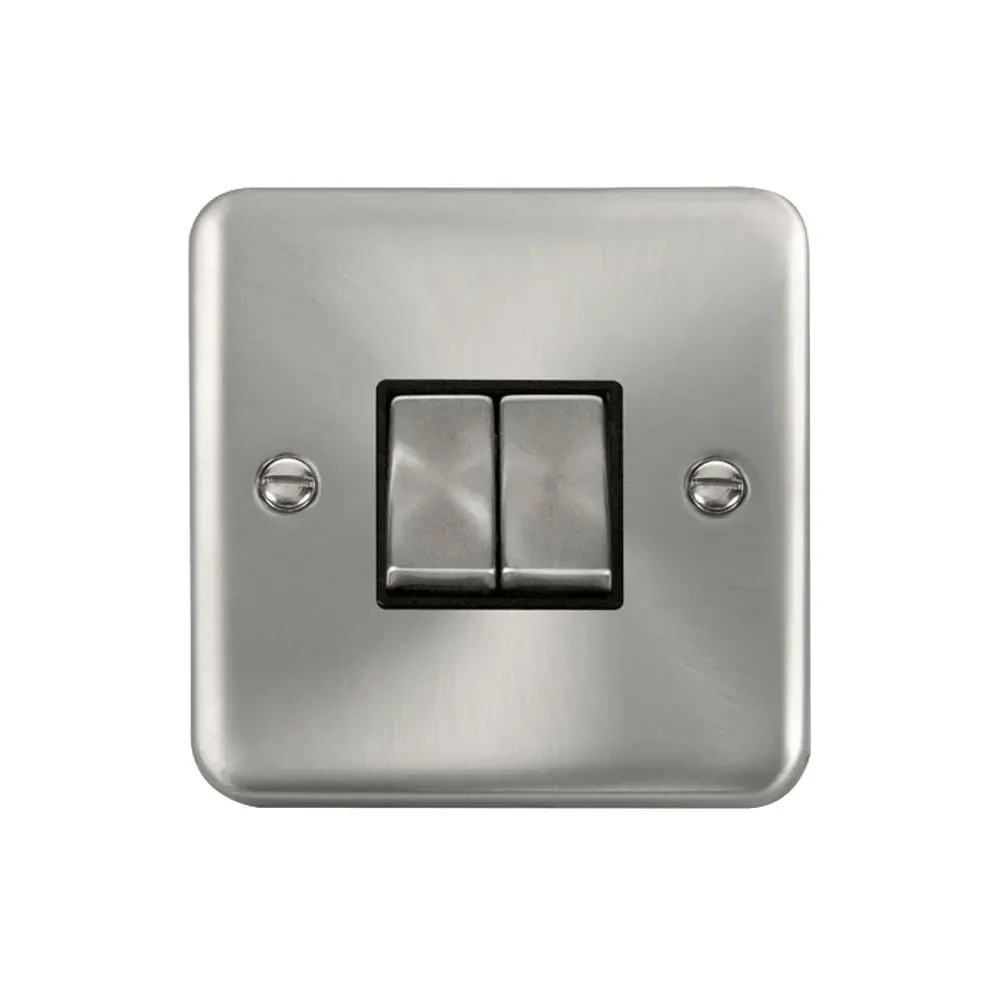

Click DPSC412BK satin chrome 2 gang 2 way switch professional installation

Photo is representative

Click DPSC412BK Satin Chrome 10AX 2 Gang 2 Way Switch Black Insert

Professional quality Click DPSC412BK 2 gang 2 way switch rated 10AX for fluorescent and inductive loads. Premium satin chrome finish with black insert delivers commercial-grade durability. Features captive screw terminals with angled access for efficient cable dressing. Requires minimum 16mm back box depth with standard 60.3mm fixing centres. BS EN 60669-1 compliant with IP20 rating. Brass terminals handle 4 x 1.5mm² or 2 x 2.5mm² conductors at 0.5Nm torque. Interchangeable with Click MiniGrid modules for flexible installation options. Earth terminal with mild steel strap ensures reliable protective connection.

Stock Code: DPSC412BK

Online:

In stock
Price 11.31 £
incl. VAT, 20% priced individually

Product Features

Current Rating 10AX Inductive Load Rating
Gang Configuration 2 Gang
Switch Type 2 Way Switch
Terminal Type Captive Screw Terminals
Terminal Capacity 4 x 1.5mm² or 2 x 2.5mm²
Terminal Size Ø3.5mm
Terminal Torque 0.5 Nm
Mounting Depth 16mm Minimum Back Box
Fixing Centres 60.3mm Horizontal
Standards Compliance BS EN 60669-1
IP Rating IP20
Finish Satin Chrome with Black Insert
Earth Connection Earth Terminal with Steel Strap
Module Compatibility MiniGrid Range Interchangeable

Installation Requirements

Terminal Configuration

Captive screw terminals with Ø3.5mm size accommodate multiple conductor combinations at professional 0.5Nm torque specifications for reliable long-term connections.

Mounting Specifications

Standard 60.3mm fixing centres with 16mm minimum back box depth requirement ensures compatibility with existing electrical installations.

Earth Connection

Dedicated earth terminal with mild steel earth strap provides reliable protective earthing for metal back box installations.

Professional Applications

Inductive Load Switching

10AX rating specifically designed for fluorescent and inductive loads in commercial and industrial lighting control applications.

2 Way Control

Standard 2 way switching configuration enables control from two locations, ideal for corridor and stairway lighting installations.

Standards & Safety

  • BS Compliance Manufactured to BS EN 60669-1 standard ensuring electrical safety and performance reliability for professional electrical installations.
  • IP20 Protection IP20 ingress protection rating suitable for indoor dry locations with operational temperature range -5°C to +40°C.

Frequently Asked Questions

  • What cable capacity do the terminals accept?

    Terminals accept 4 x 1.5mm² or 2 x 2.5mm² conductors with Ø3.5mm screw terminals at 0.5Nm torque setting for secure professional connections.

  • What minimum back box depth is required?

    Requires minimum 16mm back box depth with standard 60.3mm horizontal fixing centres, suitable for most standard electrical back boxes.

  • Is this switch suitable for LED or fluorescent loads?

    Yes, rated 10AX for LED, fluorescent and inductive loads at 250V AC 50Hz, making it ideal for commercial lighting circuits.

  • What standards does this switch comply with?

    Complies with BS EN 60669-1 standard with IP20 rating for indoor installations, UK Design Registration 3015621 for quality assurance.

  • Can I use MiniGrid modules with this switch?

    Yes, fully interchangeable with Click MiniGrid Range modules, accommodating 2 single width or 1 double width module for flexible configurations.
