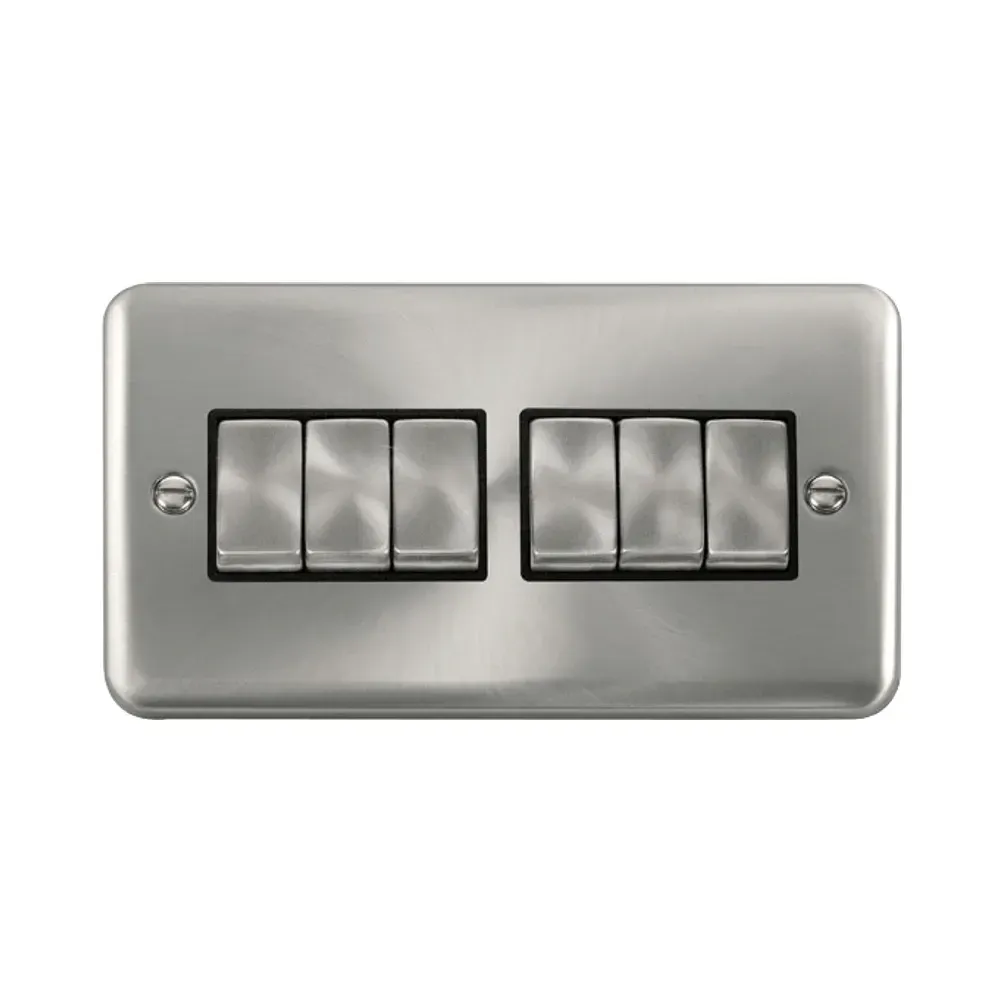

Photo is representative
Click Deco+ Satin Chrome 10AX 6 Gang 2 Way Plate Switch Black, DPSC416BK
10AX 6 gang 2 way plate switch in satin chrome finish with black inserts. Features screw terminals with 0.5 Nm torque specification, accommodating 4 x 1.5mm² or 2 x 2.5mm² solid conductors. Compact 25mm minimum back box depth requirement with 146mm x 88mm plate dimensions. Suitable for inductive loads including fluorescent circuits. Brass terminals with steel screws provide reliable connections for commercial and domestic installations. MiniGrid compatible modular design allows flexible configuration with interchangeable modules. BS EN 60669-1 compliant with IP20 rating for indoor applications. 20-year manufacturer warranty ensures long-term reliability for professional electrical installations.
Online:
Product Features
| Current Rating | 10AX Inductive Load |
|---|---|
| Gang Configuration | 6 Gang |
| Switching Type | 2 Way |
| Operating Voltage | 250V AC 50Hz |
| Terminal Type | Screw Terminals Ø3.5mm |
| Terminal Capacity | 4 x 1.5mm² or 2 x 2.5mm² solid |
| Terminal Torque | 0.5 Nm |
| Minimum Back Box Depth | 25mm |
| Plate Dimensions | 146mm (W) x 88mm (H) x 8mm (D) |
| Finish | Satin Chrome with Black Insert |
| Standards Compliance | BS EN 60669-1 |
| IP Rating | IP20 |
| MiniGrid Compatible | 2 x 3 Single Width Modules |
| Warranty | 20 Years |
Installation Requirements
Back Box Specification
25mm minimum depth required with 120.6mm horizontal fixing centres. Compatible with standard metal back boxes for secure mounting.
Terminal Configuration
Brass screw terminals with steel yellow passivated screws. Ø3.5mm terminal size with 0.5 Nm torque specification for reliable connections.
Technical Specifications
Load Compatibility
10AX inductive load rating suitable for LED, fluorescent circuits and other inductive loads up to 250V AC at 50Hz frequency.
Construction Materials
Stainless steel front plate with urea insert, nylon rear housing, and brass internal components. Silver on-lay copper/brass contacts ensure durability.
MiniGrid System
Modular Flexibility
Compatible with Click MiniGrid range allowing module interchange. 2-gang plate accommodates 2 x 3 single width or 2 double width modules.
Professional Applications
Ideal for commercial and domestic installations requiring flexible switching configurations with professional satin chrome finish and black inserts.
Frequently Asked Questions
-
What back box depth is required for the DPSC416BK switch?
Minimum 25mm back box depth required. Plate dimensions are 146mm wide x 88mm high x 8mm deep, with gasket dimensions 149mm x 91mm x 9mm.
-
What cable sizes can the screw terminals accommodate?
Terminals accept 4 x 1.5mm² or 2 x 2.5mm² solid conductors. Screw terminals are Ø3.5mm with 0.5 Nm torque specification for secure connections.
-
Is this switch suitable for LED and fluorescent lighting circuits?
Yes, the 10AX rating is specifically designed for inductive loads including fluorescent, LED, and other inductive circuits up to 250V AC.
-
Can modules be changed after installation?
Yes, MiniGrid compatible design allows interchangeable modules. Accepts 2 x 3 single width modules or 2 double width modules for flexible configuration.
-
What standards does this switch comply with?
BS EN 60669-1 compliant with IP20 rating for indoor use. Operating temperature range -5°C to +40°C with 20-year manufacturer warranty.
