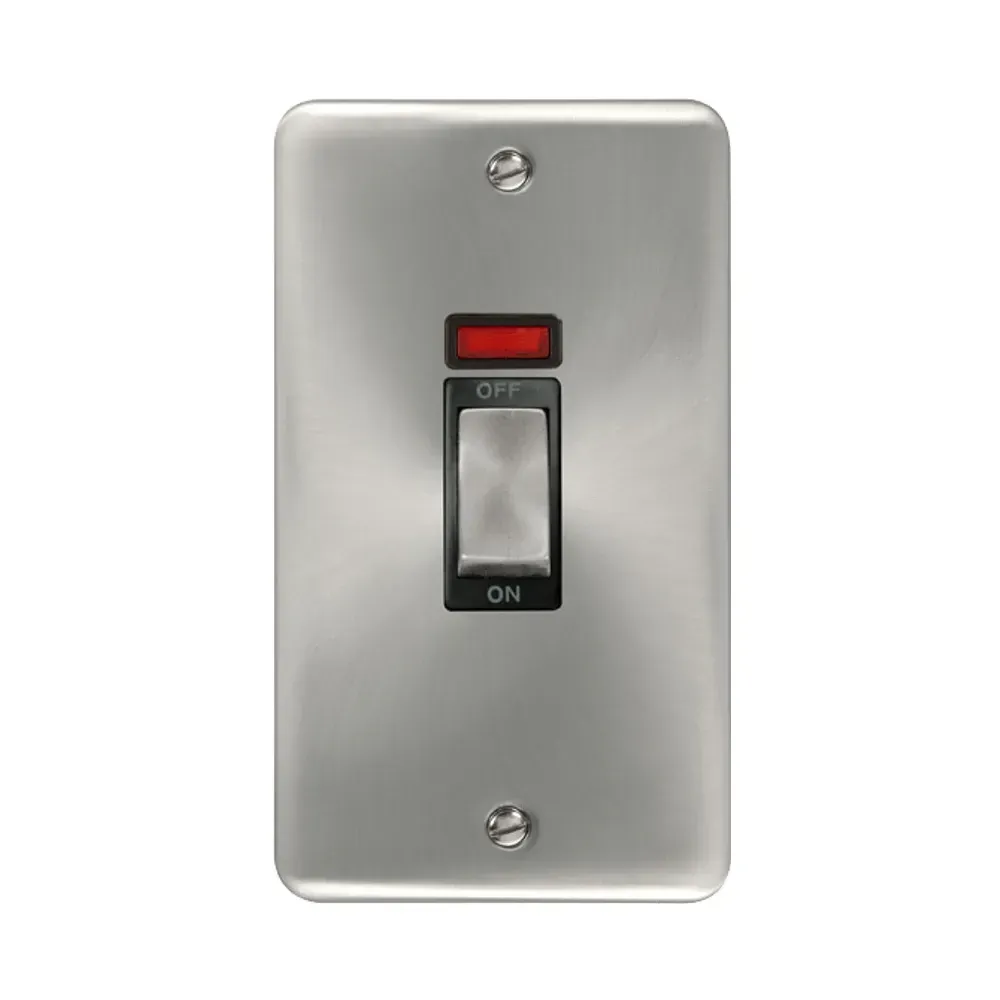

Click DPSC503BK 50A double pole switch with red neon indicator

Photo is representative

Click Deco+ Satin Chrome 50A 2 Gang Double Pole Switch With Neon BS EN 60669

Professional 50A high-current double pole switch designed for electric showers and high-load appliances. Features vertical 2-gang configuration with neon indicator for clear operational status. Screw terminals accept 16mm² conductors with 2.5Nm torque rating for secure connections. Manufactured to BS EN 60669-1 standards with IP20 protection. Satin chrome finish with black inserts provides professional appearance. Twin earth terminals and 35mm minimum backbox depth ensure compliant installation. 20-year warranty demonstrates Click’s commitment to quality. Essential for qualified electricians installing high-current circuits requiring reliable switching control with clear visual indication.

Stock Code: DPSC503BK

Online:

In stock
Price 20.11 £
incl. VAT, 20% priced individually

Product Features

Current Rating 50A Double Pole
Gang Configuration 2 Gang Vertical Layout
Switch Type Double Pole Plate Switch
Visual Indication Red Neon Indicator Light
Terminal Type Screw Terminals Ø6mm
Terminal Capacity 1 x 16mm² Solid Conductor
Terminal Torque 2.5Nm Specified
Earth Configuration Twin Earth Terminals
Mounting Requirements 35mm Minimum Backbox Depth
Operating Voltage 250V AC 50Hz
Standards Compliance BS EN 60669-1 Certified
IP Protection IP20 Indoor Rating
Finish Satin Chrome with Black Insert
Warranty Period 20 Years Manufacturer Coverage

High Current Applications

Electric Showers

Primary application for 50A rating with double pole isolation ensuring complete disconnection of high-power shower units during maintenance or emergency situations.

Industrial Appliances

Suitable for commercial kitchen equipment, industrial heaters, and other high-load appliances requiring reliable 50A switching capacity with visual indication.

Storage Heaters

Ideal for controlling large capacity storage heaters and immersion heaters where 50A switching capability and positive isolation are essential safety requirements.

Professional Installation

Terminal Configuration

Screw terminals with Ø6mm capacity accept 16mm² conductors. 2.5Nm torque specification ensures gas-tight connections for reliable high-current switching performance.

Mounting Requirements

Requires 35mm minimum depth backbox with 120.6mm vertical fixing centres. Twin earth terminals provide secure protective conductor connections for safety compliance.

Cable Management

Adequate space required for 16mm² T&E cables. Professional installation ensures proper conductor preparation and secure termination for long-term reliability.

Safety & Standards

BS EN 60669 Compliance

Manufactured to British and European standards for switches with comprehensive testing for high-current applications and long-term reliability in professional installations.

Double Pole Isolation

Switches both live and neutral conductors simultaneously providing complete circuit isolation essential for high-current appliance safety and maintenance access.

IP20 Protection

Suitable for indoor dry locations with protection against solid objects. Operating temperature range -5°C to +40°C covers typical installation environments.

Frequently Asked Questions

  • What cable size does this 50A switch accommodate?

    Terminal capacity is 1 x 16mm² solid conductor per terminal with Ø6mm screw terminals and 2.5Nm torque specification for secure high-current connections.

  • What backbox depth is required for installation?

    Minimum 35mm backbox depth required to accommodate the switch mechanism and provide adequate space for 16mm² conductors and safe cable management.

  • Is this switch suitable for electric shower circuits?

    Yes, designed specifically for 50A high-current applications including electric showers. Double pole switching isolates both live and neutral for enhanced safety.

  • What does the neon indicator show?

    Red neon indicator provides clear visual confirmation when the switch is in the ON position, essential for high-current appliance status verification.

  • Does this comply with current wiring regulations?

    Manufactured to BS EN 60669-1 standards with IP20 protection rating. Twin earth terminals ensure compliance with UK wiring regulations for high-current circuits.
