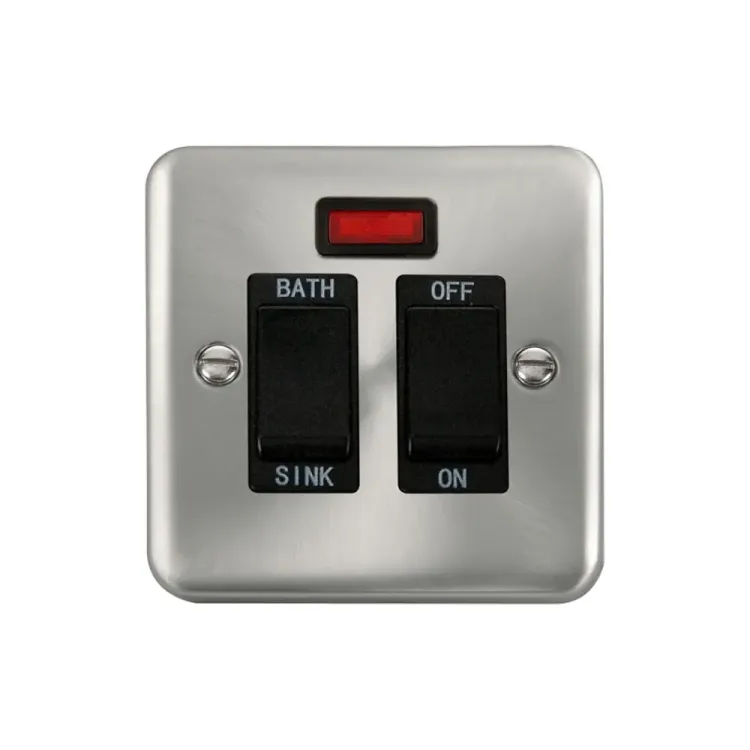

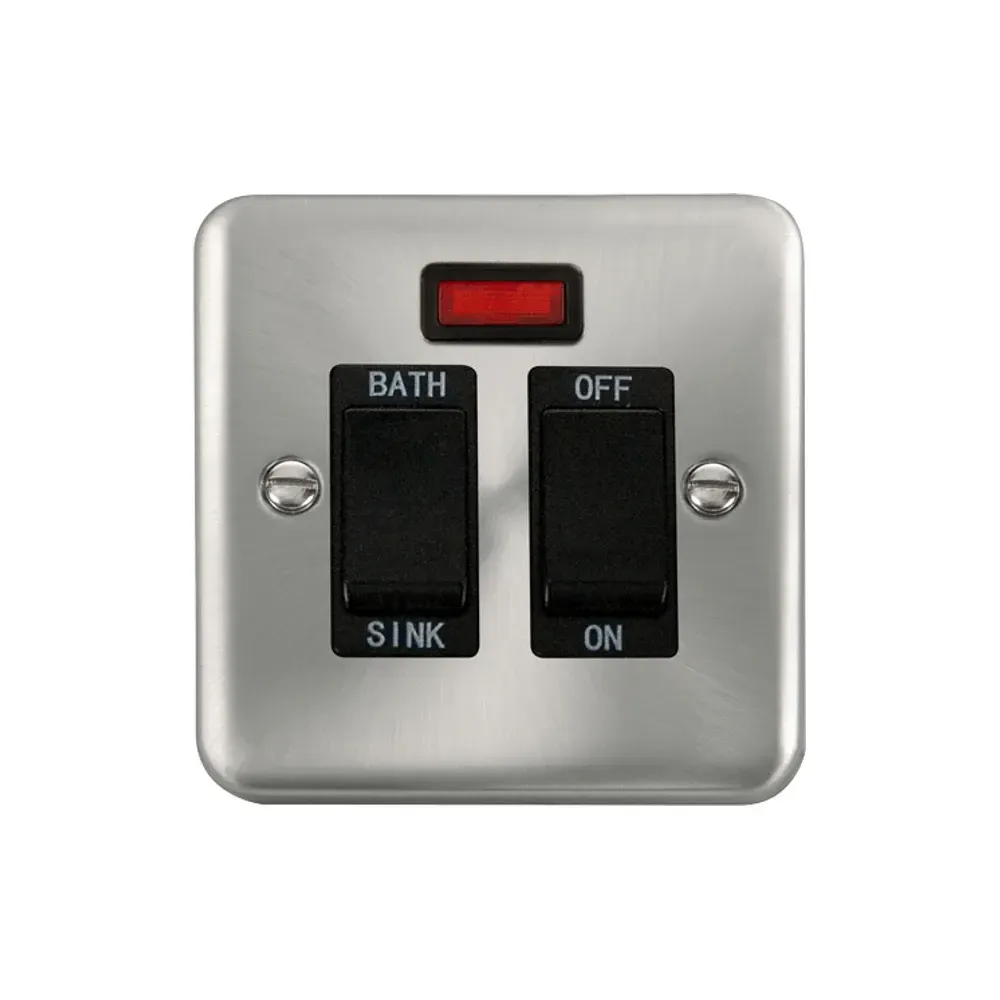

Click DECO+ 20A double pole sink bath switch satin chrome finish

Photo is representative

Click DECO+ Satin Chrome 20A Double Pole Sink Bath Switch With Neon BS EN 60669-1

Professional 20A double pole switch designed for sink and bath circuits with red neon indicator. Features robust screw terminals with 1.8Nm torque rating for secure connections in wet area applications. Twin earth terminals ensure safety compliance with BS EN 60669-1 standards.

Satin chrome finish with black insert provides premium aesthetics in modern kitchens and bathrooms. Captive screw terminals accept 3 x 2.5mm² solid conductors with easy cable dressing. Requires 25mm minimum back box depth for standard installation.

Operates at 250V AC with IP20 protection rating. Clearly marked On/Off/Bath/Sink positions eliminate confusion during emergency shutoff. 20-year warranty provides long-term reliability for professional installations.

Stock Code: DPSC024BK

Online:

In stock
Price 17.90 £
incl. VAT, 20% priced individually

Product Features

Current Rating 20A at 250V AC
Switch Type Double Pole (DP) switching
Gang Configuration Single Gang
Neon Indicator Red indicator light
Terminal Type Captive screw terminals Ø5mm
Terminal Capacity 3 x 2.5mm² solid conductors
Terminal Torque 1.8Nm specification
Earth Configuration Twin earth terminals
Mounting Depth 25mm minimum back box
Standards BS EN 60669-1 compliant
IP Rating IP20 protection
Finish Satin Chrome with Black insert
Warranty 20 years manufacturer warranty
Product Marking On, Off, Bath, Sink positions

Professional Installation

Terminal Access

Captive screw terminals with Ø5mm capacity provide secure connection for 3 x 2.5mm² conductors. 1.8Nm torque specification ensures professional installation standards.

Back Box Requirements

25mm minimum depth metal back box with earth terminals. Standard 60.3mm horizontal fixing centres compatible with existing installations.

Cable Preparation

Strip conductors to appropriate length for screw terminals. Twin earth terminals accommodate ring circuit and switch drop connections safely.

Safety Standards

  • BS EN 60669-1 Fully compliant with latest switch standards. UK Design Registration 3015621 confirms quality and safety for professional electrical installations.
  • Double Pole Protection Complete isolation of both live and neutral conductors. Essential safety requirement for wet area switching applications in kitchens and bathrooms.
  • Operating Limits Rated 20A at 250V AC, 50Hz frequency. Operating temperature range -5°C to +40°C suitable for UK domestic environments.

Applications

Kitchen Sinks

Primary application for kitchen sink waste disposal units and under-sink appliances requiring 20A switching capacity with emergency isolation capability.

Bathroom Installations

Bath pump circuits and high-power bathroom appliances. Double pole switching ensures complete isolation for maintenance and safety compliance.

Utility Areas

Washing machine circuits, dishwashers, and other 20A appliances where local isolation switching required. Neon indicator confirms circuit status.

Frequently Asked Questions

  • What back box depth is required for DPSC024BK installation?

    Minimum 25mm back box depth required. Standard metal back box with earth terminals suitable for professional installation with 3 x 2.5mm² conductors.

  • Is double pole switching mandatory for sink and bath circuits?

    Yes, double pole switching provides complete isolation of both live and neutral conductors, essential for safety in wet areas per wiring regulations.

  • What cable specification is required for 20A switching?

    3 x 2.5mm² twin and earth cable minimum. Terminals accept solid conductors with 1.8Nm torque setting for secure professional connections.

  • Does the neon indicator operate when switch is on or off?

    Red neon indicator illuminates when switch is in ON position, providing clear visual confirmation of circuit status for safety.

  • Is DPSC024BK suitable for outdoor installation?

    No, IP20 rating suitable for dry indoor locations only. Use IP66 rated switches for outdoor or exposed wet area applications.
