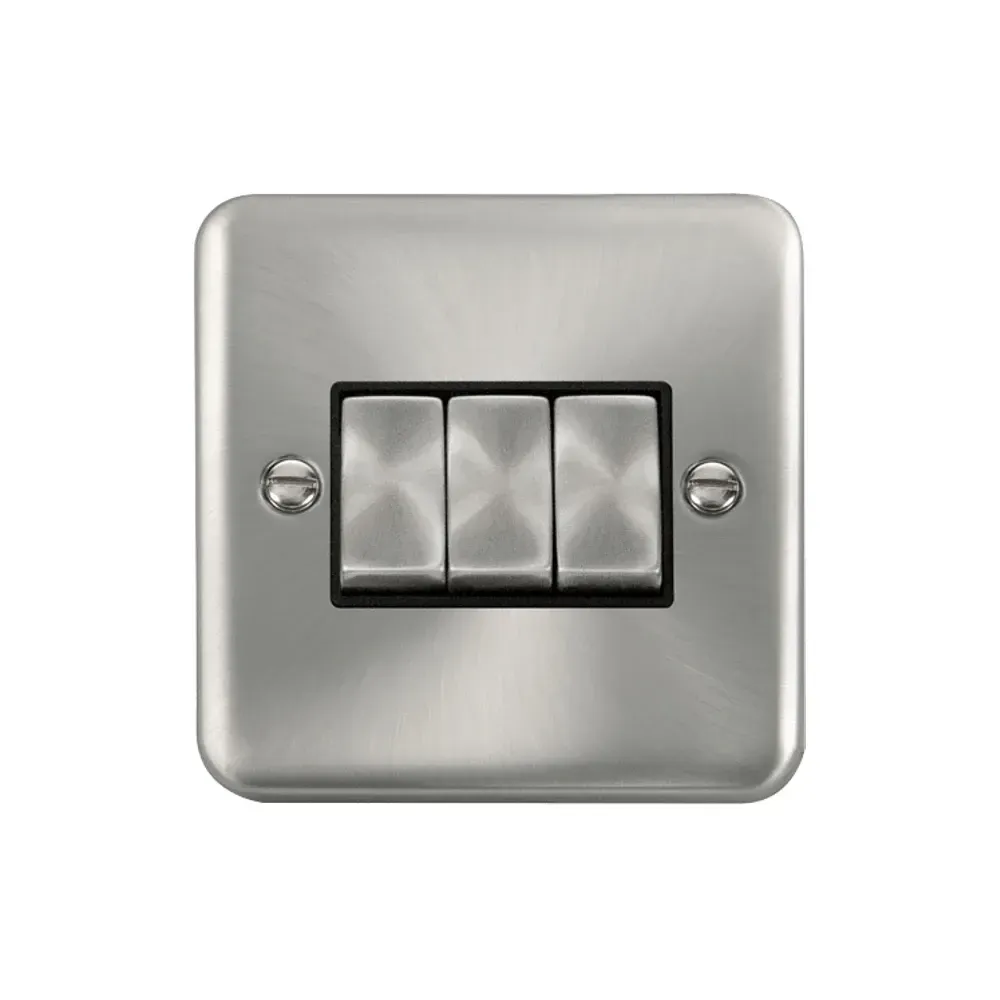

Click DECO Plus Satin Chrome 10AX 3 Gang 2 Way Plate Switch Black Insert, DPSC413BK
Professional 10AX 3 gang 2 way plate switch from Click’s DPSC range with satin chrome finish and black insert. Features screw terminals with 0.5 Nm torque capacity, suitable for inductive loads including fluorescent circuits. Requires minimum 16mm backbox depth with 60.3mm horizontal fixing centres. Accommodates 4 x 1.5mm² or 2 x 2.5mm² solid conductors via Ø3.5mm terminals. BS EN 60669-1 compliant with IP20 rating for indoor installations. Compatible with MiniGrid modular system featuring interchangeable modules. Stainless steel construction with 20-year warranty provides long-term reliability for commercial and domestic applications.
Online:
Product Features
| Current Rating | 10AX Inductive Load Rating |
|---|---|
| Gang Configuration | 3 Gang |
| Switching Type | 2 Way |
| Terminal Type | Screw Terminals |
| Terminal Capacity | 4 x 1.5mm² or 2 x 2.5mm² Solid Conductors |
| Terminal Size | Ø3.5mm |
| Terminal Torque | 0.5 Nm |
| Mounting Depth | 16mm Minimum Backbox |
| Fixing Centres | 60.3mm Horizontal |
| Standards Compliance | BS EN 60669-1 |
| IP Rating | IP20 |
| Finish | Satin Chrome with Black Insert |
| MiniGrid Compatible | Interchangeable with MiniGrid Range |
| Warranty | 20 Years |
Installation Guidelines
Terminal Configuration
Screw terminals with 0.5 Nm torque specification provide secure connections for 4 x 1.5mm² or 2 x 2.5mm² solid conductors.
Mounting Requirements
Requires minimum 16mm backbox depth with 60.3mm horizontal fixing centres for proper installation and cable management.
Professional Applications
Inductive Load Switching
10AX rating specifically designed for fluorescent lighting and other inductive loads in commercial and domestic installations.
Modular System Integration
Compatible with MiniGrid Range allowing flexible configurations with 3 single-width or 1 double-width module combinations.
Standards & Safety
- BS EN 60669-1 Compliance Meets European standards for switches with IP20 rating suitable for indoor dry location installations only.
Frequently Asked Questions
-
What backbox depth is required for the DPSC413BK switch?
Minimum 16mm backbox depth required with 60.3mm horizontal fixing centres for secure mounting and proper cable management.
-
Can this switch handle LED or fluorescent lighting loads?
Yes, the 10AX rating specifically indicates suitability for inductive loads including fluorescent and other inductive lighting circuits.
-
What cable sizes fit the screw terminals?
Terminals accommodate 4 x 1.5mm² or 2 x 2.5mm² solid conductors with Ø3.5mm terminal size and 0.5 Nm torque specification.
-
Is the DPSC413BK compatible with other MiniGrid modules?
Yes, fully interchangeable with modules in the MiniGrid Range allowing flexible configurations for varied installation requirements.
-
What standards does this switch comply with?
BS EN 60669-1 compliant with IP20 rating for indoor installations, backed by Click's 20-year warranty for professional confidence.
